Bag Flow Aids
Bag massagers and deblocking
devices are necessary for materials
that pack above the discharge spout
or become severely agglomerated
when stored in bulk bags. They are
designed to continuously induce
material flow through the discharge
spout of the bag.

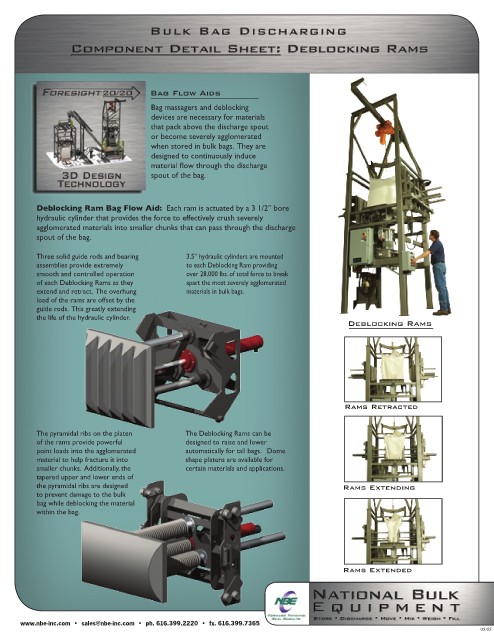

Deblocking Ram Bag Flow Aid: Each ram is actuated by a 3 1/2” bore
hydraulic cylinder that provides the force to effectively crush severely
agglomerated materials into smaller chunks that can pass through the discharge
spout of the bag.

Three solid guide rods and bearing 3.5” hydraulic cylinders are mounted
assemblies provide extremely to each Deblocking Ram providing
smooth and controlled operation over 28,000 lbs. of total force to break
of each Deblocking Rams as they apart the most severely agglomerated
extend and retract. The overhung materials in bulk bags.
load of the rams are offset by the
guide rods. This greatly extending
the life of the hydraulic cylinder.
Deblocking Rams

Rams Retracted

The pyramidal ribs on the platen The Deblocking Rams can be
of the rams provide powerful designed to raise and lower
point loads into the agglomerated automatically for tall bags. Dome
material to help fracture it into shape platens are available for
smaller chunks. Additionally, the certain materials and applications.
tapered upper and lower ends of
the pyramidal ribs are designed Rams Extending
to prevent damage to the bulk
bag while deblocking the material
within the bag.

Rams Extended

www.nbe-inc.com • sales@nbe-inc.com • ph. 616.399.2220 • fx. 616.399.7365
