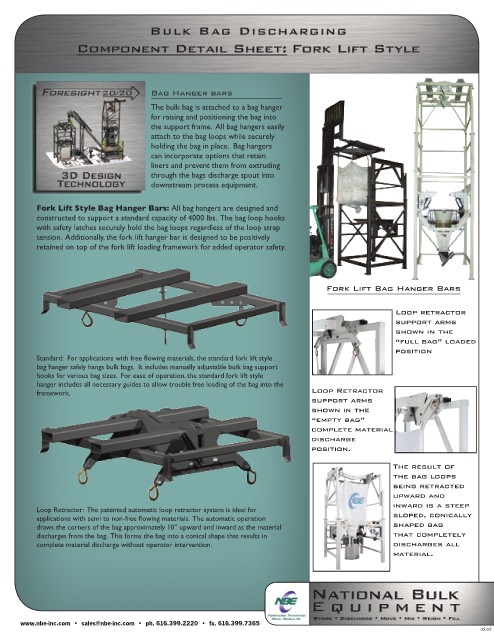

Bag Hanger bars
The bulk bag is attached to a bag hanger
for raising and positioning the bag into
the support frame. All bag hangers easily
attach to the bag loops while securely
holding the bag in place. Bag hangers
can incorporate options that retain
liners and prevent them from extruding
through the bags discharge spout into
downstream process equipment.

Fork Lift Style Bag Hanger Bars: All bag hangers are designed and
constructed to support a standard capacity of 4000 lbs. The bag loop hooks
with safety latches securely hold the bag loops regardless of the loop strap
tension. Additionally, the fork lift hanger bar is designed to be positively
retained on top of the fork lift loading framework for added operator safety.

Fork Lift Bag Hanger Bars

Loop retractor
support arms
shown in the
“full bag” loaded
position
Standard: For applications with free flowing materials, the standard fork lift style
bag hanger safely hangs bulk bags. It includes manually adjustable bulk bag support
hooks for various bag sizes. For ease of operation, the standard fork lift style
hanger includes all necessary guides to allow trouble free loading of the bag into the
framework. Loop Retractor
support arms
shown in the
“empty bag”
complete material
discharge
position.

The result of
the bag loops
being retracted
upward and
inward is a steep
Loop Retractor: The patented automatic loop retractor system is ideal for
applications with semi to non-free flowing materials. The automatic operation sloped, conically
draws the corners of the bag approximately 10” upward and inward as the material shaped bag
discharges from the bag. This forms the bag into a conical shape that results in that completely
complete material discharge without operator intervention. discharges all
material.
