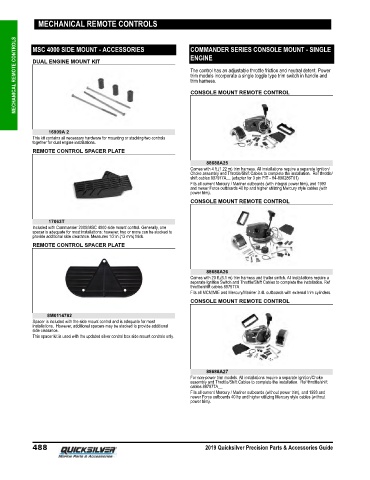

Page 495 - Quicksilver Accesories Guide 2019

MECHANICAL REMOTE CONTROLS

MECHANICAL REMOTE CONTROLS MSC 4000 SIDE MOUNT - ACCESSORIES COMMANDER SERIES CONSOLE MOUNT - SINGLE

ENGINE
DUAL ENGINE MOUNT KIT
The control has an adjustable throttle friction and neutral detent. Power
trim models incorporate a single toggle type trim switch in handle and
trim harness.
CONSOLE MOUNT REMOTE CONTROL

16909A 2
This kit contains all necessary hardware for mounting or stacking two controls
together for dual engine installations.
REMOTE CONTROL SPACER PLATE

88688A25
Comes with 4 ft.(1.22 m) trim harness. All installations require a separate Ignition/
Choke assembly and Throttle/Shift Cables to complete the installation. Ref throttle/
shift cables 897977A__ (adapter for 3 pin P/T ‑ 84‑898286T01)
Fits all current Mercury / Mariner outboards (with integral power trim), and 1993
and newer Force outboards 40 hp and higher utilizing Mercury style cables (with
power trim).
CONSOLE MOUNT REMOTE CONTROL

17063T
Included with Commander 2000/MSC 4000 side mount control. Generally, one
spacer is adequate for most installations: however, two or more can be stacked to
provide additional side clearance. Measures 1/2 in.(13 mm) thick.
REMOTE CONTROL SPACER PLATE

88688A26
Comes with 20 ft.(6.1 m) trim harness and trailer switch. All installations require a
separate Ignition Switch and Throttle/Shift Cables to complete the installation. Ref
throttle/shift cables 897977A__
Fits all MCM/MIE and Mercury/Mariner 3.4L outboards with external trim cylinders.
CONSOLE MOUNT REMOTE CONTROL
8M0114782
Spacer is included with the side mount control and is adequate for most
installations. However, additional spacers may be stacked to provide additional
side clearance.
This spacer kit is used with the updated silver control box side mount controls only.

88688A27
For non‑power trim models. All installations require a separate Ignition/Choke
assembly and Throttle/Shift Cables to complete the installation. Ref throttle/shift
cables 897977A__
Fits all current Mercury / Mariner outboards (without power trim), and 1993 and
newer Force outboards 40 hp and higher utilizing Mercury style cables (without
power trim).

488 2019 Quicksilver Precision Parts & Accessories Guide
