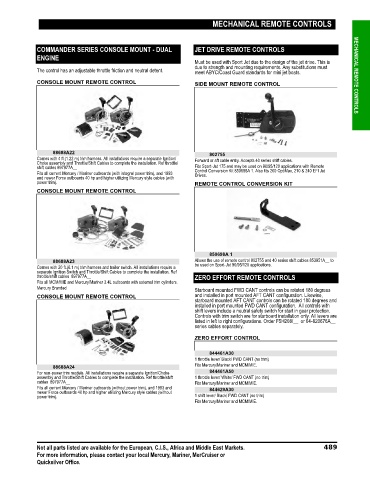

Page 496 - Quicksilver Accesories Guide 2019

MECHANICAL REMOTE CONTROLS

COMMANDER SERIES CONSOLE MOUNT - DUAL JET DRIVE REMOTE CONTROLS
ENGINE
Must be used with Sport Jet due to the design of the jet drive. This is
due to strength and mounting requirements. Any substitutions must
The control has an adjustable throttle friction and neutral detent. meet ABYC/Coast Guard standards for mini jet boats. MECHANICAL REMOTE CONTROLS
CONSOLE MOUNT REMOTE CONTROL SIDE MOUNT REMOTE CONTROL

88688A22 802755
Comes with 4 ft.(1.22 m) trim harness. All installations require a separate Ignition/ Forward or aft cable entry. Accepts 40 series shift cables.
Choke assembly and Throttle/Shift Cables to complete the installation. Ref throttle/
shift cables 897977A__ Fits Sport‑Jet 175 and may be used on 90/95/120 applications with Remote
Fits all current Mercury / Mariner outboards (with integral power trim), and 1993 Control Conversion Kit 850698A 1. Also fits 200 OptiMax, 210 & 240 EFI Jet
Drives.
and newer Force outboards 40 hp and higher utilizing Mercury style cables (with
power trim). REMOTE CONTROL CONVERSION KIT
CONSOLE MOUNT REMOTE CONTROL

850698A 1
88688A23 Allows the use of remote control 802755 and 40 series shift cables 853951A__ to
Comes with 20 ft.(6.1 m) trim harness and trailer switch. All installations require a be used on Sport‑Jet 90/95/120 applications.
separate Ignition Switch and Throttle/Shift Cables to complete the installation. Ref
throttle/shift cables 897977A__ ZERO EFFORT REMOTE CONTROLS
Fits all MCM/MIE and Mercury/Mariner 3.4L outboards with external trim cylinders.
Mercury Branded Starboard mounted FWD CANT controls can be rotated 180 degrees
CONSOLE MOUNT REMOTE CONTROL and installed in port mounted AFT CANT configuration. Likewise,
starboard mounted AFT CANT controls can be rotated 180 degrees and
installed in port mounted FWD CANT configuration. All controls with
shift levers include a neutral safety switch for start in gear protection.
Controls with trim switch are for starboard installation only. All levers are
listed in left to right configurations. Order F5H208/__ or 64‑820676A__
series cables separately.
ZERO EFFORT CONTROL

844461A30
1 throttle lever/ Black/ FWD CANT (no trim)
88688A24 Fits Mercury/Mariner and MCM/MIE.
For non‑power trim models. All installations require a separate Ignition/Choke 844461A50
assembly and Throttle/Shift Cables to complete the installation. Ref throttle/shift 1 throttle lever/ White/ FWD CANT (no trim)
cables 897977A__ Fits Mercury/Mariner and MCM/MIE.
Fits all current Mercury / Mariner outboards (without power trim), and 1993 and 844629A30
newer Force outboards 40 hp and higher utilizing Mercury style cables (without
power trim). 1 shift lever/ Black/ FWD CANT (no trim)
Fits Mercury/Mariner and MCM/MIE.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 489
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
