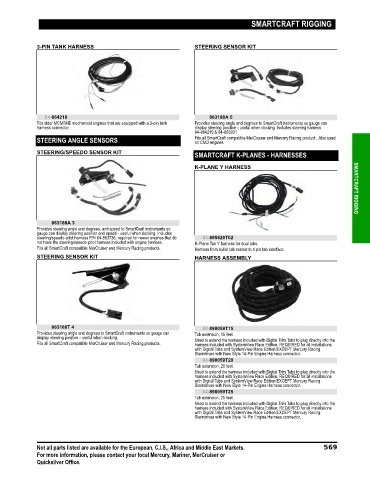

Page 576 - Quicksilver Accesories Guide 2019

SMARTCRAFT RIGGING

3-PIN TANK HARNESS STEERING SENSOR KIT

84-864218 863188A 5
Fits older MCM/MIE mechanical engines that are equipped with a 3‑pin tank Provides steering angle and degrees to SmartCraft instruments so gauge can
harness connector. display steering position ‑ useful when docking. Includes steering harness
84‑864219 & 84‑863931
STEERING ANGLE SENSORS Fits all SmartCraft compatible MerCruiser and Mercury Racing product . Also used
on CMD engines
STEERING/SPEEDO SENSOR KIT
SMARTCRAFT K-PLANES - HARNESSES
K-PLANE Y HARNESS SMARTCRAFT RIGGING

863188A 3
Provides steering angle and degrees, and speed to SmartCraft instruments so
gauge can display steering position and speed ‑ useful when docking. Includes
steering/speedo‑pitot harness P/N 84‑863736, required for newer engines that do 84-895820T02
not have the steering/speedo‑pitot harness included with engine harness. K‑Plane Tab Y harness for dual tabs.
Fits all SmartCraft compatible MerCruiser and Mercury Racing products. Harness from bullet tab sensor to 4 pin tab interface.
STEERING SENSOR KIT HARNESS ASSEMBLY

863188T 4 84-898059T15
Provides steering angle and degrees to SmartCraft instruments so gauge can Tab extension, 15 feet.
display steering position ‑ useful when docking. Used to extend the harness included with Digital Trim Tabs to plug directly into the
Fits all SmartCraft compatible MerCruiser and Mercury Racing products. harness included with SystemView Race Edition. REQUIRED for all installations
with Digital Tabs and SystemView Race Edition EXCEPT Mercury Racing
Sterndrives with New Style 14‑Pin Engine Harness connector.
84-898059T20
Tab extension, 20 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly into the
harness included with SystemView Race Edition. REQUIRED for all installations
with Digital Tabs and SystemView Race Edition EXCEPT Mercury Racing
Sterndrives with New Style 14‑Pin Engine Harness connector.
84-898059T25
Tab extension, 25 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly into the
harness included with SystemView Race Edition. REQUIRED for all installations
with Digital Tabs and SystemView Race Edition EXCEPT Mercury Racing
Sterndrives with New Style 14‑Pin Engine Harness connector.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 569
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
