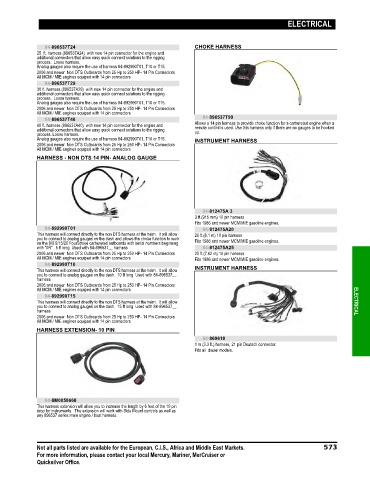

Page 580 - Quicksilver Accesories Guide 2019

ELECTRICAL

84-896537T24 CHOKE HARNESS
25 ft. harness (896537A24) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T29
30 ft. harness (896537A29) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-896537T40 84-896537T99
40 ft. harness (896537A40) with new 14 pin connector for the engine and Allows a 14 pin harness to provide choke function for a carbureted engine when a
remote control is used. Use this harness only if there are no gauges to be hooked
additional connectors that allow easy quick connect solutions to the rigging up.
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15. INSTRUMENT HARNESS
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
HARNESS - NON DTS 14 PIN- ANALOG GAUGE

84-812475A 3
3 ft.(915 mm) 10 pin harness
Fits 1986 and newer MCM/MIE gasoline engines.
84-892990T01 84-812475A20
This harness will connect directly to the non DTS harness at the helm. It will allow 20 ft.(6.1 m) 10 pin harness
you to connect to analog gauges on the dash and allows the choke function to work Fits 1986 and newer MCM/MIE gasoline engines.
on the 8/9.9/15/20 FourStroke carbureted outboards with serial numbers beginning
with "0R". 5 ft long Used with 84‑896537__ harness 84-812475A25
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 25 ft.(7.62 m) 10 pin harness
All MCM / MIE engines equiped with 14 pin connectors Fits 1986 and newer MCM/MIE gasoline engines.
84-892990T10
This harness will connect directly to the non DTS harness at the helm. It will allow INSTRUMENT HARNESS
you to connect to analog gauges on the dash. 10 ft long Used with 84‑896537__
harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-892990T15
This harness will connect directly to the non DTS harness at the helm. It will allow ELECTRICAL
you to connect to analog gauges on the dash. 15 ft long Used with 84‑896537__
harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
HARNESS EXTENSION- 10 PIN
84-860618
1 m (3.3 ft.) harness, 21 pin Deutsch connector.
Fits all diesel models.

84-8M0058668
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 573
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
