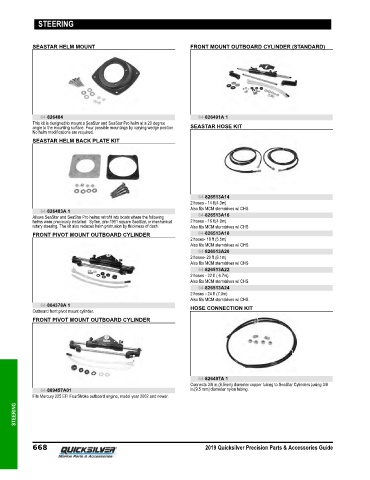

Page 675 - Quicksilver Accesories Guide 2019

STEERING

SEASTAR HELM MOUNT FRONT MOUNT OUTBOARD CYLINDER (STANDARD)

64-826484 64-826491A 1
This kit is designed to mount a SeaStar and SeaStar Pro helm at a 20 degree
angle to the mounting surface. Four possible mountings by varying wedge position. SEASTAR HOSE KIT
No helm modifications are required.
SEASTAR HELM BACK PLATE KIT

64-826513A14
2 hoses ‑ 14 ft(4.3m)
Also fits MCM sterndrives w/ CHS
64-826483A 1
Allows SeaStar and SeaStar Pro helms retrofit into boats where the following 64-826513A16
helms were previously installed: SyTen, pre‑1991 square SeaStar, or mechanical 2 hoses ‑ 16 ft(4.9m)
rotary steering. The kit also reduces helm protrusion by thickness of dash. Also fits MCM sterndrives w/ CHS
FRONT PIVOT MOUNT OUTBOARD CYLINDER 64-826513A18
2 hoses‑ 18 ft (5.5m)
Also fits MCM sterndrives w/ CHS
64-826513A20
2 hoses‑ 20 ft (6.1m)
Also fits MCM sterndrives w/ CHS
64-826513A22
2 hoses ‑ 22 ft ( 6.7m)
Also fits MCM sterndrives w/ CHS
64-826513A24
2 hoses ‑ 24 ft (7.3m)
Also fits MCM sterndrives w/ CHS
64-804378A 1
Outboard front pivot mount cylinder. HOSE CONNECTION KIT
FRONT PIVOT MOUNT OUTBOARD CYLINDER

64-826497A 1
Connects 3/8 in.(9.5mm) diameter copper tubing to SeaStar Cylinders (using 3/8
64-889457A01 in.[9.5 mm] diameter nylon tubing.
Fits Mercury 225 EFI FourStroke outboard engine, model year 2002 and newer.
STEERING
