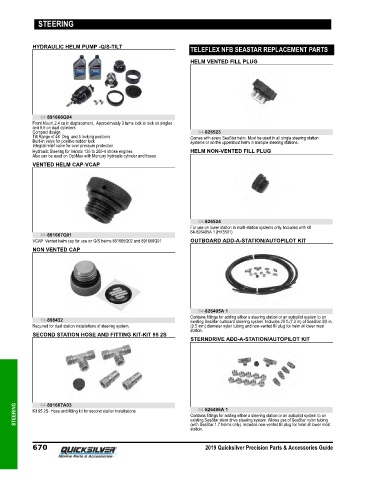

Page 677 - Quicksilver Accesories Guide 2019

STEERING

HYDRAULIC HELM PUMP -Q/S-TILT
TELEFLEX NFB SEASTAR REPLACEMENT PARTS
HELM VENTED FILL PLUG

64-891666Q04
Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
and 6.5 on dual cylinders
Compact design 64-826523
Tilt Range of 48 Deg and 5 locking positions Comes with every SeaStar helm. Must be used in all single steering station
Built‑in valve for positive rudder lock systems or on the uppermost helm in multiple steering stations.
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines HELM NON-VENTED FILL PLUG
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
VENTED HELM CAP-VCAP

64-826524
For use on lower station in multi‑station systems only. Included with kit
64‑826495A 1 (HK5501)
64-891667Q01
VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01 OUTBOARD ADD-A-STATION/AUTOPILOT KIT
NON VENTED CAP

64-826495A 1
Contains fittings for adding either a steering station or an autopilot system to an
19-898432 existing SeaStar outboard steering system. Includes 25 ft.(7.3 m) of SeaStar 3/8 in.
Required for dual station installations of steering system. (9.5 mm) diameter nylon tubing and non‑vented fill plug for helm at lower most
station.
SECOND STATION HOSE AND FITTING KIT-KIT 95 2S
STERNDRIVE ADD-A-STATION/AUTOPILOT KIT

64-891667A03
STEERING Kit 95 2S‑ Hose and fitting kit for second station installations Contains fittings for adding either a steering station or an autopilot system to an
64-826496A 1
existing SeaStar stern drive steering system. Allows use of SeaStar nylon tubing
(with SeaStar 1.7 helms only). Includes non‑vented fill plug for helm at lower most
station.

670 2019 Quicksilver Precision Parts & Accessories Guide
