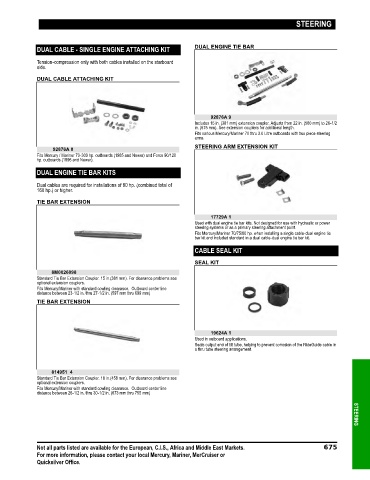

Page 682 - Quicksilver Accesories Guide 2019
P. 682

STEERING



             DUAL CABLE - SINGLE ENGINE ATTACHING KIT            DUAL ENGINE TIE BAR

             Tension‑compression only with both cables installed on the starboard
             side.

             DUAL CABLE ATTACHING KIT






                                                                       92876A 9
                                                                 Includes 15 in. (381 mm) extension coupler. Adjusts from 22 in. (560 mm) to 26‑1/2
                                                                 in. (675 mm). See extension couplers for additional length.
                                                                 Fits various Mercury/Mariner 70 thru 3.0 Litre outboards with two piece steering
                                                                 arms.
                                                                 STEERING ARM EXTENSION KIT
                   92876A 8
             Fits Mercury / Mariner 70‑300 hp. outboards (1985 and Newer) and Force 90/120
             hp. outboards (1996 and Newer).
             DUAL ENGINE TIE BAR KITS

             Dual cables are required for installations of 80 hp. (combined total of
             160 hp.) or higher.
             TIE BAR EXTENSION

                                                                       17729A 1
                                                                 Used with dual engine tie bar kits. Not designed for use with hydraulic or power
                                                                 steering systems or as a primary steering attachment point.
                                                                 Fits Mercury/Mariner 70/75/80 hp. when installing a single cable‑dual engine tie
                                                                 bar kit and included standard in a dual cable‑dual engine tie bar kit.
                                                                 CABLE SEAL KIT

                                                                 SEAL KIT
                  8M0026098
             Standard Tie Bar Extension Coupler. 15 in.(381 mm). For clearance problems see
             optional extension couplers.
             Fits Mercury/Mariner with standard cowling clearance.  Outboard center line
             distance between 23‑1/2 in. thru 27‑1/2 in. (597 mm thru 699 mm)
             TIE BAR EXTENSION




                                                                       19624A 1
                                                                 Used in outboard applications.
                                                                 Seals output end of tilt tube, helping to prevent corrosion of the RideGuide cable in
                                                                 a thru tube steering arrangement.


                  814951  4
             Standard Tie Bar Extension Coupler. 18 in.(458 mm). For clearance problems see
             optional extension couplers.
             Fits Mercury/Mariner with standard cowling clearance.  Outboard center line
             distance between 26‑1/2 in. thru 30‑1/2 in. (673 mm thru 755 mm)                                         STEERING









             Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets.   675
             For more information, please contact your local Mercury, Mariner, MerCruiser or
             Quicksilver Office.
