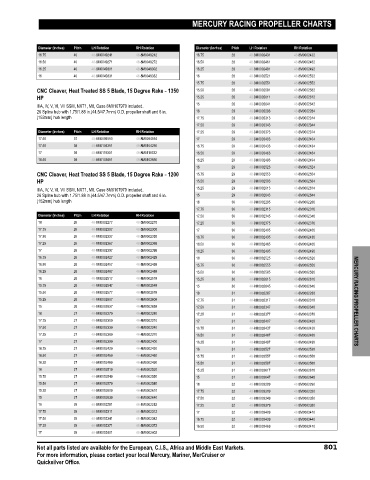

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
16.75 40 48-8M0049241 48-8M0049242 16.75 28 48-8M0002431 48-8M0002432
16.50 40 48-8M0049271 48-8M0049272 16.50 28 48-8M0002461 48-8M0002462
16.25 40 48-8M0049301 48-8M0049302 16.25 28 48-8M0002491 48-8M0002492
16 40 48-8M0049331 48-8M0049332 16 28 48-8M0002521 48-8M0002522
15.75 28 48-8M0002551 48-8M0002552
CNC Cleaver, Heat Treated SS 5 Blade, 15 Degree Rake ‑ 1350 15.50 28 48-8M0002581 48-8M0002582
HP 15.25 28 48-8M0002611 48-8M0002612
IIIA, IV, V, VI, VII SSM, NXT1, M8, Case 8M0107970 included. 15 28 48-8M0002641 48-8M0002642
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 18 29 48-8M0002283 48-8M0002284
(152mm) hub length 17.75 29 48-8M0002313 48-8M0002314
17.50 29 48-8M0002343 48-8M0002344
Diameter (Inches) Pitch LH Rotation RH Rotation 17.25 29 48-8M0002373 48-8M0002374
17.50 37 48-8M0094553 48-8M0094554 17 29 48-8M0002403 48-8M0002404
17.50 38 48-8M0104251 48-8M0104250 16.75 29 48-8M0002433 48-8M0002434
17 39 48-8M0119331 48-8M0119332 16.50 29 48-8M0002463 48-8M0002464
16.50 39 48-8M0103651 48-8M0103650 16.25 29 48-8M0002493 48-8M0002494
16 29 48-8M0002523 48-8M0002524
CNC Cleaver, Heat Treated SS 5 Blade, 15 Degree Rake ‑ 1200 15.75 29 48-8M0002553 48-8M0002554
HP 15.50 29 48-8M0002583 48-8M0002584
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 included. 15.25 29 48-8M0002613 48-8M0002614
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 15 29 48-8M0002643 48-8M0002644
(152mm) hub length 18 30 48-8M0002285 48-8M0002286
17.75 30 48-8M0002315 48-8M0002316
Diameter (Inches) Pitch LH Rotation RH Rotation 17.50 30 48-8M0002345 48-8M0002346
18 26 48-8M0002277 48-8M0002278 17.25 30 48-8M0002375 48-8M0002376
17.75 26 48-8M0002307 48-8M0002308 17 30 48-8M0002405 48-8M0002406
17.50 26 48-8M0002337 48-8M0002338 16.75 30 48-8M0002435 48-8M0002436
17.25 26 48-8M0002367 48-8M0002368 16.50 30 48-8M0002465 48-8M0002466
17 26 48-8M0002397 48-8M0002398 16.25 30 48-8M0002495 48-8M0002496
16.75 26 48-8M0002427 48-8M0002428 16 30 48-8M0002525 48-8M0002526
16.50 26 48-8M0002457 48-8M0002458 15.75 30 48-8M0002555 48-8M0002556
16.25 26 48-8M0002487 48-8M0002488 15.50 30 48-8M0002585 48-8M0002586
16 26 48-8M0002517 48-8M0002518 15.25 30 48-8M0002615 48-8M0002616
15.75 26 48-8M0002547 48-8M0002548 15 30 48-8M0002645 48-8M0002646
15.50 26 48-8M0002577 48-8M0002578 18 31 48-8M0002287 48-8M0002288
15.25 26 48-8M0002607 48-8M0002608 17.75 31 48-8M0002317 48-8M0002318 MERCURY RACING PROPELLER CHARTS
15 26 48-8M0002637 48-8M0002638 17.50 31 48-8M0002347 48-8M0002348
18 27 48-8M0002279 48-8M0002280 17.25 31 48-8M0002377 48-8M0002378
17.75 27 48-8M0002309 48-8M0002310 17 31 48-8M0002407 48-8M0002408
17.50 27 48-8M0002339 48-8M0002340 16.75 31 48-8M0002437 48-8M0002438
17.25 27 48-8M0002369 48-8M0002370 16.50 31 48-8M0002467 48-8M0002468
17 27 48-8M0002399 48-8M0002400 16.25 31 48-8M0002497 48-8M0002498
16.75 27 48-8M0002429 48-8M0002430 16 31 48-8M0002527 48-8M0002528
16.50 27 48-8M0002459 48-8M0002460 15.75 31 48-8M0002557 48-8M0002558
16.25 27 48-8M0002489 48-8M0002490 15.50 31 48-8M0002587 48-8M0002588
16 27 48-8M0002519 48-8M0002520 15.25 31 48-8M0002617 48-8M0002618
15.75 27 48-8M0002549 48-8M0002550 15 31 48-8M0002647 48-8M0002648
15.50 27 48-8M0002579 48-8M0002580 18 32 48-8M0002289 48-8M0002290
15.25 27 48-8M0002609 48-8M0002610 17.75 32 48-8M0002319 48-8M0002320
15 27 48-8M0002639 48-8M0002640 17.50 32 48-8M0002349 48-8M0002350
18 28 48-8M0002281 48-8M0002282 17.25 32 48-8M0002379 48-8M0002380
17.75 28 48-8M0002311 48-8M0002312 17 32 48-8M0002409 48-8M0002410
17.50 28 48-8M0002341 48-8M0002342 16.75 32 48-8M0002439 48-8M0002440
17.25 28 48-8M0002371 48-8M0002372 16.50 32 48-8M0002469 48-8M0002470
17 28 48-8M0002401 48-8M0002402

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 801
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
