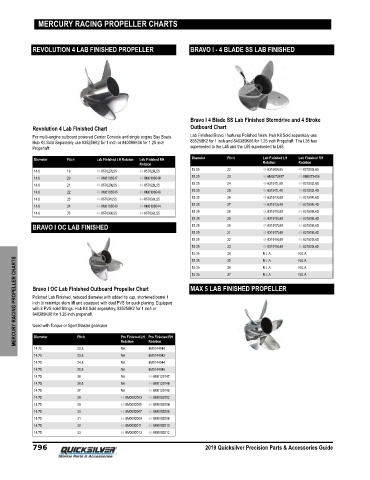

MERCURY RACING PROPELLER CHARTS

REVOLUTION 4 LAB FINISHED PROPELLER BRAVO I - 4 BLADE SS LAB FINISHED

Bravo I 4 Blade SS Lab Finished Sterndrive and 4 Stroke
Revolution 4 Lab Finished Chart Outboard Chart
For multi‑engine outboard powered Center Console and single engine Bay Boats. Lab Finished Bravo I features Polished finish. Hub Kit Sold separately use
Hub Kit Sold Separately use 835258K2 for 1 inch or 840389K06 for 1.25 inch 835258K2 for 1 inch and 840389K06 for 1.25 inch Propshaft. The L35 has
Propshaft superseded to the L45 and the L55 superseded to L65.
Diameter Pitch Lab Finished LH Rotaion Lab Finished RH Diameter Pitch Lab Finished LH Lab Finished RH
Rotaion Rotation Rotation
14.6 19 48-857027L55 48-857026L55 15.25 22 48-831909L65 48-831910L65
14.6 20 48-8M0106547 48-8M0106548 15.25 23 48-8M0073457 48-8M0073456
14.6 21 48-857029L55 48-857028L55 15.25 24 48-831911L65 48-831912L65
14.6 22 48-8M0106545 48-8M0106546 15.25 25 48-831911L45 48-831912L45
14.6 23 48-857031L55 48-857030L55 15.25 26 48-831913L65 48-831914L65
14.6 24 48-8M0106543 48-8M0106544 15.25 27 48-831913L45 48-831914L45
14.6 25 48-857033L55 48-857032L55 15.25 28 48-831915L65 48-831916L65
15.25 29 48-831915L45 48-831916L45
BRAVO I OC LAB FINISHED 15.25 30 48-831917L65 48-831918L65
15.25 31 48-831917L45 48-831918L45
15.25 32 48-831919L65 48-831920L65
15.25 33 48-831919L45 48-831920L45
15.25 34 N.L.A. N.L.A.
MERCURY RACING PROPELLER CHARTS Bravo I OC Lab Finished Outboard Propeller Chart MAX 5 LAB FINISHED PROPELLER
35
N.L.A.
N.L.A.
15.25
15.25
N.L.A.
N.L.A.
36
N.L.A.
37
15.25
N.L.A.
Polished Lab Finished, reduced diameter with added tip cup, shortened barrel 1
inch to minimize stern lift and equipped with dual PVS for quick planing. Equipped
with 8 PVS solid fittings. Hub Kit Sold separately, 835258K2 for 1 inch or
840389K06 for 1.25 inch propshaft.
Used with Torque or Sport Master gearcase.
Diameter
Rotation
Rotation
14.75 Pitch Pro Finished LH Pro Finished RH
22.5
NA
8M0144040
14.75 23.5 NA 8M0144042
14.75 24.5 NA 8M0144044
14.75 25.5 NA 8M0144046
14.75 26 NA 48-8M0129147
14.75 26.5 NA 48-8M0129148
14.75 27 NA 48-8M0129149
14.75 28 48-8M0092003 48-8M0092002
14.75 29 48-8M0092005 48-8M0092004
14.75 30 48-8M0092007 48-8M0092006
14.75 31 48-8M0092009 48-8M0092008
14.75 32 48-8M0092011 48-8M0092010
14.75 33 48-8M0092013 48-8M0092012
796 2019 Quicksilver Precision Parts & Accessories Guide
