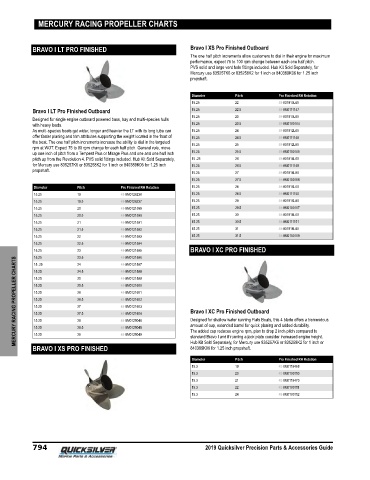

Page 801 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER CHARTS

BRAVO I LT PRO FINISHED Bravo I XS Pro Finished Outboard
The one half pitch increments allow customers to dial in their engine for maximum
performance, expect 75 to 100 rpm change between each one half pitch.
PVS solid and large vent hole fittings included. Hub Kit Sold Separately, for
Mercury use 835257K6 or 835258K2 for 1 inch or 840389K06 for 1.25 inch
propshaft.

Diameter Pitch Pro Finished RH Rotation
15.25 22 48-831910L60
Bravo I LT Pro Finished Outboard 15.25 22.5 48-8M0111147
Designed for single engine outboard powered bass, bay and multi‑species hulls 15.25 23 48-831910L80
with heavy loads. 15.25 23.5 48-8M0100104
As multi‑species boats get wider, longer and heavier the LT with its long tube can 15.25 24 48-831912L60
offer faster planing and trim attributes supporting the weight located in the front of 15.25 24.5 48-8M0111148
the boat. The one half pitch increments increase the ability to dial in the targeted 15.25 25 48-831912L80
rpm at WOT. Expect 75 to 80 rpm change for each half pitch. General rule, move
up one inch of pitch from a Tempest Plus or Mirage Plus and one and one half inch 15.25 25.5 48-8M0100105
pitch up from the Revolution 4. PVS solid fittings included. Hub Kit Sold Separately, 15 .25 26 48-831914L60
for Mercury use 835257K6 or 835258K2 for 1 inch or 840389K06 for 1.25 inch 15.25 26.5 48-8M0111149
propshaft. 15.25 27 48-831914L80
15.25 27.5 48-8M0100106
Diameter Pitch Pro Finished RH Rotation 15.25 28 48-831916L60
15.25 19 48-8M0126236 15.25 28.5 48-8M0111150
15.25 19.5 48-8M0126237 15.25 29 48-831916L80
15.25 20 48-8M0121589 15.25 29.5 48-8M0100107
15.25 20.5 48-8M0121590 15.25 30 48-831918L60
15.25 21 48-8M0121591 15.25 30.5 48-8M0111151
15.25 21.5 48-8M0121592 15.25 31 48-831918L80
15.25 22 48-8M0121593 15.25 31.5 48-8M0100109
15.25 22.5 48-8M0121594
BRAVO I XC PRO FINISHED
15.25 23 48-8M0121595
48-8M0121596
23.5
15.25
MERCURY RACING PROPELLER CHARTS 15.25 25 48-8M0121599 Bravo I XC Pro Finished Outboard
48-8M0121597
24
15 .25
48-8M0121598
15.25
24.5
48-8M0121600
25.5
15.25
15.25
48-8M0121601
26
15.25
48-8M0121602
26.5
48-8M0121603
27
15.25
15.25
48-8M0121604
27.5
Designed for shallow water running Flats Boats, this 4 blade offers a tremendous
15.25
28
48-8M0129046
15.25
28.5
The added cup reduces engine rpm, plan to drop 2 inch pitch compared to
15.25
29
48-8M0129049
standard Bravo I and if running a jack plate consider increased engine height.
Hub Kit Sold Separately, for Mercury use 835257K6 or 835258K2 for 1 inch or
BRAVO I XS PRO FINISHED 48-8M0129048 amount of cup, extended barrel for quick planing and added durability.
840389K06 for 1.25 inch propshaft.
Diameter Pitch Pro Finished RH Rotation
15.3 19 48-8M0118468
15.3 20 48-8M0100110
15.3 21 48-8M0118470
15.3 22 48-8M0100111
15.3 24 48-8M0100112
