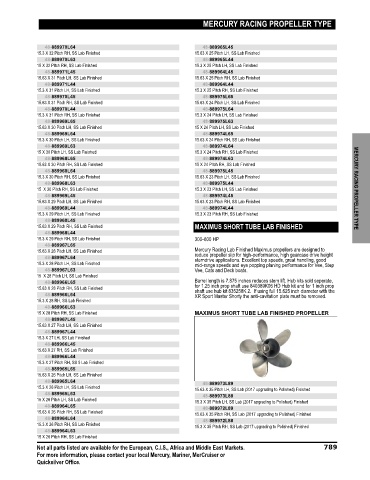

Page 796 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER TYPE

48-889970L64 48-889965L45
15.3 X 32 Pitch RH, SS Lab Finished 15.63 X 25 Pitch LH, SS Lab Finished
48-889970L63 48-889965L44
15 X 32 Pitch RH, SS Lab Finished 15.3 X 25 Pitch LH, SS Lab Finished
48-889971L45 48-889964L45
15.63 X 31 Pitch LH, SS Lab Finished 15.63 X 25 Pitch RH, SS Lab Finished
48-889971L44 48-889964L44
15.3 X 31 Pitch LH, SS Lab Finished 15.3 X 25 Pitch RH, SS Lab Finished
48-889970L45 48-889975L65
15.63 X 31 Pitch RH, SS Lab Finished 15.63 X 24 Pitch LH, SS Lab Finished
48-889970L44 48-889975L64
15.3 X 31 Pitch RH, SS Lab Finished 15.3 X 24 Pitch LH, SS Lab Finished
48-889969L65 48-889975L63
15.63 X 30 Pitch LH, SS Lab Finished 15 X 24 Pitch LH, SS Lab Finished
48-889969L64 48-889974L65
15.3 X 30 Pitch LH, SS Lab Finished 15.63 X 24 Pitch RH, SS Lab Finished
48-889969L63 48-889974L64
15 X 30 Pitch LH, SS Lab Finished 15.3 X 24 Pitch RH, SS Lab Finished
48-889968L65 48-889974L63
15.63 X 30 Pitch RH, SS Lab Finished 15 X 24 Pitch RH, SS Lab Finished
48-889968L64 48-889975L45
15.3 X 30 Pitch RH, SS Lab Finished 15.63 X 23 Pitch LH, SS Lab Finished
48-889968L63 48-889975L44
15 X 30 Pitch RH, SS Lab Finished 15.3 X 23 Pitch LH, SS Lab Finished MERCURY RACING PROPELLER TYPE
48-889969L45 48-889974L45
15.63 X 29 Pitch LH, SS Lab Finished 15.63 X 23 Pitch RH, SS Lab Finished
48-889969L44 48-889974L44
15.3 X 29 Pitch LH, SS Lab Finished 15.3 X 23 Pitch RH, SS Lab Finished
48-889968L45
15.63 X 29 Pitch RH, SS Lab Finished MAXIMUS SHORT TUBE LAB FINISHED
48-889968L44
15.3 X 29 Pitch RH, SS Lab Finished 300‑600 HP
48-889967L65
15.63 X 28 Pitch LH, SS Lab Finished Mercury Racing Lab Finished Maximus propellers are designed to
reduce propeller slip for high‑performance, high gearcase drive height
48-889967L64 sterndrive applications. Excellent top speeds, great handling, good
15.3 X 28 Pitch LH, SS Lab Finished mid‑range speeds and eye popping planing performance for Vee, Step
48-889967L63 Vee, Cats and Deck boats.
15 X 28 Pitch LH, SS Lab Finished
48-889966L65 Barrel length is 7.875 inches reduces stern lift. Hub kits sold seperate,
15.63 X 28 Pitch RH, SS Lab Finished for 1.25 inch prop shaft use 840389K06 HD Hub kit and for 1 inch prop
shaft use hub kit 835258K 2. If using full 15.625 inch diameter with the
48-889966L64 XR Sport Master Shorty the anti‑cavitation plate must be removed.
15.3 X 28 RH, SS Lab Finished
48-889966L63
15 X 28 Pitch RH, SS Lab Finished MAXIMUS SHORT TUBE LAB FINISHED PROPELLER
48-889967L45
15.63 X 27 Pitch LH, SS Lab Finished
48-889967L44
15.3 X 27 LH, SS Lab Finished
48-889966L45
15.63 X 27 RH, SS Lab Finished
48-889966L44
15.3 X 27 Pitch RH, SS 5 Lab Finished
48-889965L65
15.63 X 26 Pitch LH, SS Lab Finished
48-889965L64 48-889973L89
15.3 X 26 Pitch LH, SS Lab Finished 15.63 X 35 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889965L63 48-889973L88
15 X 26 Pitch LH, SS Lab Finished 15.3 X 35 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889964L65 48-889972L89
15.63 X 26 Pitch RH, SS Lab Finished 15.63 X 35 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889964L64 48-889972L88
15.3 X 26 Pitch RH, SS Lab Finished 15.3 X 35 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889964L63
15 X 26 Pitch RH, SS Lab Finished
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 789
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
