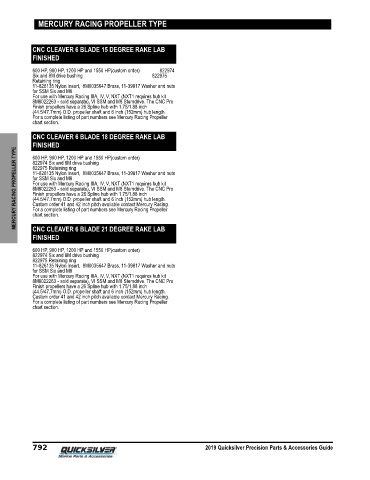

Page 799 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER TYPE

CNC CLEAVER 6 BLADE 15 DEGREE RAKE LAB
FINISHED

600 HP, 900 HP, 1200 HP and 1550 HP(custom order) 822974
Six and 8M drive bushing 822975
Retaining ring
11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
for SSM Six and M8
For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length.
For a complete listing of part numbers see Mercury Racing Propeller
chart section.
CNC CLEAVER 6 BLADE 18 DEGREE RAKE LAB
FINISHED
MERCURY RACING PROPELLER TYPE 822975 Retaining ring
600 HP, 900 HP, 1200 HP and 1550 HP(custom order)
822974 Six and 8M drive bushing
11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
for SSM Six and M8
For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length.
Custom order 41 and 42 inch pitch available contact Mercury Racing.
For a complete listing of part numbers see Mercury Racing Propeller
chart section.
CNC CLEAVER 6 BLADE 21 DEGREE RAKE LAB
FINISHED

600 HP, 900 HP, 1200 HP and 1550 HP(custom order)
822974 Six and 8M drive bushing
822975 Retaining ring
11‑826135 Nylon Insert, 8M0035647 Brass, 11‑39817 Washer and nuts
for SSM Six and M8
For use with Mercury Racing IIIA, IV, V, NXT (NXT1 requires hub kit
8M8022263 ‑ sold separate), VI SSM and M8 Sterndrive. The CNC Pro
Finish propellers have a 26 Spline hub with 1.75/1.88 inch
(44.5/47.7mm) O.D. propeller shaft and 6 inch (152mm) hub length.
Custom order 41 and 42 inch pitch available contact Mercury Racing.
For a complete listing of part numbers see Mercury Racing Propeller
chart section.

792 2019 Quicksilver Precision Parts & Accessories Guide
