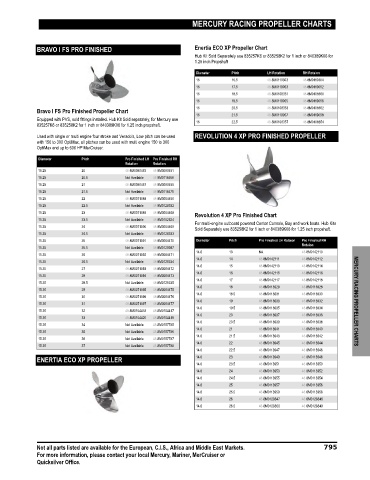

Page 802 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER CHARTS

BRAVO I FS PRO FINISHED Enertia ECO XP Propeller Chart
Hub Kit Sold Separately use 835257K6 or 835258K2 for 1 inch or 840389K06 for
1.25 inch Propshaft

Diameter Pitch LH Rotation RH Rotaion
16 16.5 48-8M0110303 48-8M0110304
16 17.5 48-8M0119053 48-8M0119052
16 18.5 48-8M0108351 48-8M0108350
16 19.5 48-8M0119055 48-8M0119056
16 20.5 48-8M0108353 48-8M0108352
Bravo I FS Pro Finished Propeller Chart
16 21.5 48-8M0119057 48-8M0119058
Equipped with PVS, sold fittings installed. Hub Kit Sold separately, for Mercury use 16 22.5 48-8M0108357 48-8M0108354
835257K6 or 835258K2 for 1 inch or 840389K06 for 1.25 inch propshaft.
Used with single or multi engine four stroke and Verado's, Low pitch can be used REVOLUTION 4 XP PRO FINISHED PROPELLER
with 150 to 300 OptiMax, all pitches can be used with multi engine 150 to 300
OptiMax and up to 600 HP MerCruiser.
Diameter Pitch Pro Finished LH Pro Finished RH
Rotation Rotation
15.25 20 48-8M0090453 48-8M0090451
15.25 20.5 Not Available 48-8M0118469
15.25 21 48-8M0090457 48-8M0090455
15.25 21.5 Not Available 48-8M0118471
15.25 22 48-8M0071088 48-8M0064450
15.25 22.5 Not Available 48-8M0128332
15.25 23 48-8M0071089 48-8M0064468
Revolution 4 XP Pro Finished Chart
15.25 23.5 Not Available 48-8M0152624
For multi‑engine outboard powered Center Console, Bay and work boats. Hub Kits
15.25 24 48-8M0071090 48-8M0064469
Sold Separately use 835258K2 for 1 inch or 840389K06 for 1.25 inch propshaft.
15.25 24.5 Not Available 48-8M0128333
15.25 25 48-8M0071091 48-8M0064470 Diameter Pitch Pro Finished LH Rotaion Pro Finished RH
Rotaion
15.25 25.5 Not Available 48-8M0129397
14.6 13 NA 48-8M0142110
15.25 26 48-8M0071092 48-8M0064471
14.6 14 48-8M0142111 48-8M0142112
15.25 26.5 Not Available 48-8M0128334
14.6 15 48-8M0142113 48-8M0142114
15.25 27 48-8M0071093 48-8M0064472
14.6 16 48-8M0142115 48-8M0142116
15.25 28 48-8M0071094 48-8M0064473
14.6 17 48-8M0142117 48-8M0142118
15.25 28.5 Not Available 48-8M0128335
14.6 18 48-8M0113929 48-8M0113928
15.25 29 48-8M0071095 48-8M0064475
14.6 18.5 48-8M0113931 48-8M0113930
15.25 30 48-8M0071096 48-8M0064476
14.6 19 48-8M0113933 48-8M0113932 MERCURY RACING PROPELLER CHARTS
15.25 31 48-8M0071097 48-8M0064477
14.6 19.5 48-8M0113935 48-8M0113934
15.25 32 48-8M0104418 48-8M0104417
14.6 20 48-8M0113937 48-8M0113936
15.25 33 48-8M0104420 48-8M0104419
14.6 20.5 48-8M0113939 48-8M0113938
15.25 34 Not Available 48-8M0157785
14.6 21 48-8M0113941 48-8M0113940
15.25 35 Not Available 48-8M0157786
14.6 21.5 48-8M0113943 48-8M0113942
15.25 36 Not Available 48-8M0157787
14.6 22 48-8M0113945 48-8M0113944
15.25 37 Not Available 48-8M0157788
14.6 22.5 48-8M0113947 48-8M0113946
ENERTIA ECO XP PROPELLER 14.6 23 48-8M0113949 48-8M0113948
14.6 23.5 48-8M0113951 48-8M0113950
14.6 24 48-8M0113953 48-8M0113952
14.6 24.5 48-8M0113955 48-8M0113954
14.6 25 48-8M0113957 48-8M0113956
14.6 25.5 48-8M0113959 48-8M0113958
14.6 26 48-8M0128847 48-8M0128846
14.6 26.5 48-8M0128850 48-8M0128849

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 795
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
