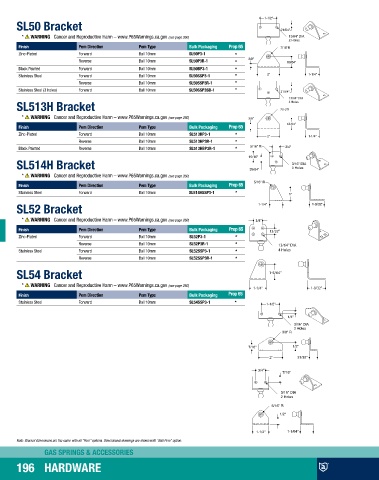

Page 198 - Attwood Marine Products Collection 2020

• 1-1/2" •
SL50 Bracket • 21/64" • •
13/64" DIA
2 Holes
Finish Pem Direction Pem Type Bulk Packaging 7/16"R
Zinc-Plated Forward Ball 10mm SL50P3-1 • •
Reverse Ball 10mm SL50P3R-1 3/8" 63/64"
•
Black Painted Forward Ball 10mm SL50BP3-1 • •
Stainless Steel Forward Ball 10mm SL50SSP3-1 • 2" • • 1-1/4" •
Reverse Ball 10mm SL50SSP3R-1
Stainless Steel (3 holes) Forward Ball 10mm SL50SSP3SB-1
SL513H Bracket

Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Forward Ball 10mm SL513HP3-1
Reverse Ball 10mm SL513HP3R-1
Black Painted Reverse Ball 10mm SL513HBP3R-1 5/16" R • • 3/4"
• •
15/16" • •
SL514H Bracket 35/64" • 3/16" DIA
•
3 Holes

5/16" R
Finish Pem Direction Pem Type Bulk Packaging • •
Stainless Steel Forward Ball 10mm SL514HSSP3-1 1"
•
SL52 Bracket • • • 1-9/32" •
1-1/4"

Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Forward Ball 10mm SL52P3-1
Reverse Ball 10mm SL52P3R-1
Stainless Steel Forward Ball 10mm SL52SSP3-1
Reverse Ball 10mm SL52SSP3R-1
SL54 Bracket

Finish Pem Direction Pem Type Bulk Packaging
Stainless Steel Forward Ball 10mm SL54SSP3-1 • 1-1/2" •
•
• 1/4" •
3/16" DIA
2 Holes
3/8" R
•
• •
7/16" 1/2"
• •
• 2" • 21/32" • •
• 3/4" • 7/16"
•
• •
3/16" DIA
2 Holes
5/16" R
• 1/2"
•
•
• 1-1/4" • 1-1/64" • •
Note: Bracket dimensions are the same with all “Pem” options. Dimensional drawings are shown with “Ball Pem” option.
GAS SPRINGS & ACCESSORIES

196 HARDWARE
