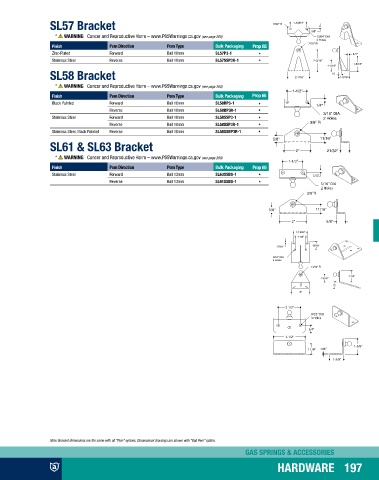

SL57 Bracket 7/32" R • • 1-33/64" • • • •
5/8" 13/64" DIA
2 Holes
7/16" R
Finish Pem Direction Pem Type Bulk Packaging •
Zinc-Plated Forward Ball 10mm SL57P3-1 • • • 1/4" •
Stainless Steel Reverse Ball 10mm SL57SSP3R-1 2-3/16" •
1-1/16" 1-5/16"
SL58 Bracket • 2-1/16" • • • 10 • • •
1-3/16" •
•

Finish Pem Direction Pem Type Bulk Packaging
Black Painted Forward Ball 10mm SL58BP3-1
Reverse Ball 10mm SL58BP3R-1
Stainless Steel Forward Ball 10mm SL58SSP3-1
Reverse Ball 10mm SL58SSP3R-1
Stainless Steel, Black Painted Reverse Ball 10mm SL58SSBP3R-1
SL61 & SL63 Bracket

Finish Pem Direction Pem Type Bulk Packaging
Stainless Steel Forward Ball 13mm SL63SSBS-1
Reverse Ball 13mm SL61SSBS-1

• 1-13/32" •
• 1-1/8" •
• •
•
17/64" 15/16"
• •
3/16" DIA
4 Holes
13/32" R
• •
•
15/16" 1-1/4"
• • •
15
•
• 2" •

Note: Bracket dimensions are the same with all “Pem” options. Dimensional drawings are shown with “Ball Pem” option.
