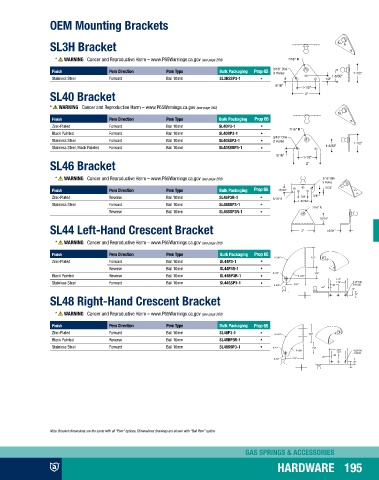

OEM Mounting Brackets

SL3H Bracket

7/16" R
• •
Finish Pem Direction Pem Type Bulk Packaging 3/16" DIA • 1-1/2"
3 Holes
•
Stainless Steel Forward Ball 10mm SL3HSSP3-1 • • 1/2" 1-5/32"
• • • •
5/16"
• 1-1/2" •
• 2" •
SL40 Bracket
Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Forward Ball 10mm SL40P3-1
7/16" R
Black Painted Forward Ball 10mm SL40BP3-1 • •
3/16" DIA
Stainless Steel Forward Ball 10mm SL40SSP3-1 2 Holes • 1-1/2"
Stainless Steel, Black Painted Forward Ball 10mm SL40SSBP3-1 • • 1-5/32"
• • •
5/16" • 1-1/2" •
SL46 Bracket • 2" •

Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Reverse Ball 10mm SL46P3R-1
Stainless Steel Forward Ball 10mm SL46SSP3-1
Reverse Ball 10mm SL46SSP3R-1

SL44 Left-Hand Crescent Bracket

Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Forward Ball 10mm SL44P3-1
Reverse Ball 10mm SL44P3R-1
Black Painted Reverse Ball 10mm SL44BP3R-1
Stainless Steel Forward Ball 10mm SL44SSP3-1

SL48 Right-Hand Crescent Bracket

Finish Pem Direction Pem Type Bulk Packaging
Zinc-Plated Forward Ball 10mm SL48P3-1
Black Painted Reverse Ball 10mm SL48BP3R-1
Stainless Steel Forward Ball 10mm SL48SSP3-1

Note: Bracket dimensions are the same with all “Pem” options. Dimensional drawings are shown with “Ball Pem” option.
