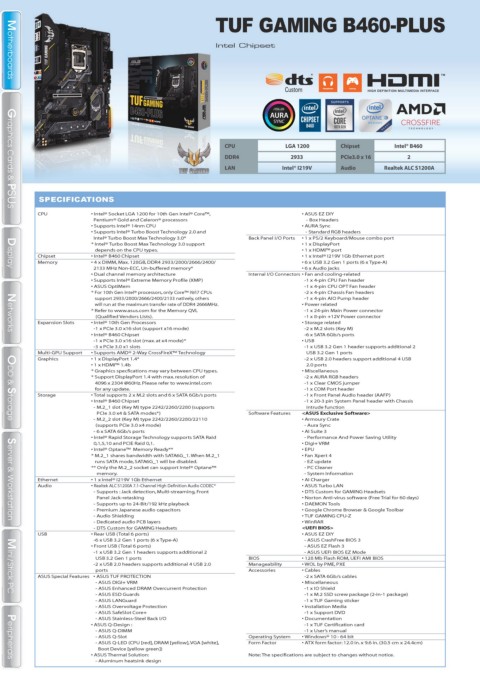

Page 74 - ASUS_WORLD_134_ebook

TUF GAMING B460-PLUS

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® B460
DDR4 2933 PCIe3.0 x 16 2
LAN Intel® I219V Audio Realtek ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA 1200 for 10th Gen Intel® Core™, • ASUS EZ DIY
Pentium® Gold and Celeron® processors - Box Headers
• Supports Intel® 14nm CPU • AURA Sync
• Supports Intel® Turbo Boost Technology 2.0 and - Standard RGB headers
Intel® Turbo Boost Max Technology 3.0* Back Panel I/O Ports • 1 x PS/2 Keyboard/Mouse combo port
* Intel® Turbo Boost Max Technology 3.0 support • 1 x DisplayPort
depends on the CPU types. • 1 x HDMI™ port
Chipset • Intel® B460 Chipset • 1 x Intel® I219V 1Gb Ethernet port
Memory • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/ • 6 x USB 3.2 Gen 1 ports (6 x Type-A)
2133 MHz Non-ECC, Un-buffered memory* • 6 x Audio jacks
Display
Display
• Dual channel memory architecture Internal I/O Connectors • Fan and cooling-related
• Supports Intel® Extreme Memory Profile (XMP) -1 x 4-pin CPU Fan header
• ASUS OptiMem -1 x 4-pin CPU OPT Fan header
* For 10th Gen Intel® processors, only Core™ i9/i7 CPUs -2 x 4-pin Chassis Fan headers
support 2933/2800/2666/2400/2133 natively, others -1 x 4-pin AIO Pump header
will run at the maximum transfer rate of DDR4 2666MHz. • Power related
* Refer to www.asus.com for the Memory QVL -1 x 24-pin Main Power connector
(Qualified Vendors Lists). -1 x 8-pin +12V Power connector
Expansion Slots • Intel® 10th Gen Processors • Storage related
-1 x PCIe 3.0 x16 slot (support x16 mode) -2 x M.2 slots (Key M)
Networks
Networks
• Intel® B460 Chipset -6 x SATA 6Gb/s ports
-1 x PCIe 3.0 x16 slot (max. at x4 mode)* • USB
-3 x PCIe 3.0 x1 slots -1 x USB 3.2 Gen 1 header supports additional 2
Multi-GPU Support • Supports AMD® 2-Way CrossFireX™ Technology USB 3.2 Gen 1 ports
Graphics • 1 x DisplayPort 1.4* -2 x USB 2.0 headers support additional 4 USB
• 1 x HDMI™ 1.4b 2.0 ports
* Graphics specfications may vary between CPU types. • Miscellaneous
* Support DisplayPort 1.4 with max. resolution of -2 x AURA RGB headers
4096 x 2304 @60Hz. Please refer to www.intel.com -1 x Clear CMOS jumper
for any update. -1 x COM Port header
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -1 x Front Panel Audio header (AAFP)
• Intel® B460 Chipset -1 x 20-3 pin System Panel header with Chassis
- M.2_1 slot (Key M) type 2242/2260/2280 (supports intrude function
PCIe 3.0 x4 & SATA modes*) Software Features <ASUS Exclusive Software>
- M.2_2 slot (Key M) type 2242/2260/2280/22110 • Armoury Crate
ODD & Storage
ODD & Storage
(supports PCIe 3.0 x4 mode) - Aura Sync
- 6 x SATA 6Gb/s ports • AI Suite 3
• Intel® Rapid Storage Technology supports SATA Raid - Performance And Power Saving Utility
0,1,5,10 and PCIE Raid 0,1. • Digi+ VRM
• Intel® Optane™ Memory Ready** • EPU
* M.2_1 shares bandwidth with SATA6G_1. When M.2_1 • Fan Xpert 4
runs SATA mode, SATA6G_1 will be disabled. - EZ update
** Only the M.2_2 socket can support Intel® Optane™ - PC Cleaner
memory. - System Information
Ethernet • 1 x Intel® I219V 1Gb Ethernet • AI Charger
Audio • Realtek ALC S1200A 7.1-Channel High Definition Audio CODEC* • ASUS Turbo LAN
- Supports : Jack detection, Multi-streaming, Front • DTS Custom for GAMING Headsets
Panel Jack-retasking • Norton Anti-virus software (Free Trial for 60 days)
- Supports up to 24-Bit/192 kHz playback • DAEMON Tools
- Premium Japanese audio capacitors • Google Chrome Browser & Google Toolbar
- Audio Shielding • TUF GAMING CPU-Z
Server & Workstation
- Dedicated audio PCB layers • WinRAR
Server & Workstation
- DTS Custom for GAMING Headsets <UEFI BIOS>
USB • Rear USB (Total 6 ports) • ASUS EZ DIY
-6 x USB 3.2 Gen 1 ports (6 x Type-A) - ASUS CrashFree BIOS 3
• Front USB (Total 6 ports) - ASUS EZ Flash 3
-1 x USB 3.2 Gen 1 headers supports additional 2 - ASUS UEFI BIOS EZ Mode
USB 3.2 Gen 1 ports BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
-2 x USB 2.0 headers supports additional 4 USB 2.0 Manageability • WOL by PME, PXE
ports Accessories • Cables
ASUS Special Features • ASUS TUF PROTECTION -2 x SATA 6Gb/s cables
- ASUS DIGI+ VRM • Miscellaneous
- ASUS Enhanced DRAM Overcurrent Protection -1 x IO Shield
- ASUS ESD Guards -1 x M.2 SSD screw package (2-in-1 package)
Mini / Stick PC
Mini / Stick PC
- ASUS LANGuard -1 x TUF Gaming sticker
- ASUS Overvoltage Protection • Installation Media
- ASUS SafeSlot Core+ -1 x Support DVD
- ASUS Stainless-Steel Back I/O • Documentation
• ASUS Q-Design : -1 x TUF Certification card
- ASUS Q-DIMM -1 x User’s manual
- ASUS Q-Slot Operating System • Windows® 10 - 64 bit
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Form Factor • ATX form factor: 12.0 in. x 9.6 in. (30.5 cm x 24.4cm)
Boot Device [yellow green])
• ASUS Thermal Solution: Note: The specifications are subject to changes without notice.
