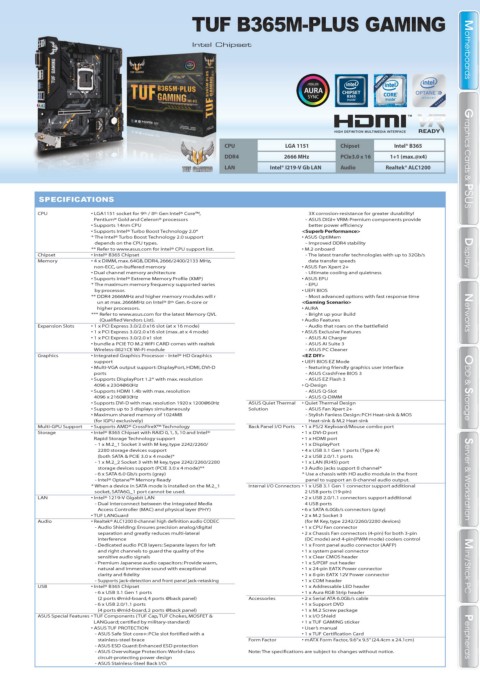

TUF GAMING B460M-PLUS Series TUF B365M-PLUS GAMING

Intel Chipset Intel Chipset Motherboards Motherboards

CPU LGA 1151 Chipset Intel® B365
DDR4 2666 MHz PCIe3.0 x 16 1+1 (max.@x4) Graphics Cards & PSUS
LAN Intel® I219-V Gb LAN Audio Realtek® ALC1200

B460M-PLUS (Wi-Fi)
TUF GAMING
TUF GAMING SPECIFICATIONS
B460M-PLUS CPU • LGA1151 socket for 9 th / 8 th Gen Intel® Core™, - ASUS DIGI+ VRM: Premium components provide
Graphics Cards & PSUS
3X corrosion-resistance for greater durability!
Pentium® Gold and Celeron® processors

better power efficiency
• Supports Intel® Turbo Boost Technology 2.0*
• Supports 14nm CPU <Superb Performance>
* The Intel® Turbo Boost Technology 2.0 support • ASUS OptiMem
depends on the CPU types. - Improved DDR4 stability
** Refer to www.asus.com for Intel® CPU support list. • M.2 onboard
Chipset • Intel® B365 Chipset - The latest transfer technologies with up to 32Gb/s Display
Memory • 4 x DIMM, max. 64GB, DDR4, 2666/2400/2133 MHz, data transfer speeds
non-ECC, un-buffered memory • ASUS Fan Xpert 2+
Display
• Dual channel memory architecture - Ultimate cooling and quietness
• Supports Intel® Extreme Memory Profile (XMP) • ASUS EPU
* The maximum memory frequency supported varies - EPU
by processor. • UEFI BIOS
** DDR4 2666MHz and higher memory modules will r - Most advanced options with fast response time
un at max. 2666MHz on Intel® 8 th Gen. 6-core or <Gaming Scenario>
higher processors. • AURA
*** Refer to www.asus.com for the latest Memory QVL - Bright up your Build Networks Networks
(Qualified Vendors List). • Audio Features
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (at x 16 mode) - Audio that roars on the battlefield
• 1 x PCI Express 3.0/2.0 x16 slot (max. at x 4 mode) • ASUS Exclusive Features
• 1 x PCI Express 3.0/2.0 x1 slot - ASUS Ai Charger
• bundle a PCIE TO M.2 WIFI CARD comes with realtek - ASUS AI Suite 3

Wireless-8821CE Wi-Fi module - ASUS PC Cleaner
Graphics • Integrated Graphics Processor - Intel® HD Graphics <EZ DIY>
support • UEFI BIOS EZ Mode
• Multi-VGA output support: DisplayPort, HDMI, DVI-D - featuring friendly graphics user interface
ports - ASUS CrashFree BIOS 3
• Supports DisplayPort 1.2* with max. resolution - ASUS EZ Flash 3
4096 x 2304@60Hz • Q-Design
• Supports HDMI 1.4b with max. resolution - ASUS Q-Slot ODD & Storage ODD & Storage
4096 x 2160@30Hz - ASUS Q-DIMM
• Supports DVI-D with max. resolution 1920 x 1200@60Hz ASUS Quiet Thermal • Quiet Thermal Design
• Supports up to 3 displays simultaneously Solution - ASUS Fan Xpert 2+
• Maximum shared memory of 1024MB - Stylish Fanless Design: PCH Heat-sink & MOS
(for iGPU exclusively) Heat-sink & M.2 Heat-sink
Multi-GPU Support • Supports AMD® CrossFireX™ Technology Back Panel I/O Ports • 1 x PS/2 Keyboard/Mouse combo port

Storage • Intel® B365 Chipset with RAID 0, 1, 5, 10 and Intel® • 1 x DVI-D port
Rapid Storage Technology support • 1 x HDMI port
- 1 x M.2_1 Socket 3 with M key, type 2242/2260/ • 1 x DisplayPort
2280 storage devices support • 4 x USB 3.1 Gen 1 ports (Type A)
(both SATA & PCIE 3.0 x 4 mode)* • 2 x USB 2.0/1.1 ports
- 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 • 1 x LAN (RJ45) port
storage devices support (PCIE 3.0 x 4 mode)** • 3 Audio jacks support 8 channel*
- 6 x SATA 6.0 Gb/s ports (gray) * Use a chassis with HD audio module in the front
- Intel® Optane™ Memory Ready panel to support an 8-channel audio output. Server & Workstation
* When a device in SATA mode is installed on the M.2_1 Internal I/O Connectors • 1 x USB 3.1 Gen 1 connector support additional
socket, SATA6G_1 port cannot be used. 2 USB ports (19-pin)
LAN • Intel® 1219-V Gigabit LAN • 2 x USB 2.0/1.1 connectors support additional

- Dual interconnect between the integrated Media 4 USB ports
Access Controller (MAC) and physical layer (PHY) • 6 x SATA 6.0Gb/s connectors (gray)

• TUF LANGuard • 2 x M.2 Socket 3

Audio • Realtek® ALC1200 8-channel high definition audio CODEC (for M Key, type 2242/2260/2280 devices)
Server & Workstation

- Audio Shielding: Ensures precision analog/digital • 1 x CPU Fan connector
separation and greatly reduces multi-lateral • 2 x Chassis Fan connectors (4-pin) for both 3-pin

interference (DC mode) and 4-pin(PWM mode) coolers control

- Dedicated audio PCB layers: Separate layers for left • 1 x Front panel audio connector (AAFP)

and right channels to guard the quality of the • 1 x system panel connector

sensitive audio signals • 1 x Clear CMOS header

- Premium Japanese audio capacitors: Provide warm, • 1 x S/PDIF out header

natural and immersive sound with exceptional • 1 x 24-pin EATX Power connector Mini / Stick PC

clarity and fidelity • 1 x 8-pin EATX 12V Power connector
- Supports jack-detection and front panel jack-retasking • 1 x COM header

USB • Intel® B365 Chipset • 1 x Addressable LED header

- 6 x USB 3.1 Gen 1 ports • 1 x Aura RGB Strip header
Mini / Stick PC
(2 ports @mid-board, 4 ports @back panel) Accessories • 2 x Serial ATA 6.0Gb/s cable
- 6 x USB 2.0/1.1 ports • 1 x Support DVD

(4 ports @mid-board, 2 ports @back panel) • 1 x M.2 Screw package

ASUS Special Features • TUF Components (TUF Cap, TUF Chokes, MOSFET & • 1 x I/O Shield

LANGuard; certified by military-standard) • 1 x TUF GAMING sticker
• ASUS TUF PROTECTION • User’s manual
- ASUS Safe Slot core+: PCIe slot fortified with a • 1 x TUF Certification Card Peripherals Peripherals

stainless-steel brace Form Factor • mATX Form Factor, 9.6”x 9.5” (24.4cm x 24.1cm)
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class Note: The specifications are subject to changes without notice.
circuit-protecting power design
- ASUS Stainless-Steel Back I/O:
