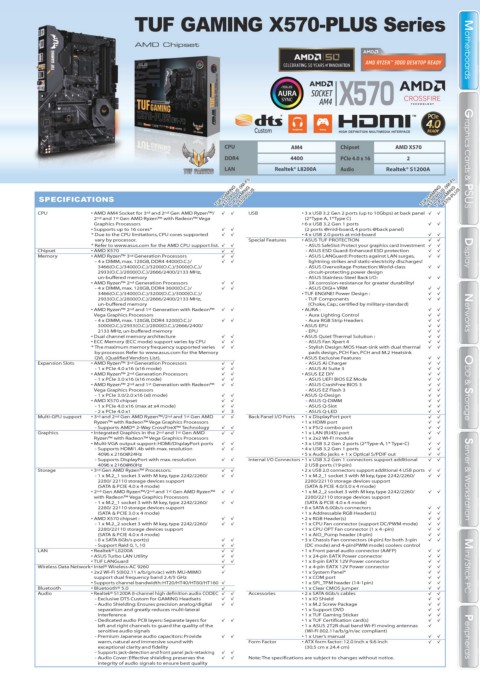

TUF GAMING X570-PLUS Series

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD X570
DDR4 4400 PCIe 4.0 x 16 2 Graphics Cards & PSUS
LAN Realtek® L8200A Audio Realtek® S1200A
X570-PLUS (WI-FI)
X570-PLUS (WI-FI)

TUF GAMING TUF GAMING
X570-PLUS
X570-PLUS
SPECIFICATIONS TUF GAMING • 3 x USB 3.2 Gen 2 ports (up to 10Gbps) at back panel TUF GAMING
Graphics Cards & PSUS
CPU • AMD AM4 Socket for 3 rd and 2 nd Gen AMD Ryzen™/ USB
2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega (2*Type A, 1*Type C)
Graphics Processors • 6 x USB 3.2 Gen 1 ports
• Supports up to 16 cores* (2 ports @mid-board, 4 ports @back panel)
* Due to the CPU limitations, CPU cores supported • 4 x USB 2.0 ports at mid-board
vary by processor. Special Features • ASUS TUF PROTECTION
* Refer to www.asus.com for the AMD CPU support list. - ASUS SafeSlot: Protect your graphics card Investment
Chipset • AMD X570 - ASUS ESD Guard: Enhanced ESD protection
Memory • AMD Ryzen™ 3 rd Generation Processors - ASUS LANGuard: Protects against LAN surges, Display
- 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/ lightning strikes and static-electricity discharges!
3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/ - ASUS Overvoltage Protection: World-class
Display
2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, circuit-protecting power design
un-buffered memory - ASUS Stainless-Steel Back I/O:
• AMD Ryzen™ 2 nd Generation Processors 3X corrosion-resistance for greater durability!
- 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/ - ASUS DIGI+ VRM
3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/ • TUF ENGINE! Power Design :
2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, - TUF Components
un-buffered memory (Choke, Cap.; certified by military-standard)
• AMD Ryzen™ 2 nd and 1 st Generation with Radeon™ • AURA :
Vega Graphics Processors - Aura Lighting Control Networks Networks
- 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/ - Aura RGB Strip Headers
3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/ • ASUS EPU
2133 MHz, un-buffered memory - EPU
• Dual channel memory architecture • ASUS Quiet Thermal Solution :
• ECC Memory (ECC mode) support varies by CPU - ASUS Fan Xpert 4
* The maximum memory frequency supported varies - Stylish Design: MOS Heat-sink with dual thermal
by processor. Refer to www.asus.com for the Memory pads design, PCH Fan, PCH and M.2 Heatsink
QVL (Qualified Vendors List). • ASUS Exclusive Features
Expansion Slots • AMD Ryzen™ 3 rd Generation Processors - ASUS Ai Charger
- 1 x PCIe 4.0 x16 (x16 mode) - ASUS AI Suite 3
• AMD Ryzen™ 2 nd Generation Processors • ASUS EZ DIY
- 1 x PCIe 3.0 x16 (x16 mode) - ASUS UEFI BIOS EZ Mode
• AMD Ryzen™ 2 nd and 1 st Generation with Radeon™ - ASUS CrashFree BIOS 3
Vega Graphics Processors - ASUS EZ Flash 3 ODD & Storage ODD & Storage
- 1 x PCIe 3.0/2.0 x16 (x8 mode) • ASUS Q-Design
• AMD X570 chipset - ASUS Q-DIMM
- 1 x PCIe 4.0 x16 (max at x4 mode) - ASUS Q-Slot
- 2 x PCIe 4.0 x1 3 - ASUS Q-LED
Multi-GPU support • 3 rd and 2 nd Gen AMD Ryzen™/2 nd and 1 st Gen AMD Back Panel I/O Ports • 1 x DisplayPort port
Ryzen™ with Radeon™ Vega Graphics Processors • 1 x HDMI port
- Supports AMD® 2-Way CrossFireX™ Technology • 1 x PS/2 combo port
Graphics • Integrated Graphics in the 2 nd and 1 st Gen AMD • 1 x LAN (RJ45) port
Ryzen™ with Radeon™ Vega Graphics Processors • 1 x 2x2 WI-FI module
• Multi-VGA output support: HDMI/DisplayPort ports • 3 x USB 3.2 Gen 2 ports (2*Type-A, 1* Type-C)
- Supports HDMI1.4b with max. resolution • 4 x USB 3.2 Gen 1 ports
4096 x 2160@24Hz • 5 x Audio jacks + 1 x Optical S/PDIF out
- Supports DisplayPort with max. resolution Internal I/O Connectors • 1 x USB 3.2 Gen 1 connectors support additional
4096 x 2160@60Hz 2 USB ports (19-pin)
Storage • 3 rd Gen AMD Ryzen™ Processors: • 2 x USB 2.0 connectors support additional 4 USB ports
- 1 x M.2_1 socket 3 with M key, type 2242/2260/ • 1 x M.2_1 socket 3 with M key, type 2242/2260/
2280/ 22110 storage devices support 2280/22110 storage devices support Server & Workstation
(SATA & PCIE 4.0 x 4 mode) (SATA & PCIE 4.0/3.0 x 4 mode)
• 2 nd Gen AMD Ryzen™/2 nd and 1 st Gen AMD Ryzen™ • 1 x M.2_2 socket 3 with M key, type 2242/2260/
with Radeon™ Vega Graphics Processors 2280/22110 storage devices support
- 1 x M.2_1 socket 3 with M key, type 2242/2260/ (SATA & PCIE 4.0 x 4 mode)
2280/ 22110 storage devices support • 8 x SATA 6.0Gb/s connectors
(SATA & PCIE 3.0 x 4 mode) • 1 x Addressable RGB Header(s)
• AMD X570 chipset : • 2 x RGB Header(s)
Server & Workstation
- 1 x M.2_2 socket 3 with M key, type 2242/2260/ • 1 x CPU Fan connector (support DC/PWM mode)
2280/22110 storage devices support • 1 x CPU OPT Fan connector (1 x 4 -pin)
(SATA & PCIE 4.0 x 4 mode) • 1 x AIO_Pump header (4-pin)
- 8 x SATA 6Gb/s port(s) • 3 x Chassis Fan connectors (4-pin) for both 3-pin
- Support Raid 0, 1, 10 (DC mode) and 4-pin(PWM mode) coolers control
LAN • Realtek® L8200A • 1 x Front panel audio connector (AAFP)
• ASUS Turbo LAN Utility • 1 x 24-pin EATX Power connector
• TUF LANGuard • 1 x 8-pin EATX 12V Power connector
Wireless Data Network • Intel® Wireless-AC 9260 • 1 x 4-pin EATX 12V Power connector Mini / Stick PC
• 2x2 Wi-Fi 5(802.11 a/b/g/n/ac) with MU-MIMO • 1 x System Panel*
support dual frequency band 2.4/5 GHz • 1 x COM port
• Supports channel bandwidth: HT20/HT40/HT80/HT160 • 1 x SPI_TPM header (14-1pin)
Bluetooth • Bluetooth® 5.0 • 1 x Clear CMOS jumper
Audio • Realtek® S1200A 8-channel high definition audio CODEC Accessories • 2 x SATA 6Gb/s cables

Mini / Stick PC
- Exclusive DTS Custom for GAMING Headsets • 1 x IO Shield
- Audio Shielding: Ensures precision analog/digital • 1 x M.2 Screw Package
separation and greatly reduces multi-lateral • 1 x Support DVD
interference • 1 x TUF Gaming Sticker
- Dedicated audio PCB layers: Separate layers for • 1 x TUF Certification card(s)
left and right channels to guard the quality of the • 1 x ASUS 2T2R dual band Wi-Fi moving antennas
sensitive audio signals (Wi-Fi 802.11a/b/g/n/ac compliant)
- Premium Japanese audio capacitors: Provide • 1 x User’s manual Peripherals Peripherals
warm, natural and immersive sound with Form Factor • ATX form factor: 12.0 inch x 9.6 inch
exceptional clarity and fidelity (30.5 cm x 24.4 cm)
- Supports jack-detection and front panel jack-retasking
- Audio Cover: Effective shielding preserves the Note: The specifications are subject to changes without notice.
