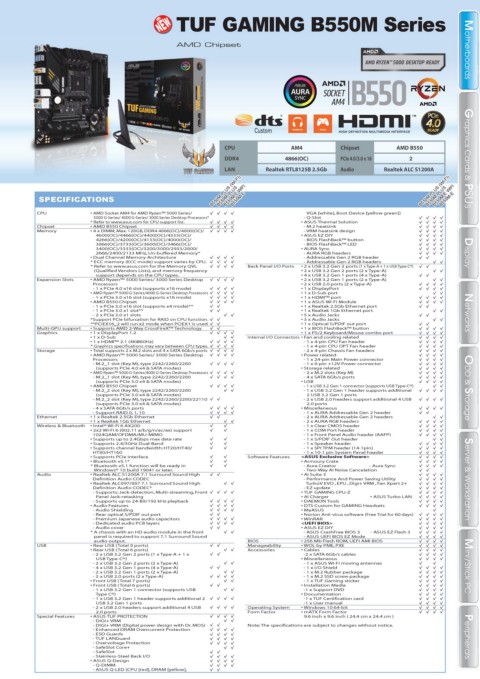

Page 83 - ASUS_WORLD_134_ebook

TUF GAMING B550M Series

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD B550
DDR4 4866(OC) PCIe 4.0/3.0 x 16 2 Graphics Cards & PSUS
LAN Realtek RTL8125B 2.5Gb Audio Realtek ALC S1200A
B550M-PLUS (WI-FI) B550M-PLUS (WI-FI)
B550M-E WIFI
B550M-E WIFI
B550M-E
B550M-E
SPECIFICATIONS B550M-PLUS B550M-PLUS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for AMD Ryzen™ 5000 Series/ VGA [white], Boot Device [yellow green])
5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors* - Q-Slot
* Refer to www.asus.com for CPU support list. • ASUS Thermal Solution
Chipset • AMD B550 Chipset - M.2 heatsink
Memory • 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/ - VRM heatsink design
4600(OC)/4466(OC)/4400(OC)/4333(OC)/ • ASUS EZ DIY
4266(OC)/4200(OC)/4133(OC)/4000(OC)/ - BIOS FlashBack™ button
3866(OC)/3733(OC)/3600(OC)/3466(OC)/ - BIOS FlashBack™ LED
3400(OC)/3333(OC)/3200/3000/2933/2800/ • AURA Sync
2666/2400/2133 MHz, Un-buffered Memory* - AURA RGB headers Display Display
• Dual Channel Memory Architecture - Addressable Gen 2 RGB header
* ECC memory (ECC mode) support varies by CPU. - Addressable Gen 2 RGB headers
* Refer to www.asus.com for the Memory QVL Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
(Qualified Vendors Lists), and memory frequency • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
support depends on the CPU types. • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
Expansion Slots • AMD Ryzen™ 5000 Series/ 3000 Series Desktop • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
Processors • 2 x USB 2.0 ports (2 x Type-A)
- 1 x PCIe 4.0 x16 slot (supports x16 mode) • 1 x DisplayPort
• AMD Ryzen™ 5000 G-Series/4000 G-Series Desktop Processors • 1 x D-Sub port
- 1 x PCIe 3.0 x16 slot (supports x16 mode) • 1 x HDMI™ port
• AMD B550 Chipset • 1 x ASUS Wi-Fi Module
- 1 x PCIe 3.0 x16 slot (supports x4 mode)** • 1 x Realtek 2.5Gb Ethernet port
- 1 x PCIe 3.0 x1 slot** • 1 x Realtek 1Gb Ethernet port Networks
- 2 x PCIe 3.0 x1 slots • 5 x Audio Jacks
*Support PCIe bifurcation for RAID on CPU function. • 3 x Audio Jacks
**PCIEX16_2 will run x2 mode when PCIEX1 is used. • 1 x Optical S/PDIF out port
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology • 1 x BIOS FlashBack™ button
Graphics • 1 x DisplayPort 1.2 • 1 x PS/2 Keyboard/Mouse combo port
Networks
• 1 x D-Sub Internal I/O Connectors • Fan and cooling related
• 1 x HDMI™ 2.1 (4K@60Hz) - 1 x 4-pin CPU Fan header
* Graphics specifications may vary between CPU types. - 1 x 4-pin CPU OPT Fan header
Storage • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports - 2 x 4-pin Chassis Fan headers
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop • Power related
Processors - 1 x 24-pin Main Power connector
- M.2_1 slot (Key M), type 2242/2260/2280 - 1 x 8-pin +12V Power connector
(supports PCIe 4.0 x4 & SATA modes) • Storage related
• AMD Ryzen™ 5000 G-Series/4000 G-Series Desktop Processors - 2 x M.2 slots (Key M)
- M.2_1 slot (Key M), type 2242/2260/2280 - 4 x SATA 6Gb/s ports
(supports PCIe 3.0 x4 & SATA modes) • USB
• AMD B550 Chipset - 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) ODD & Storage
- M.2_2 slot (Key M), type 2242/2260/2280 - 1 x USB 3.2 Gen 1 header supports additional
(supports PCIe 3.0 x4 & SATA modes) 2 USB 3.2 Gen 1 ports
- M.2_2 slot (Key M), type 2242/2260/2280/22110 - 2 x USB 2.0 headers support additional 4 USB
(supports PCIe 3.0 x4 & SATA modes) 2.0 ports
- 4 x SATA 6Gb/s ports • Miscellaneous
- Support RAID 0, 1, 10 - 1 x AURA Addressable Gen 2 header
Ethernet • 1 x Realtek 2.5Gb Ethernet - 2 x AURA Addressable Gen 2 headers
• 1 x Realtek 1Gb Ethernet - 2 x AURA RGB headers
ODD & Storage
Wireless & Bluetooth • Intel® Wi-Fi 6 AX200 - 1 x Clear CMOS header
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support - 1 x COM Port header
1024QAM/OFDMA/MU-MIMO - 1 x Front Panel Audio header (AAFP)
• Supports up to 2.4Gbps max data rate - 1 x S/PDIF Out header
• Supports 2.4/5GHz Dual-Band - 1 x Speaker header
• Supports channel bandwidth: HT20/HT40/ - 1 x SPI TPM header (14-1pin)
HT80/HT160 - 1 x 10-1 pin System Panel header
• Supports PCIe interface Software Features <ASUS Exclusive Software>
• Bluetooth v5.1* • Armoury Crate
* Bluetooth v5.1 function will be ready in - Aura Creator - Aura Sync
Windows® 10 build 19041 or later. - Two-Way AI Noise Cancelation
Audio • Realtek ALC S1200A 7.1 Surround Sound High • AI Suite 3
Definition Audio CODEC - Performance And Power Saving Utility Server & Workstation
• Realtek ALC897/887 7.1 Surround Sound High TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
Definition Audio CODEC* - EZ update
- Supports: Jack-detection, Multi-streaming, Front • TUF GAMING CPU-Z
Panel Jack-retasking • AI Charger • ASUS Turbo LAN
- Supports up to 24-Bit/192 kHz playback • DAEMON Tools
• Audio Features • DTS Custom for GAMING Headsets
- Audio Shielding • MyASUS
- Rear optical S/PDIF out port • Norton Anti-virus software (Free Trial for 60 days)
Server & Workstation
- Premium Japanese audio capacitors • WinRAR
- Dedicated audio PCB layers <UEFI BIOS>
- Audio cover • ASUS EZ DIY
* A chassis with an HD audio module in the front - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
panel is required to support 7.1 Surround Sound - ASUS UEFI BIOS EZ Mode
audio output. BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
USB • Rear USB (Total 8 ports) Manageability • WOL by PME, PXE
• Rear USB (Total 6 ports) Accessories • Cables
- 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x -2 x SATA 6Gb/s cables
USB Type-C®) • Miscellaneous
- 2 x USB 3.2 Gen 2 ports (2 x Type-A) - 1 x ASUS Wi-Fi moving antennas
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 1 x I/O Shield Mini / Stick PC Mini / Stick PC
- 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 1 x M.2 Rubber package
- 2 x USB 2.0 ports (2 x Type-A) - 1 x M.2 SSD screw package
• Front USB (Total 7 ports) - 1 x TUF Gaming sticker
• Front USB (Total 6 ports) • Installation Media
- 1 x USB 3.2 Gen 1 connector (supports USB -1 x Support DVD
Type C®) • Documentation
- 1 x USB 3.2 Gen 1 header supports additional 2 -1 x TUF Certification card
USB 3.2 Gen 1 ports -1 x User manual
- 2 x USB 2.0 headers support additional 4 USB Operating System • Windows 10 64-bit
2.0 ports Form Factor • mATX Form Factor
Special Features • ASUS TUF PROTECTION 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- DIGI+ VRM
- DIGI+ VRM (Digital power design with Dr. MOS) Note: The specifications are subject to changes without notice.
- Enhanced DRAM Overcurrent Protection
- ESD Guards Peripherals Peripherals
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- SafeSlot
- Stainless-Steel Back I/O
• ASUS Q-Design
- Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow],
