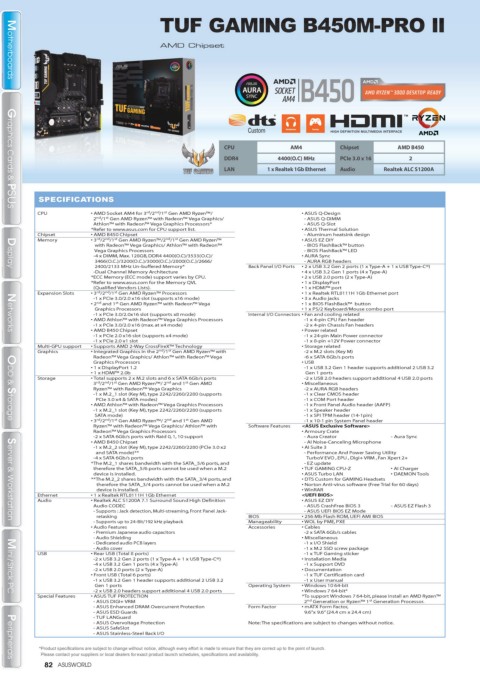

Page 84 - ASUS_WORLD_134_ebook

TUF GAMING B450M-PRO II

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD B450
DDR4 4400(O.C) MHz PCIe 3.0 x 16 2
LAN 1 x Realtek 1Gb Ethernet Audio Realtek ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for 3 rd /2 nd /1 st Gen AMD Ryzen™/ • ASUS Q-Design
2 nd /1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ - ASUS Q-DIMM
Athlon™ with Radeon™ Vega Graphics Processors* - ASUS Q-Slot
*Refer to www.asus.com for CPU support list. • ASUS Thermal Solution
Chipset • AMD B450 Chipset - Aluminum heatsink design
Memory • 3 rd /2 nd /1 st Gen AMD Ryzen™/2 nd /1 st Gen AMD Ryzen™ • ASUS EZ DIY
with Radeon™ Vega Graphics/ Athlon™ with Radeon™ - BIOS FlashBack™ button
Vega Graphics Processors - BIOS FlashBack™ LED
-4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/ • AURA Sync
3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/ - AURA RGB headers
2400/2133 MHz Un-buffered Memory* Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
Display
Display
-Dual Channel Memory Architecture • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
*ECC Memory (ECC mode) support varies by CPU. • 2 x USB 2.0 ports (2 x Type-A)
*Refer to www.asus.com for the Memory QVL • 1 x DisplayPort
(Qualified Vendors Lists). • 1 x HDMI™ port
Expansion Slots • 3 rd /2 nd /1 st Gen AMD Ryzen™ Processors • 1 x Realtek RTL8111H 1Gb Ethernet port
-1 x PCIe 3.0/2.0 x16 slot (supports x16 mode) • 3 x Audio jacks
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega • 1 x BIOS FlashBack™ button
Graphics Processors • 1 x PS/2 Keyboard/Mouse combo port
-1 x PCIe 3.0/2.0x16 slot (supports x8 mode) Internal I/O Connectors • Fan and cooling related
• AMD Athlon™ with Radeon™ Vega Graphics Processors -1 x 4-pin CPU Fan header
-1 x PCIe 3.0/2.0 x16 (max. at x4 mode) -2 x 4-pin Chassis Fan headers
• AMD B450 Chipset • Power related
Networks
Networks
-1 x PCIe 2.0 x16 slot (supports x4 mode) -1 x 24-pin Main Power connector
-1 x PCIe 2.0 x1 slot -1 x 8-pin +12V Power connector
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology • Storage related
Graphics • Integrated Graphics in the 2 nd /1 st Gen AMD Ryzen™ with -2 x M.2 slots (Key M)
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega -6 x SATA 6Gb/s ports
Graphics Processors • USB
• 1 x DisplayPort 1.2 -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
• 1 x HDMI™ 2.0b Gen 1 ports
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD • Miscellaneous
Ryzen™ with Radeon™ Vega Graphics -2 x AURA RGB headers
-1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports -1 x Clear CMOS header
PCIe 3.0 x4 & SATA modes) -1 x COM Port header
• AMD Athlon™ with Radeon™ Vega Graphics Processors -1 x Front Panel Audio header (AAFP)
-1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports -1 x Speaker header
SATA mode) -1 x SPI TPM header (14-1pin)
• 3 rd /2 -1 x 10-1 pin System Panel header
ODD & Storage nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD
ODD & Storage
Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Software Features <ASUS Exclusive Software>
Radeon™ Vega Graphics Processors • Armoury Crate
-2 x SATA 6Gb/s ports with Raid 0, 1, 10 support - Aura Creator - Aura Sync
• AMD B450 Chipset - AI Noise-Canceling Microphone
-1 x M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x2 • AI Suite 3
and SATA mode)** - Performance And Power Saving Utility
-4 x SATA 6Gb/s ports TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
*The M.2_1 shares bandwidth with the SATA_5/6 ports, and - EZ update
therefore the SATA_5/6 ports cannot be used when a M.2 • TUF GAMING CPU-Z • AI Charger
device is installed. • ASUS Turbo LAN • DAEMON Tools
**The M.2_2 shares bandwidth with the SATA_3/4 ports, and • DTS Custom for GAMING Headsets
therefore the SATA_3/4 ports cannot be used when a M.2 • Norton Anti-virus software (Free Trial for 60 days)
device is installed. • WinRAR
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet <UEFI BIOS>
Audio • Realtek ALC S1200A 7.1 Surround Sound High Definition • ASUS EZ DIY
Audio CODEC - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
- Supports : Jack detection, Multi-streaming, Front Panel Jack- - ASUS UEFI BIOS EZ Mode
retasking BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- Supports up to 24-Bit/192 kHz playback Manageability • WOL by PME, PXE
Server & Workstation
Server & Workstation
• Audio Features Accessories • Cables
- Premium Japanese audio capacitors -2 x SATA 6Gb/s cables
- Audio Shielding • Miscellaneous
- Dedicated audio PCB layers -1 x I/O Shield
- Audio cover -1 x M.2 SSD screw package
USB • Rear USB (Total 8 ports) -1 x TUF Gaming sticker
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) • Installation Media
-4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x Support DVD
-2 x USB 2.0 ports (2 x Type-A) • Documentation
• Front USB (Total 6 ports) -1 x TUF Certification card
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 -1 x User manual
Gen 1 ports Operating System • Windows 10 64-bit
-2 x USB 2.0 headers support additional 4 USB 2.0 ports • Windows 7 64-bit*
Mini / Stick PC
Mini / Stick PC
Special Features • ASUS TUF PROTECTION *To support Windows 7 64-bit, please install an AMD Ryzen™
- ASUS DIGI+ VRM 2 nd Generation or Ryzen™ 1 st Generation Processor.
- ASUS Enhanced DRAM Overcurrent Protection Form Factor • mATX Form Factor,
- ASUS ESD Guards 9.6”x 9.6” (24.4 cm x 24.4 cm)
- TUF LANGuard
- ASUS Overvoltage Protection Note: The specifications are subject to changes without notice.
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
