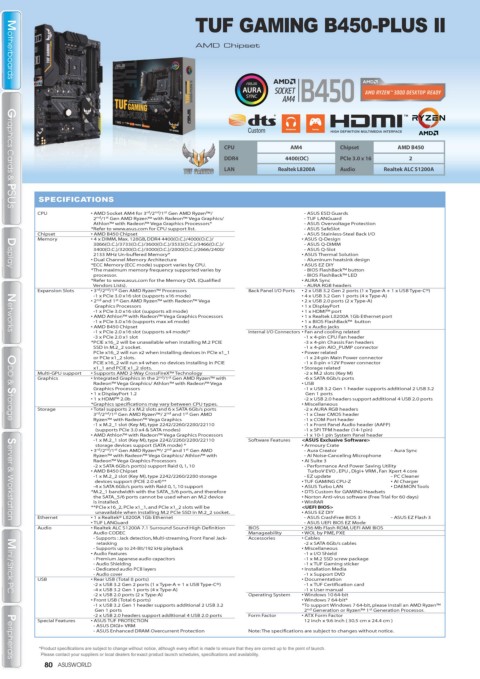

Page 82 - ASUS_WORLD_134_ebook

TUF GAMING B450-PLUS II

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD B450
DDR4 4400(OC) PCIe 3.0 x 16 2
LAN Realtek L8200A Audio Realtek ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for 3 rd /2 nd /1 st Gen AMD Ryzen™/ - ASUS ESD Guards
2 nd /1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ - TUF LANGuard
Athlon™ with Radeon™ Vega Graphics Processors* - ASUS Overvoltage Protection
*Refer to www.asus.com for CPU support list. - ASUS SafeSlot
Chipset • AMD B450 Chipset - ASUS Stainless-Steel Back I/O
Memory • 4 x DIMM, Max. 128GB, DDR4 4400(O.C.)/4000(O.C.)/ • ASUS Q-Design
3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C.)/3466(O.C.)/ - ASUS Q-DIMM
3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/ - ASUS Q-Slot
2133 MHz Un-buffered Memory* • ASUS Thermal Solution
• Dual Channel Memory Architecture - Aluminum heatsink design
*ECC Memory (ECC mode) support varies by CPU. • ASUS EZ DIY
Display
*The maximum memory frequency supported varies by - BIOS FlashBack™ button
Display
processor. - BIOS FlashBack™ LED
*Refer to www.asus.com for the Memory QVL (Qualified • AURA Sync
Vendors Lists). - AURA RGB headers
Expansion Slots • 3 rd /2 nd /1 st Gen AMD Ryzen™ Processors Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
-1 x PCIe 3.0 x16 slot (supports x16 mode) • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega • 2 x USB 2.0 ports (2 x Type-A)
Graphics Processors • 1 x DisplayPort
-1 x PCIe 3.0 x16 slot (supports x8 mode) • 1 x HDMI™ port
• AMD Athlon™ with Radeon™ Vega Graphics Processors • 1 x Realtek L8200A 1Gb Ethernet port
-1 x PCIe 3.0 x16 (supports max x4 mode) • 1 x BIOS FlashBack™ button
• AMD B450 Chipset • 5 x Audio jacks
-1 x PCIe 2.0 x16 slot (supports x4 mode)* Internal I/O Connectors • Fan and cooling related
Networks
Networks
-3 x PCIe 2.0 x1 slot -1 x 4-pin CPU Fan header
*PCIE x16_2 will be unavailable when installing M.2 PCIE -3 x 4-pin Chassis Fan headers
SSD in M.2_2 socket. -1 x 4-pin AIO_PUMP connector
PCIe x16_2 will run x2 when installing devices in PCIe x1_1 • Power related
or PCIe x1_2 slots. -1 x 24-pin Main Power connector
PCIE x16_2 will run x4 when no devices installing in PCIE -1 x 8-pin +12V Power connector
x1_1 and PCIE x1_2 slots. • Storage related
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology -2 x M.2 slots (Key M)
Graphics • Integrated Graphics in the 2 nd /1 st Gen AMD Ryzen™ with -6 x SATA 6Gb/s ports
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega • USB
Graphics Processors -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
• 1 x DisplayPort 1.2 Gen 1 ports
• 1 x HDMI™ 2.0b -2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Graphics specifications may vary between CPU types. • Miscellaneous
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -2 x AURA RGB headers
3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD -1 x Clear CMOS header
Ryzen™ with Radeon™ Vega Graphics -1 x COM Port header
ODD & Storage
ODD & Storage
-1 x M.2_1 slot (Key M), type 2242/2260/2280/22110 -1 x Front Panel Audio header (AAFP)
(supports PCIe 3.0 x4 & SATA modes) -1 x SPI TPM header (14-1pin)
• AMD Athlon™ with Radeon™ Vega Graphics Processors -1 x 10-1 pin System Panel header
-1 x M.2_1 slot (Key M), type 2242/2260/2280/22110 Software Features <ASUS Exclusive Software>
storage devices support (SATA mode) * • Armoury Crate
• 3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD - Aura Creator - Aura Sync
Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with - AI Noise-Canceling Microphone
Radeon™ Vega Graphics Processors • AI Suite 3
-2 x SATA 6Gb/s port(s) support Raid 0, 1, 10 - Performance And Power Saving Utility
• AMD B450 Chipset TurboV EVO , EPU , Digi+ VRM , Fan Xpert 4 core
-1 x M.2_2 slot (Key M), type 2242/2260/2280 storage - EZ update - PC Cleaner
devices support (PCIE 2.0 x4)** • TUF GAMING CPU-Z • AI Charger
-4 x SATA 6Gb/s ports with Raid 0, 1, 10 support • ASUS Turbo LAN • DAEMON Tools
*M.2_1 bandwidth with the SATA_5/6 ports, and therefore • DTS Custom for GAMING Headsets
the SATA_5/6 ports cannot be used when an M.2 device • Norton Anti-virus software (Free Trial for 60 days)
is installed. • WinRAR
**PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be <UEFI BIOS>
unavailable when installing M.2 PCIe SSD in M.2_2 socket. • ASUS EZ DIY
Ethernet • 1 x Realtek® L8200A 1Gb Ethernet - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
Server & Workstation
Server & Workstation
• TUF LANGuard - ASUS UEFI BIOS EZ Mode
Audio • Realtek ALC S1200A 7.1 Surround Sound High Definition BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
Audio CODEC Manageability • WOL by PME, PXE
- Supports : Jack detection, Multi-streaming, Front Panel Jack- Accessories • Cables
retasking -2 x SATA 6Gb/s cables
- Supports up to 24-Bit/192 kHz playback • Miscellaneous
• Audio Features -1 x I/O Shield
- Premium Japanese audio capacitors -1 x M.2 SSD screw package
- Audio Shielding -1 x TUF Gaming sticker
- Dedicated audio PCB layers • Installation Media
- Audio cover -1 x Support DVD
USB • Rear USB (Total 8 ports) • Documentation
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) -1 x TUF Certification card
-4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x User manual
-2 x USB 2.0 ports (2 x Type-A) Operating System • Windows 10 64-bit
Mini / Stick PC
Mini / Stick PC
• Front USB (Total 6 ports) • Windows 7 64-bit*
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 *To support Windows 7 64-bit, please install an AMD Ryzen™
Gen 1 ports 2 nd Generation or Ryzen™ 1 st Generation Processor.
-2 x USB 2.0 headers support additional 4 USB 2.0 ports Form Factor • ATX Form Factor
Special Features • ASUS TUF PROTECTION 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection Note: The specifications are subject to changes without notice.
