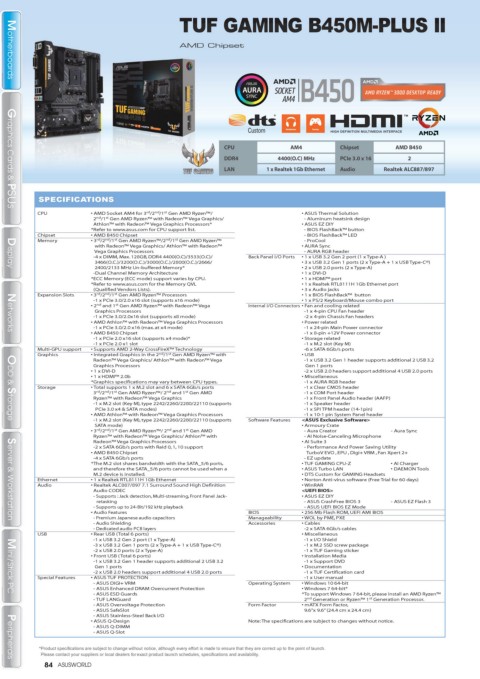

TUF GAMING B450M-PLUS II

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD B450
DDR4 4400(O.C) MHz PCIe 3.0 x 16 2
LAN 1 x Realtek 1Gb Ethernet Audio Realtek ALC887/897

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for 3 rd /2 nd /1 st Gen AMD Ryzen™/ • ASUS Thermal Solution
2 nd /1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ - Aluminum heatsink design
Athlon™ with Radeon™ Vega Graphics Processors* • ASUS EZ DIY
*Refer to www.asus.com for CPU support list. - BIOS FlashBack™ button
Chipset • AMD B450 Chipset - BIOS FlashBack™ LED
Memory • 3 rd /2 nd /1 st Gen AMD Ryzen™/2 nd /1 st Gen AMD Ryzen™ - ProCool
with Radeon™ Vega Graphics/ Athlon™ with Radeon™ • AURA Sync
Vega Graphics Processors - AURA RGB header
-4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/ Back Panel I/O Ports • 1 x USB 3.2 Gen 2 port (1 x Type-A )
3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/ • 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®)
2400/2133 MHz Un-buffered Memory* • 2 x USB 2.0 ports (2 x Type-A)
Display
Display
-Dual Channel Memory Architecture • 1 x DVI-D
*ECC Memory (ECC mode) support varies by CPU. • 1 x HDMI™ port
*Refer to www.asus.com for the Memory QVL • 1 x Realtek RTL8111H 1Gb Ethernet port
(Qualified Vendors Lists). • 3 x Audio jacks
Expansion Slots • 3 rd /2 nd /1 st Gen AMD Ryzen™ Processors • 1 x BIOS FlashBack™ button
-1 x PCIe 3.0/2.0 x16 slot (supports x16 mode) • 1 x PS/2 Keyboard/Mouse combo port
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Internal I/O Connectors • Fan and cooling related
Graphics Processors -1 x 4-pin CPU Fan header
-1 x PCIe 3.0/2.0x16 slot (supports x8 mode) -2 x 4-pin Chassis Fan headers
• AMD Athlon™ with Radeon™ Vega Graphics Processors • Power related
-1 x PCIe 3.0/2.0 x16 (max. at x4 mode) -1 x 24-pin Main Power connector
• AMD B450 Chipset -1 x 8-pin +12V Power connector
Networks
Networks
-1 x PCIe 2.0 x16 slot (supports x4 mode)* • Storage related
-1 x PCIe 2.0 x1 slot -1 x M.2 slot (Key M)
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology -6 x SATA 6Gb/s ports
Graphics • Integrated Graphics in the 2 nd /1 st Gen AMD Ryzen™ with • USB
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
Graphics Processors Gen 1 ports
• 1 x DVI-D -2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x HDMI™ 2.0b • Miscellaneous
*Graphics specifications may vary between CPU types. -1 x AURA RGB header
Storage • Total supports 1 x M.2 slot and 6 x SATA 6Gb/s ports -1 x Clear CMOS header
3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD -1 x COM Port header
Ryzen™ with Radeon™ Vega Graphics -1 x Front Panel Audio header (AAFP)
-1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports -1 x Speaker header
PCIe 3.0 x4 & SATA modes) -1 x SPI TPM header (14-1pin)
• AMD Athlon™ with Radeon™ Vega Graphics Processors -1 x 10-1 pin System Panel header
-1 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports Software Features <ASUS Exclusive Software>
ODD & Storage
ODD & Storage
SATA mode) • Armoury Crate
• 3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD - Aura Creator - Aura Sync
Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with - AI Noise-Canceling Microphone
Radeon™ Vega Graphics Processors • AI Suite 3
-2 x SATA 6Gb/s ports with Raid 0, 1, 10 support - Performance And Power Saving Utility
• AMD B450 Chipset TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
-4 x SATA 6Gb/s ports - EZ update
*The M.2 slot shares bandwidth with the SATA_5/6 ports, • TUF GAMING CPU-Z • AI Charger
and therefore the SATA_5/6 ports cannot be used when a • ASUS Turbo LAN • DAEMON Tools
M.2 device is installed. • DTS Custom for GAMING Headsets
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • Norton Anti-virus software (Free Trial for 60 days)
Audio • Realtek ALC887/897 7.1 Surround Sound High Definition • WinRAR
Audio CODEC <UEFI BIOS>
- Supports : Jack detection, Multi-streaming, Front Panel Jack- • ASUS EZ DIY
retasking - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
- Supports up to 24-Bit/192 kHz playback - ASUS UEFI BIOS EZ Mode
• Audio Features BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- Premium Japanese audio capacitors Manageability • WOL by PME, PXE
Server & Workstation
Server & Workstation
- Audio Shielding Accessories • Cables
- Dedicated audio PCB layers -2 x SATA 6Gb/s cables
USB • Rear USB (Total 6 ports) • Miscellaneous
-1 x USB 3.2 Gen 2 port (1 x Type-A) -1 x I/O Shield
-3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®) -1 x M.2 SSD screw package
-2 x USB 2.0 ports (2 x Type-A) -1 x TUF Gaming sticker
• Front USB (Total 6 ports) • Installation Media
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 -1 x Support DVD
Gen 1 ports • Documentation
-2 x USB 2.0 headers support additional 4 USB 2.0 ports -1 x TUF Certification card
Special Features • ASUS TUF PROTECTION -1 x User manual
- ASUS DIGI+ VRM Operating System • Windows 10 64-bit
- ASUS Enhanced DRAM Overcurrent Protection • Windows 7 64-bit*
- ASUS ESD Guards *To support Windows 7 64-bit, please install an AMD Ryzen™
Mini / Stick PC
Mini / Stick PC
- TUF LANGuard 2 nd Generation or Ryzen™ 1 st Generation Processor.
- ASUS Overvoltage Protection Form Factor • mATX Form Factor,
- ASUS SafeSlot 9.6”x 9.6” (24.4 cm x 24.4 cm)
- ASUS Stainless-Steel Back I/O
• ASUS Q-Design Note: The specifications are subject to changes without notice.
- ASUS Q-DIMM
- ASUS Q-Slot
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
