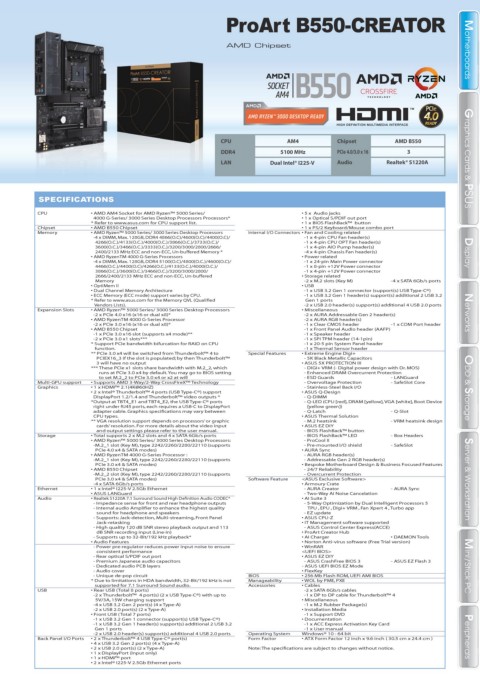

Page 89 - ASUS_WORLD_134_ebook

ProArt B550-CREATOR

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD B550
DDR4 5100 MHz PCIe 4.0/3.0 x 16 3

LAN Dual Intel® I225-V Audio Realtek® S1220A Graphics Cards & PSUS

A520M-PLUS WIFI SPECIFICATIONS
A520M-PLUS II
A520M-PLUS CPU • AMD AM4 Socket for AMD Ryzen™ 5000 Series/ • 5 x Audio jacks
Graphics Cards & PSUS

• 1 x BIOS FlashBack™ button
* Refer to www.asus.com for CPU support list.
4000 G-Series/ 3000 Series Desktop Processors Processors* • 1 x Optical S/PDIF out port
Chipset • AMD B550 Chipset • 1 x PS/2 Keyboard/Mouse combo port
Memory • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors Internal I/O Connectors • Fan and Cooling related
-4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/ -1 x 4-pin CPU Fan header(s)
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ -1 x 4-pin CPU OPT Fan header(s)
3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/ -1 x 4-pin AIO Pump header(s)
2400/2133 MHz ECC and non-ECC, Un-buffered Memory * -4 x 4-pin Chassis Fan header(s) Display
• AMD RyzenTM 4000 G-Series Processors • Power related
-4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/ -1 x 24-pin Main Power connector
4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/ -1 x 8-pin +12V Power connector
Display
3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/ -1 x 4-pin +12V Power connector
2666/2400/2133 MHz ECC and non-ECC, Un-buffered • Storage related
Memory -2 x M.2 slots (Key M) -4 x SATA 6Gb/s ports
• OptiMem II • USB
• Dual Channel Memory Architecture -1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
• ECC Memory (ECC mode) support varies by CPU. -1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2
* Refer to www.asus.com for the Memory QVL (Qualified Gen 1 ports
Vendors Lists). -2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Expansion Slots • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors • Miscellaneous Networks Networks
-2 x PCIe 4.0 x16 (x16 or dual x8)* -2 x AURA Addressable Gen 2 header(s)
• AMD RyzenTM 4000 G-Series Processor -2 x AURA RGB header(s)
-2 x PCIe 3.0 x16 (x16 or dual x8)* -1 x Clear CMOS header -1 x COM Port header
• AMD B550 Chipset -1 x Front Panel Audio header (AAFP)
-1 x PCIe 3.0 x16 slot (supports x4 mode)** -1 x Speaker header
-2 x PCIe 3.0 x1 slots*** -1 x SPI TPM header (14-1pin)
* Support PCIe bandwidth bifurcation for RAID on CPU -1 x 20-5 pin System Panel header
function. -1 x Thermal Sensor header
** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to Special Features • Extreme Engine Digi+
PCIEX16_3 if the slot is populated; by then Thunderbolt™ - 5K Black Metallic Capacitors
3 will have no output • ASUS 5X PROTECTION III
*** These PCIe x1 slots share bandwidth with M.2_2, which - DIGI+ VRM (- Digital power design with Dr. MOS)
runs at PCIe 3.0 x4 by default. You may go to BIOS setting - Enhanced DRAM Overcurrent Protection
to set M.2_2 to PCIe 3.0 x4 or x2 at will - ESD Guards - LANGuard
Multi-GPU support • Supports AMD 3-Way/2-Way CrossFireX™ Technology - Overvoltage Protection - SafeSlot Core
Graphics • 1 x HDMI™ 2.1(4K@60HZ) - Stainless-Steel Back I/O ODD & Storage ODD & Storage
• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support • ASUS Q-Design
DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * - Q-DIMM
*Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device
right under RJ45 ports, each requires a USB-C to DisplayPort [yellow green])
adapter cable. Graphics specifications may vary between - Q-Latch - Q-Slot
CPU types. • ASUS Thermal Solution
** VGA resolution support depends on processors’ or graphic - M.2 heatsink - VRM heatsink design
cards’ resolution. For more details about the video input • ASUS EZ DIY
and output settings please refer to the user manual. - BIOS FlashBack™ button
Storage • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports - BIOS FlashBack™ LED - Box Headers
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: - ProCool II
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports - Pre-mounted I/O shield - SafeSlot
PCIe 4.0 x4 & SATA modes) • AURA Sync
• AMD RyzenTM 4000 G-Series Processor : - AURA RGB header(s)
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports - Addressable Gen 2 RGB header(s)
PCIe 3.0 x4 & SATA modes) • Bespoke Motherboard Design & Business Focused Features
• AMD B550 Chipset - 24/7 Reliability
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports - Overcurrent Protection
PCIe 3.0 x4 & SATA modes) Software Feature <ASUS Exclusive Software> Server & Workstation Server & Workstation
-4 x SATA 6Gb/s ports • Armoury Crate
Ethernet • 1 x Intel® I225-V 2.5Gb Ethernet - AURA Creator - AURA Sync
• ASUS LANGuard - Two-Way AI Noise Cancelation
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* • AI Suite 3
- Impedance sense for front and rear headphone outputs - 5-Way Optimization by Dual Intelligent Processors 5
- Internal audio Amplifier to enhance the highest quality TPU , EPU , Digi+ VRM , Fan Xpert 4 , Turbo app
sound for headphone and speakers - EZ update
- Supports: Jack-detection, Multi-streaming, Front Panel • ASUS CPU-Z
Jack-retasking • IT Management software supported
- High quality 120 dB SNR stereo playback output and 113 - ASUS Control Center Express(ACCE)
dB SNR recording input (Line-in) • ProArt Creator Hub
- Supports up to 32-Bit/192 kHz playback* • AI Charger • DAEMON Tools
• Audio Features • Norton Anti-virus software (Free Trial version)
- Power pre-regulator reduces power input noise to ensure • WinRAR
consistent performance <UEFI BIOS>
- Rear optical S/PDIF out port • ASUS EZ DIY
- Premium Japanese audio capacitors - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
- Dedicated audio PCB layers - ASUS UEFI BIOS EZ Mode Mini / Stick PC Mini / Stick PC
- Audio cover • FlexKey
- Unique de-pop circuit BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not Manageability • WOL by PME, PXE
supported for 7.1 Surround Sound audio. Accessories • Cables
USB • Rear USB (Total 8 ports) -2 x SATA 6Gb/s cables
-2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to -1 x DP to DP cable for Thunderbolt™ 4
5V/3A, 15W charging support • Miscellaneous
-4 x USB 3.2 Gen 2 port(s) (4 x Type-A) -1 x M.2 Rubber Package(s)
-2 x USB 2.0 port(s) (2 x Type-A) • Installation Media
• Front USB (Total 7 ports) -1 x Support DVD
-1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) • Documentation
-1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 -1 x ACC Express Activation Key Card
Gen 1 ports -1 x User manual
-2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Operating System Windows® 10 - 64 bit Peripherals Peripherals
Back Panel I/O Ports • 2 x Thunderbolt™ 4 USB Type-C® port(s) Form Factor • ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
• 2 x USB 2.0 port(s) (2 x Type-A) Note: The specifications are subject to changes without notice.
