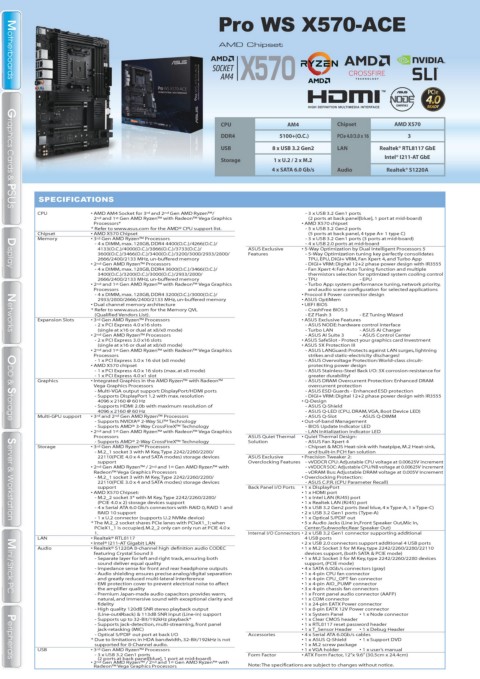

Page 92 - ASUS_WORLD_134_ebook

Pro WS X570-ACE

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD X570
DDR4 5100+(O.C.) PCIe 4.0/3.0 x 16 3
USB 8 x USB 3.2 Gen2 LAN Realtek® RTL8117 GbE
Intel® I211-AT GbE
Storage 1 x U.2 / 2 x M.2

4 x SATA 6.0 Gb/s Audio Realtek® S1220A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD AM4 Socket for 3 rd and 2 nd Gen AMD Ryzen™/ - 3 x USB 3.2 Gen1 ports
2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics (2 ports at back panel[blue], 1 port at mid-board)
Processors* • AMD X570 chipset
* Refer to www.asus.com for the AMD® CPU support list. - 5 x USB 3.2 Gen2 ports
Chipset • AMD X570 Chipset (5 ports at back panel, 4 type A+ 1 type C)
Memory • 3 rd Gen AMD Ryzen™ Processors - 3 x USB 3.2 Gen1 ports (3 ports at mid-board)
- 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/ - 4 x USB 2.0 ports at mid-board
4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ ASUS Exclusive • 5-Way Optimization by Dual Intelligent Processors 5
3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/ Features - 5-Way Optimization tuning key perfectly consolidates
2666/2400/2133 MHz, un-buffered memory TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App
• 2 nd Gen AMD Ryzen™ Processors - DIGI+ VRM: Digital 12+2 phase power design with IR3555
- 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/ - Fan Xpert 4: Fan Auto Tuning function and multiple
Display
Display
3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/ thermistors selection for optimized system cooling control
2666/2400/2133 MHz, un-buffered memory - TPU - EPU
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics - Turbo App: system performance tuning, network priority,
Processors and audio scene configuration for selected applications
- 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/ • Procool II Power connector design
2933/2800/2666/2400/2133 MHz, un-buffered memory • ASUS OptiMem
• Dual channel memory architecture • UEFI BIOS
* Refer to www.asus.com for the Memory QVL - CrashFree BIOS 3
(Qualified Vendors List). - EZ Flash 3 - EZ Tuning Wizard
Expansion Slots • 3 rd Gen AMD Ryzen™ Processors • ASUS Exclusive Features
- 2 x PCI Express 4.0 x16 slots - ASUS NODE: hardware control interface
(single at x16 or dual at x8/x8 mode) - Turbo LAN - ASUS Ai Charger
Networks
Networks
• 2 nd Gen AMD Ryzen™ Processors - ASUS AI Suite 3 - ASUS Control Center
- 2 x PCI Express 3.0 x16 slots • ASUS SafeSlot - Protect your graphics card Investment
(single at x16 or dual at x8/x8 mode) • ASUS 5X Protection III
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics - ASUS LANGuard: Protects against LAN surges, lightning
Processors strikes and static-electricity discharges!
- 1 x PCI Express 3.0 x 16 slot (x8 mode) - ASUS Overvoltage Protection: World-class circuit-
• AMD X570 chipset protecting power design
- 1 x PCI Express 4.0 x 16 slots (max. at x8 mode) - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
- 1 x PCI Express 4.0 x1 slot greater durability!

Graphics • Integrated Graphics in the AMD Ryzen™ with Radeon™ - ASUS DRAM Overcurrent Protection: Enhanced DRAM

Vega Graphics Processors overcurrent protection
- Multi-VGA output support: DisplayPort/HDMI ports - ASUS ESD Guards - Enhanced ESD protection
- Supports DisplayPort 1.2 with max. resolution - DIGI+ VRM: Digital 12+2 phase power design with IR3555
4096 x 2160 @ 60 Hz • Q-Design
- Supports HDMI 2.0b with maximum resolution of - ASUS Q-Shield
4096 x 2160 @ 60 Hz - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
Multi-GPU support • 3 rd and 2 nd Gen AMD Ryzen™ Processors - ASUS Q-Slot - ASUS Q-DIMM
- Supports NVIDIA® 2-Way SLI™ Technology • Out-of-band Management
ODD & Storage
ODD & Storage
- Supports AMD® 3-Way CrossFireX™ Technology - BIOS Update Indicator LED
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics - LAN Initialization Indicator LED
Processors ASUS Quiet Thermal • Quiet Thermal Design:
- Supports AMD® 2-Way CrossFireX™ Technology Solution - ASUS Fan Xpert 4
Storage • 3 rd Gen AMD Ryzen™ Processors - Chipset & MOS Heat-sink with heatpipe, M.2 Heat-sink,
- M.2_1 socket 3 with M Key, Type 2242/2260/2280/ and built-in PCH fan solution
22110(PCIE 4.0 x 4 and SATA modes) storage devices ASUS Exclusive • Precision Tweaker 2:
support Overclocking Features - vVDDCR CPU: Adjustable CPU voltage at 0.00625V increment
• 2 nd Gen AMD Ryzen™ / 2 nd and 1 st Gen AMD Ryzen™ with - vVDDCR SOC: Adjustable CPU/NB voltage at 0.00625V increment
Radeon™ Vega Graphics Processors - vDRAM Bus: Adjustable DRAM voltage at 0.005V increment
- M.2_1 socket 3 with M Key, Type 2242/2260/2280/ • Overclocking Protection:
22110(PCIE 3.0 x 4 and SATA modes) storage devices - ASUS C.P.R. (CPU Parameter Recall)
support Back Panel I/O Ports • 1 x DisplayPort
• AMD X570 Chipset: • 1 x HDMI port
- M.2_2 socket 3* with M Key, Type 2242/2260/2280/ • 1 x Intel LAN (RJ45) port
(PCIE 4.0 x 2) storage devices support • 1 x Realtek LAN (RJ45) port
- 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and • 5 x USB 3.2 Gen2 ports (teal blue, 4 x Type-A, 1 x Type-C)
RAID 10 support • 2 x USB 3.2 Gen1 ports (Type-A)
- 1 x U.2 connector (supports U.2 NVMe device) • 1 x Optical S/PDIF out
Server & Workstation
Server & Workstation

* The M.2_2 socket shares PCIe lanes with PCIeX1_1; when • 5 x Audio Jacks (Line in,Front Speaker Out,Mic in,

PCIeX1_1 is occupied, M.2_2 only can only run at PCIE 4.0 x Center/Subwoofer,Rear Speaker Out)
1. Internal I/O Connectors • 2 x USB 3.2 Gen1 connector supporting additional
LAN • Realtek® RTL8117 4 USB ports
• Intel® I211-AT Gigabit LAN • 2 x USB 2.0 connectors support additional 4 USB ports
Audio • Realtek® S1220A 8-channel high definition audio CODEC • 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110
featuring Crystal Sound 3 devices support, (both SATA & PCIE mode)
- Separate layer for left and right track, ensuring both • 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
sound deliver equal quality support, (PCIE mode)
- Impedance sense for front and rear headphone outputs • 4 x SATA 6.0Gb/s connectors (gray)
- Audio shielding ensures precise analog/digital separation • 1 x 4-pin CPU fan connector
and greatly reduced multi-lateral interference • 1 x 4-pin CPU_OPT fan connector
- EMI protection cover to prevent electrical noise to affect • 1 x 4-pin AIO_PUMP connector
the amplifier quality • 3 x 4-pin chassis fan connectors
- Premium Japan-made audio capacitors provides warm, • 1 x Front panel audio connector (AAFP)
Mini / Stick PC
Mini / Stick PC
natural, and immersive sound with exceptional clarity and • 1 x COM connector
fidelity • 1 x 24-pin EATX Power connector
- High quality 120dB SNR stereo playback output • 1 x 8-pin EATX 12V Power connector
(Line-out@back) & 113dB SNR input (Line-in) support • 1 x System Panel • 1 x Node connector
- Supports up to 32-Bit/192kHz playback* • 1 x Clear CMOS header
- Supports jack-detection, multi-streaming, front panel • 1 x RTL8117 reset password header
jack-retasking (MIC) • 1 x T_Sensor Header • 1 x Debug Header
- Optical S/PDIF out port at back I/O Accessories • 4 x Serial ATA 6.0Gb/s cables
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not • 1 x ASUS Q-Shield • 1 x Support DVD
supported for 8-Channel audio. • 1 x M.2 screw package
USB • 3 rd Gen AMD Ryzen™ Processors • 1 x VGA holder • 1 x user’s manual
- 3 x USB 3.2 Gen1 ports Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
(2 ports at back panel[blue], 1 port at mid-board)
Peripherals
Peripherals
• 2 nd Gen AMD Ryzen™ / 2 nd and 1 st Gen AMD Ryzen™ with
Radeon™ Vega Graphics Processors Note: The specifications are subject to changes without notice.
