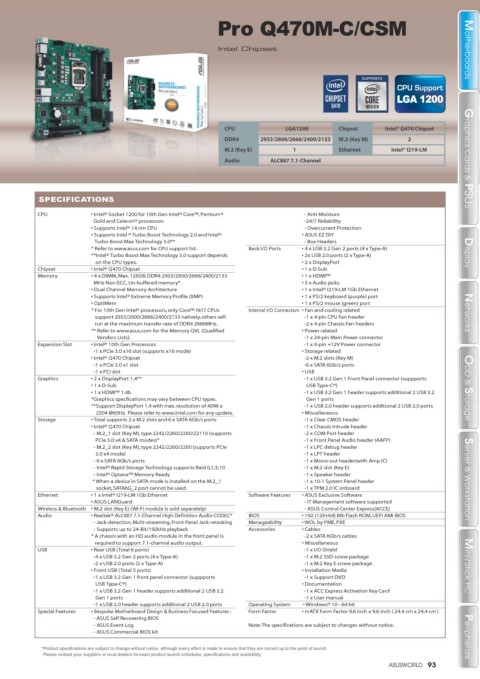

Pro Q570M-C/CSM Pro Q470M-C/CSM

Intel Chipset Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel® Q470 Chipset
DDR4 2933/2800/2666/2400/2133 M.2 (Key M) 2
M.2 (Key E) 1 Ethernet Intel® I219-LM
Audio ALC887 7.1-Channel Graphics Cards & PSUS Graphics Cards & PSUS

SPECIFICATIONS

CPU • Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® - Anti-Moisture
Gold and Celeron® processors -24/7 Reliability
• Supports Intel® 14 nm CPU - Overcurrent Protection
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® • ASUS EZ DIY
Turbo Boost Max Technology 3.0** - Box Headers
* Refer to www.asus.com for CPU support list. Back I/O Ports • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
**Intel® Turbo Boost Max Technology 3.0 support depends • 2x USB 2.0 ports (2 x Type-A) Display
on the CPU types. • 2 x DisplayPort
Chipset • Intel® Q470 Chipset • 1 x D-Sub
Display
Memory • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 • 1 x HDMI™
MHz Non-ECC, Un-buffered memory* • 3 x Audio jacks
• Dual Channel Memory Architecture • 1 x Intel® I219-LM 1Gb Ethernet
• Supports Intel® Extreme Memory Profile (XMP) • 1 x PS/2 keyboard (purple) port
• OptiMem • 1 x PS/2 mouse (green) port
* For 10th Gen Intel® processors, only Core™ i9/i7 CPUs Internal I/O Connectors • Fan and cooling related Networks Networks
support 2933/2800/2666/2400/2133 natively, others will -1 x 4-pin CPU Fan header
run at the maximum transfer rate of DDR4 2666MHz. -2 x 4-pin Chassis Fan headers
** Refer to www.asus.com for the Memory QVL (Qualified • Power related
Vendors Lists). -1 x 24-pin Main Power connector
Expansion Slot • Intel® 10th Gen Processors -1 x 8-pin +12V Power connector
-1 x PCIe 3.0 x16 slot (supports x16 mode) • Storage related
• Intel® Q470 Chipset -2 x M.2 slots (Key M)
-1 x PCIe 3.0 x1 slot -6 x SATA 6Gb/s ports
-1 x PCI slot • USB ODD &
Graphics • 2 x DisplayPort 1.4** -1 x USB 3.2 Gen 1 Front Panel connector (suppports
• 1 x D-Sub USB Type-C®) ODD & Storage
• 1 x HDMI™ 1.4b -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
*Graphics specfications may vary between CPU types. Gen 1 ports
**Support DisplayPort 1.4 with max. resolution of 4096 x -1 x USB 2.0 header supports additional 2 USB 2.0 ports
2304 @60Hz. Please refer to www.intel.com for any update. • Miscellaneous
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -1 x Clear CMOS header
Storage
• Intel® Q470 Chipset -1 x Chassis Intrude header
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -2 x COM Port header
PCIe 3.0 x4 & SATA modes)* -1 x Front Panel Audio header (AAFP)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe -1 x LPC debug header
3.0 x4 mode) -1 x LPT header
- 6 x SATA 6Gb/s ports -1 x Mono-out header(with Amp IC)
- Intel® Rapid Storage Technology supports Raid 0,1,5,10 -1 x M.2 slot (Key E)
- Intel® Optane™ Memory Ready -1 x Speaker header
* When a device in SATA mode is installed on the M.2_1 -1 x 10-1 System Panel header Server & Workstation
socket, SATA6G_2 port cannot be used. -1 x TPM 2.0 IC onboard
Ethernet • 1 x Intel® I219-LM 1Gb Ethernet Software Features • ASUS Exclusive Software
• ASUS LANGuard - IT Management software supported
Wireless & Bluetooth • M.2 slot (Key E) (Wi-Fi module is sold separately) - ASUS Control Center Express(ACCE)
Audio • Realtek® ALC887 7.1-Channel High Definition Audio CODEC* BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Jack-detection, Multi-streaming, Front Panel Jack-retasking Manageability • WOL by PME, PXE
Server & Workstation
- Supports up to 24-Bit/192kHz playback Accessories • Cables
* A chassis with an HD audio module in the front panel is
required to support 7.1-channel audio output. • Miscellaneous
USB • Rear USB (Total 6 ports) -1 x I/O Shield
-4 x USB 3.2 Gen 2 ports (4 x Type-A) -1 x M.2 SSD screw package
-2 x USB 2.0 ports (2 x Type-A) -1 x M.2 Key E screw package Mini / Stick PC
• Front USB (Total 5 ports) • Installation Media
-1 x USB 3.2 Gen 1 front panel connector (suppports -1 x Support DVD
USB Type-C®) • Documentation
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 -1 x ACC Express Activation Key Card
-2 x SATA 6Gb/s cables Mini / Stick PC
Gen 1 ports -1 x User manual
-1 x USB 2.0 header supports additional 2 USB 2.0 ports Operating System • Windows® 10 - 64 bit
Special Features • Bespoke Motherboard Design & Business Focused Features : Form Factor • mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- ASUS Self Recovering BIOS
- ASUS Event Log Note: The specifications are subject to changes without notice.
- ASUS Commercial BIOS kit Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
