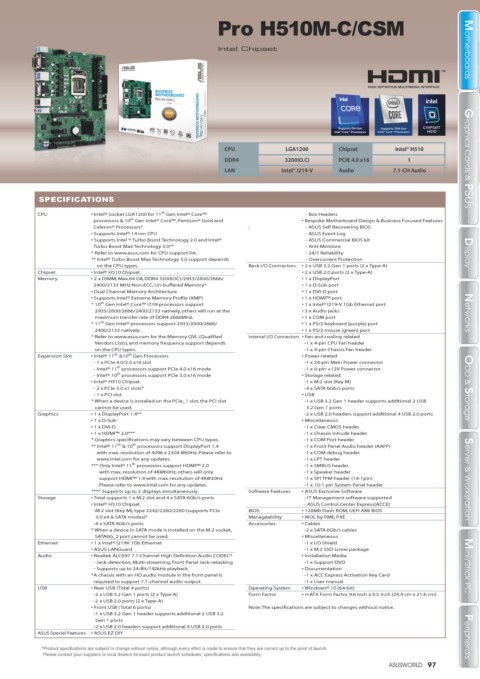

Pro H510M-C/CSM

Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel® H510
DDR4 3200(O.C) PCIE 4.0 x16 1 Graphics Cards & PSUS
LAN Intel® I219-V Audio 7.1-CH Audio

SPECIFICATIONS
Graphics Cards & PSUS
th
CPU • Intel® Socket LGA1200 for 11 Gen Intel® Core™ - Box Headers
th
processors & 10 Gen Intel® Core™, Pentium® Gold and • Bespoke Motherboard Design & Business Focused Features
Celeron® Processors* : - ASUS Self Recovering BIOS
• Supports Intel® 14 nm CPU - ASUS Event Log
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® - ASUS Commercial BIOS kit
Turbo Boost Max Technology 3.0** - Anti-Moisture
* Refer to www.asus.com for CPU support list. - 24/7 Reliability Display Display
** Intel® Turbo Boost Max Technology 3.0 support depends - Overcurrent Protection
on the CPU types. Back I/O Connectors • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
Chipset • Intel® H510 Chipset • 2 x USB 2.0 ports (2 x Type-A)
Memory • 2 x DIMM, Max.64 GB, DDR4 3200(OC)/2933/2800/2666/ • 1 x DisplayPort
2400/2133 MHz Non-ECC, Un-buffered Memory* • 1 x D-Sub port
• Dual Channel Memory Architecture • 1 x DVI-D port
• Supports Intel® Extreme Memory Profile (XMP) • 1 x HDMI™ port
th
* 10 Gen Intel® Core™ i7/i9 processors support • 1 x Intel® I219-V 1Gb Ethernet port
2933/2800/2666/2400/2133 natively, others will run at the • 3 x Audio jacks Networks
maximum transfer rate of DDR4 2666MHz. • 1 x COM port
th
* 11 Gen Intel® processors support 2933/2800/2666/ • 1 x PS/2 keyboard (purple) port
2400/2133 natively. • 1 x PS/2 mouse (green) port
Networks
* Refer to www.asus.com for the Memory QVL (Qualified Internal I/O Connectors • Fan and cooling related
Vendors Lists), and memory frequency support depends -1 x 4-pin CPU Fan header
on the CPU types. -1 x 4-pin Chassis Fan header
th
th
Expansion Slot • Intel® 11 &10 Gen Processors • Power related
- 1 x PCIe 4.0/3.0 x16 slot -1 x 24-pin Main Power connector
th
- Intel® 11 processors support PCIe 4.0 x16 mode -1 x 8-pin +12V Power connector
th
- Intel® 10 processors support PCIe 3.0 x16 mode • Storage related
• Intel® H510 Chipset -1 x M.2 slot (Key M)
- 2 x PCIe 3.0 x1 slots* -4 x SATA 6Gb/s ports ODD & Storage ODD & Storage
- 1 x PCI slot • USB
* When a device is installed on the PCIe_1 slot, the PCI slot -1 x USB 3.2 Gen 1 header supports additional 2 USB
cannot be used. 3.2 Gen 1 ports
Graphics • 1 x DisplayPort 1.4** -2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x D-Sub • Miscellaneous
• 1 x DVI-D -1 x Clear CMOS header
• 1 x HDMI™ 2.0*** -1 x Chassis Intrude header
* Graphics specifications may vary between CPU types. -1 x COM Port header
th
th
** Intel® 11 & 10 processors support DisplayPort 1.4 -1 x Front Panel Audio header (AAFP)
with max. resolution of 4096 x 2304 @60Hz. Please refer to -1 x COM debug header
www.intel.com for any updates. -1 x LPT header
th
*** Only Intel® 11 processors support HDMI™ 2.0 -1 x SMBUS header
with max. resolution of 4K@60Hz, others will only -1 x Speaker header
support HDMI™ 1.4 with max. resolution of 4K@30Hz -1 x SPI TPM header (14-1pin) Server & Workstation
.Please refer to www.intel.com for any updates. -1 x 10-1 pin System Panel header
**** Supports up to 2 displays simultaneously. Software Features • ASUS Exclusive Software
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports - IT Management software supported
• Intel® H510 Chipset - ASUS Control Center Express(ACCE)
-M.2 slot (Key M), type 2242/2260/2280 (supports PCIe BIOS • 128Mb Flash ROM, UEFI AMI BIOS
3.0 x4 & SATA modes)* Manageability • WOL by PME, PXE
Server & Workstation
-4 x SATA 6Gb/s ports Accessories • Cables
* When a device in SATA mode is installed on the M.2 socket, -2 x SATA 6Gb/s cables
SATA6G_2 port cannot be used. • Miscellaneous
Ethernet • 1 x Intel® I219V 1Gb Ethernet -1 x I/O Shield
• ASUS LANGuard -1 x M.2 SSD screw package
Audio • Realtek ALC897 7.1-Channel High Definition Audio CODEC* • Installation Media
- Jack-detection, Multi-streaming, Front Panel Jack-retasking -1 x Support DVD
- Supports up to 24-Bit/192kHz playback • Documentation Mini / Stick PC
*A chassis with an HD audio module in the front panel is -1 x ACC Express Activation Key Card
required to support 7.1-channel audio output. -1 x User manual
USB • Rear USB (Total 4 ports) Operating System • Windows® 10 (64-bit)
-2 x USB 3.2 Gen 1 ports (2 x Type-A) Form Factor • mATX Form Factor 9.6 inch x 8.5 inch (24.4 cm x 21.6 cm)
Mini / Stick PC
-2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports) Note: The specifications are subject to changes without notice.
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
Gen 1 ports
-2 x USB 2.0 headers support additional 4 USB 2.0 ports
ASUS Special Features • ASUS EZ DIY Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
