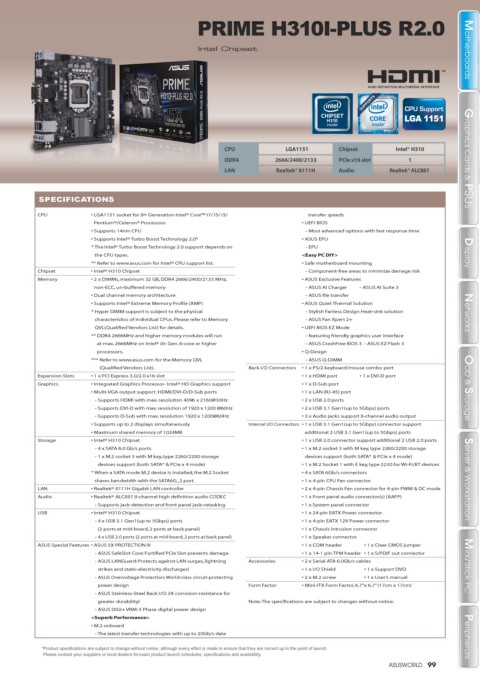

PRIME H310I-PLUS R2.0

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® H310
DDR4 2666/2400/2133 PCIe x16 slot 1 Graphics Cards & PSUS
LAN Realtek® 8111H Audio Realtek® ALC887

SPECIFICATIONS
Graphics Cards & PSUS

CPU • LGA1151 socket for 8th Generation Intel® Core™ i7/ i5/ i3/ transfer speeds
Pentium®/Celeron® Processors • UEFI BIOS
• Supports 14nm CPU - Most advanced options with fast response time

• Supports Intel® Turbo Boost Technology 2.0* • ASUS EPU

* The Intel® Turbo Boost Technology 2.0 support depends on - EPU
the CPU types. <Easy PC DIY> Display Display

** Refer to www.asus.com for Intel® CPU support list. • Safe motherboard mounting

Chipset • Intel® H310 Chipset - Component-free areas to minimize damage risk

Memory • 2 x DIMMs, maximum 32 GB, DDR4 2666/2400/2133 MHz, • ASUS Exclusive Features

non-ECC, un-buffered memory - ASUS AI Charger - ASUS AI Suite 3

• Dual channel memory architecture - ASUS file transfer
• Supports Intel® Extreme Memory Profile (XMP) • ASUS Quiet Thermal Solution

* Hyper DIMM support is subject to the physical - Stylish Fanless Design Heat-sink solution Networks
characteristics of individual CPUs. Please refer to Memory - ASUS Fan Xpert 2+

QVL(Qualified Vendors List) for details. • UEFI BIOS EZ Mode
Networks

** DDR4 2666MHz and higher memory modules will run - featuring friendly graphics user interface

at max. 2666MHz on Intel® 8th Gen. 6-core or higher - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
processors. • Q-Design

*** Refer to www.asus.com for the Memory QVL - ASUS Q-DIMM
(Qualified Vendors List). Back I/O Connectors • 1 x PS/2 keyboard/mouse combo port
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot • 1 x HDMI port • 1 x DVI-D port
Graphics • Integrated Graphics Processor- Intel® HD Graphics support • 1 x D-Sub port
• Multi-VGA output support :HDMI/DVI-D/D-Sub ports • 1 x LAN (RJ-45) port ODD & Storage ODD & Storage

- Supports HDMI with max. resolution 4096 x 2160@30Hz • 2 x USB 2.0 ports

- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz • 2 x USB 3.1 Gen1(up to 5Gbps) ports

- Supports D-Sub with max. resolution 1920 x 1200@60Hz • 3 x Audio jacks support 8-channel audio output
• Supports up to 2 displays simultaneously Internal I/O Connectors • 1 x USB 3.1 Gen1(up to 5Gbps) connector support

• Maximum shared memory of 1024MB additional 2 USB 3.1 Gen1(up to 5Gbps) ports
Storage • Intel® H310 Chipset • 1 x USB 2.0 connector support additional 2 USB 2.0 ports
- 4 x SATA 6.0 Gb/s ports • 1 x M.2 socket 3 with M key, type 2260/2280 storage

- 1 x M.2 socket 3 with M key, type 2260/2280 storage devices support (both SATA* & PCIe x 4 mode)

devices support (both SATA* & PCIe x 4 mode) • 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices

* When a SATA mode M.2 device is installed, the M.2 Socket • 4 x SATA 6Gb/s connectors

shares bandwidth with the SATA6G_2 port. • 1 x 4-pin CPU Fan connector Server & Workstation

LAN • Realtek® 8111H Gigabit LAN controller • 2 x 4-pin Chassis Fan connector for 4-pin PWM & DC mode

Audio • Realtek® ALC887 8-channel high definition audio CODEC • 1 x Front panel audio connector(s) (AAFP)

- Supports jack-detection and front panel jack-retasking • 1 x System panel connector

USB • Intel® H310 Chipset • 1 x 24-pin EATX Power connector

- 4 x USB 3.1 Gen1(up to 5Gbps) ports • 1 x 4-pin EATX 12V Power connector
Server & Workstation

(2 ports at mid-board, 2 ports at back panel) • 1 x Chassis Intrusion connector

- 4 x USB 2.0 ports (2 ports at mid-board, 2 ports at back panel) • 1 x Speaker connector

ASUS Special Features • ASUS 5X PROTECTION III • 1 x COM header • 1 x Clear CMOS jumper

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage • 1 x 14-1 pin TPM header • 1 x S/PDIF out connector

- ASUS LANGuard: Protects against LAN surges, lightning Accessories • 2 x Serial ATA 6.0Gb/s cables

strikes and static-electricity discharges! • 1 x I/O Shield • 1 x Support DVD Mini / Stick PC

- ASUS Overvoltage Protection: World-class circuit-protecting • 2 x M.2 screw • 1 x User’s manual

power design Form Factor • Mini-ITX Form Factor, 6.7”x 6.7” (17cm x 17cm)

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
Mini / Stick PC
greater durability! Note: The specifications are subject to changes without notice.
- ASUS DIGI+ VRM: 5 Phase digital power design

<Superb Performance>
• M.2 onboard

- The latest transfer technologies with up to 20Gb/s data Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
