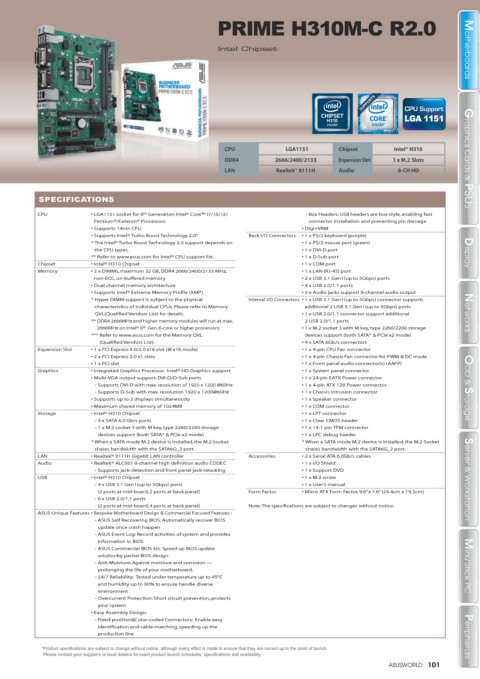

PRIME H310M-C R2.0

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® H310
DDR4 2666/2400/2133 Expansion Slot 1 x M.2 Slots Graphics Cards & PSUS
LAN Realtek® 8111H Audio 8-CH HD

SPECIFICATIONS
Graphics Cards & PSUS

CPU • LGA1151 socket for 8 th Generation Intel® Core™ i7/ i5/ i3/ - Box Headers: USB headers are box style, enabling fast
Pentium®/Celeron® Processors connector installation and preventing pin damage
• Supports 14nm CPU • Digi+VRM
• Supports Intel® Turbo Boost Technology 2.0* Back I/O Connectors

* The Intel® Turbo Boost Technology 2.0 support depends on • 1 x PS/2 mouse port (green)
the CPU types. • 1 x DVI-D port
** Refer to www.asus.com for Intel® CPU support list. • 1 x D-Sub port Display

Chipset • Intel® H310 Chipset • 1 x COM port
• 1 x PS/2 keyboard (purple)Display
Memory • 2 x DIMMs, maximum 32 GB, DDR4 2666/2400/2133 MHz, • 1 x LAN (RJ-45) port

non-ECC, un-buffered memory • 2 x USB 3.1 Gen1(up to 5Gbps) ports
• Dual channel memory architecture • 4 x USB 2.0/1.1 ports
• Supports Intel® Extreme Memory Profile (XMP) • 3 x Audio jacks support 8-channel audio output

* Hyper DIMM support is subject to the physical Internal I/O Connectors • 1 x USB 3.1 Gen1(up to 5Gbps) connector supports

characteristics of individual CPUs. Please refer to Memory additional 2 USB 3.1 Gen1(up to 5Gbps) ports
QVL(Qualified Vendors List) for details. • 1 x USB 2.0/1.1 connector support additional Networks

** DDR4 2666MHz and higher memory modules will run at max. 2 USB 2.0/1.1 ports
2666MHz on Intel® 8 th Gen. 6-core or higher processors. • 1 x M.2 socket 3 with M key, type 2260/2280 storage

Networks
*** Refer to www.asus.com for the Memory QVL devices support (both SATA* & PCIe x2 mode)

(Qualified Vendors List). • 4 x SATA 6Gb/s connectors

Expansion Slot • 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) • 1 x 4-pin CPU Fan connector

• 2 x PCI Express 2.0 x1 slots • 1 x 4-pin Chassis Fan connector for PWM & DC mode

• 1 x PCI slot • 1 x Front panel audio connector(s) (AAFP)

Graphics • Integrated Graphics Processor- Intel® HD Graphics support • 1 x System panel connector

• Multi-VGA output support: DVI-D/D-Sub ports • 1 x 24-pin EATX Power connector

- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz • 1 x 4-pin ATX 12V Power connector ODD & Storage

- Supports D-Sub with max. resolution 1920 x 1200@60Hz • 1 x Chassis Intrusion connector

• Supports up to 2 displays simultaneously • 1 x Speaker connector

• Maximum shared memory of 1024MB • 1 x COM connector

Storage • Intel® H310 Chipset • 1 x LPT connector

- 4 x SATA 6.0 Gb/s ports • 1 x Clear CMOS header

ODD & Storage

- 1 x M.2 socket 3 with M key, type 2260/2280 storage • 1 x 14-1 pin TPM connector

devices support (both SATA* & PCIe x2 mode) • 1 x LPC debug header

* When a SATA mode M.2 device is installed, the M.2 Socket * When a SATA mode M.2 device is installed, the M.2 Socket

shares bandwidth with the SATA6G_2 port. shares bandwidth with the SATA6G_2 port.
LAN • Realtek® 8111H Gigabit LAN controller Accessories • 2 x Serial ATA 6.0Gb/s cables

Audio • Realtek® ALC887 8-channel high definition audio CODEC • 1 x I/O Shield

- Supports jack-detection and front panel jack-retasking • 1 x Support DVD
USB • Intel® H310 Chipset • 1 x M.2 screw Server & Workstation Server & Workstation
- 4 x USB 3.1 Gen1(up to 5Gbps) ports • 1 x User’s manual

(2 ports at mid-board, 2 ports at back panel) Form Factor • Micro ATX Form Factor, 9.6”x 7.6” (24.4cm x 19.3cm)

- 6 x USB 2.0/1.1 ports
(2 ports at mid-board, 4 ports at back panel) Note: The specifications are subject to changes without notice.

ASUS Unique Features • Bespoke Motherboard Design & Commercial Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS

update once crash happen
- ASUS Event Log: Record activities of system and provides

information in BIOS

- ASUS Commercial BIOS kit: Speed up BIOS update
solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion —

prolonging the life of your motherboard. Mini / Stick PC Mini / Stick PC
- 24/7 Reliability: Tested under temperature up to 45°C

and humidity up to 80% to ensure handle diverse
environment
- Overcurrent Protection: Short circuit prevention, protects

your system
• Easy Assembly Design:

- Fixed-position&Color-coded Connectors: Enable easy
identification and cable-matching, speeding up the
production line Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
