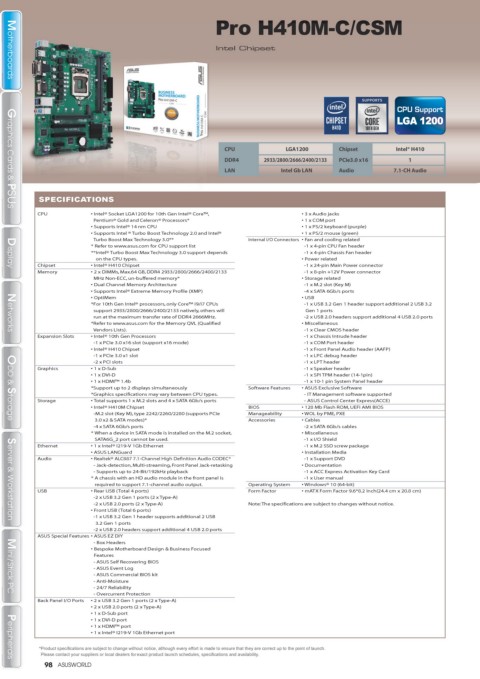

Pro H410M-C/CSM

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® H410
DDR4 2933/2800/2666/2400/2133 PCIe3.0 x16 1
LAN Intel Gb LAN Audio 7.1-CH Audio

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10th Gen Intel® Core™, • 3 x Audio jacks
Pentium® Gold and Celeron® Processors* • 1 x COM port
• Supports Intel® 14 nm CPU • 1 x PS/2 keyboard (purple)
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® • 1 x PS/2 mouse (green)
Turbo Boost Max Technology 3.0** Internal I/O Connectors • Fan and cooling related
* Refer to www.asus.com for CPU support list -1 x 4-pin CPU Fan header
**Intel® Turbo Boost Max Technology 3.0 support depends -1 x 4-pin Chassis Fan header
on the CPU types. • Power related
Chipset • Intel® H410 Chipset -1 x 24-pin Main Power connector
Display
Display
Memory • 2 x DIMMs, Max.64 GB, DDR4 2933/2800/2666/2400/2133 -1 x 8-pin +12V Power connector
MHz Non-ECC, un-buffered memory* • Storage related
• Dual Channel Memory Architecture -1 x M.2 slot (Key M)
• Supports Intel® Extreme Memory Profile (XMP) -4 x SATA 6Gb/s ports
• OptiMem • USB
*For 10th Gen Intel® processors, only Core™ i9/i7 CPUs -1 x USB 3.2 Gen 1 header support additional 2 USB 3.2
support 2933/2800/2666/2400/2133 natively, others will Gen 1 ports
run at the maximum transfer rate of DDR4 2666MHz. -2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Refer to www.asus.com for the Memory QVL (Qualified • Miscellaneous
Vendors Lists). -1 x Clear CMOS header
Networks
Networks
Expansion Slots • Intel® 10th Gen Processors -1 x Chassis Intrude header
-1 x PCIe 3.0 x16 slot (support x16 mode) -1 x COM Port header
• Intel® H410 Chipset -1 x Front Panel Audio header (AAFP)
-1 x PCIe 3.0 x1 slot -1 x LPC debug header
-2 x PCI slots -1 x LPT header
Graphics • 1 x D-Sub -1 x Speaker header
• 1 x DVI-D -1 x SPI TPM header (14-1pin)
• 1 x HDMI™ 1.4b -1 x 10-1 pin System Panel header
*Support up to 2 displays simultaneously Software Features • ASUS Exclusive Software
*Graphics specifications may vary between CPU types. - IT Management software supported
Storage • Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports - ASUS Control Center Express(ACCE)
• Intel® H410M Chipset BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
-M.2 slot (Key M), type 2242/2260/2280 (supports PCIe Manageability • WOL by PME, PXE
3.0 x2 & SATA modes)* Accessories • Cables
ODD & Storage
ODD & Storage
-4 x SATA 6Gb/s ports -2 x SATA 6Gb/s cables
* When a device in SATA mode is installed on the M.2 socket, • Miscellaneous
SATA6G_2 port cannot be used. -1 x I/O Shield
Ethernet • 1 x Intel® I219-V 1Gb Ethernet -1 x M.2 SSD screw package
• ASUS LANGuard • Installation Media
Audio • Realtek® ALC887 7.1-Channel High Definition Audio CODEC* -1 x Support DVD
- Jack-detection, Multi-streaming, Front Panel Jack-retasking • Documentation
- Supports up to 24-Bit/192kHz playback -1 x ACC Express Activation Key Card
* A chassis with an HD audio module in the front panel is -1 x User manual
required to support 7.1-channel audio output. Operating System • Windows® 10 (64-bit)
USB • Rear USB (Total 4 ports) Form Factor • mATX Form Factor 9.6*8.2 inch(24.4 cm x 20.8 cm)
-2 x USB 3.2 Gen 1 ports (2 x Type-A)
-2 x USB 2.0 ports (2 x Type-A) Note: The specifications are subject to changes without notice.
• Front USB (Total 6 ports)
-1 x USB 3.2 Gen 1 header supports additional 2 USB
Server & Workstation
Server & Workstation
3.2 Gen 1 ports
-2 x USB 2.0 headers support additional 4 USB 2.0 ports
ASUS Special Features • ASUS EZ DIY
- Box Headers
• Bespoke Motherboard Design & Business Focused
Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
Mini / Stick PC
Mini / Stick PC
Back Panel I/O Ports • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI™ port
• 1 x Intel® I219-V 1Gb Ethernet port
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
