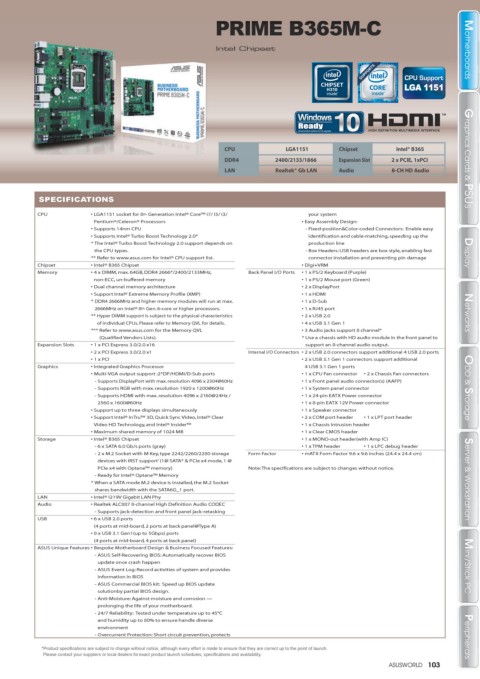

Page 105 - ASUS_WORLD_134_ebook

PRIME B365M-C

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® B365
DDR4 2400/2133/1866 Expansion Slot 2 x PCIE, 1xPCI Graphics Cards & PSUS
LAN Realtek® Gb LAN Audio 8-CH HD Audio

SPECIFICATIONS
Graphics Cards & PSUS

CPU • LGA1151 socket for 8th Generation Intel® Core™ i7/ i5/ i3/ your system

Pentium®/Celeron® Processors • Easy Assembly Design:
• Supports 14nm CPU - Fixed-position&Color-coded Connectors: Enable easy

• Supports Intel® Turbo Boost Technology 2.0* identification and cable-matching, speeding up the

* The Intel® Turbo Boost Technology 2.0 support depends on production line

the CPU types. - Box Headers: USB headers are box style, enabling fast Display
** Refer to www.asus.com for Intel® CPU support list. connector installation and preventing pin damage
Chipset • Intel® B365 Chipset • Digi+VRM
Display

Memory • 4 x DIMM, max. 64GB, DDR4 2666*/2400/2133MHz, Back Panel I/O Ports • 1 x PS/2 Keyboard (Purple)
non-ECC, un-buffered memory • 1 x PS/2 Mouse port (Green)
• Dual channel memory architecture • 2 x DisplayPort
• Support Intel® Extreme Memory Profile (XMP) • 1 x HDMI
* DDR4 2666MHz and higher memory modules will run at max. • 1 x D-Sub N
2666MHz on Intel® 8th Gen. 6-core or higher processors. • 1 x RJ45 port
** Hyper DIMM support is subject to the physical characteristics • 2 x USB 2.0 Networks
of individual CPUs. Please refer to Memory QVL for details. • 4 x USB 3.1 Gen 1
*** Refer to www.asus.com for the Memory QVL • 3 Audio jacks support 8 channel*
etworks
(Qualified Vendors Lists). * Use a chassis with HD audio module in the front panel to

Expansion Slots • 1 x PCI Express 3.0/2.0 x16 support an 8-channel audio output.

• 2 x PCI Express 3.0/2.0 x1 Internal I/O Connectors • 2 x USB 2.0 connectors support additional 4 USB 2.0 ports

• 1 x PCI • 2 x USB 3.1 Gen 1 connectors support additional
Graphics • Integrated Graphics Processor 4 USB 3.1 Gen 1 ports
• Multi-VGA output support :2*DP/HDMI/D-Sub ports • 1 x CPU Fan connector • 2 x Chassis Fan connectors

- Supports DisplayPort with max. resolution 4096 x 2304@60Hz • 1 x Front panel audio connector(s) (AAFP)

- Supports RGB with max. resolution 1920 x 1200@60Hz • 1 x System panel connector ODD & Storage

- Supports HDMI with max. resolution 4096 x 2160@24Hz / • 1 x 24-pin EATX Power connector
2560 x 1600@60Hz • 1 x 8-pin EATX 12V Power connector

• Support up to three displays simultaneously • 1 x Speaker connector

• Support Intel® InTru™ 3D, Quick Sync Video, Intel® Clear • 2 x COM port header • 1 x LPT port header
ODD & Storage
Video HD Technology, and Intel® Insider™ • 1 x Chassis Intrusion header

• Maximum shared memory of 1024 MB • 1 x Clear CMOS header

Storage • Intel® B365 Chipset • 1 x MONO-out header(with Amp IC)

- 6 x SATA 6.0 Gb/s ports (gray) • 1 x TPM header • 1 x LPC debug header

- 2 x M.2 Socket with M Key, type 2242/2260/2280 storage Form Factor • mATX Form Factor 9.6 x 9.6 inches (24.4 x 24.4 cm)

devices with IRST support’ (1@ SATA* & PCIe x4 mode, 1 @
PCIe x4 with Optane™ memory) Note: The specifications are subject to changes without notice.
- Ready for Intel® Optane™ Memory
* When a SATA mode M.2 device is installed, the M.2 Socket Server & Workstation Server & Workstation

shares bandwidth with the SATA6G_1 port.
LAN • Intel® I219V Gigabit LAN Phy
Audio • Realtek ALC887 8-channel High Definition Audio CODEC

- Supports jack-detection and front panel jack-retasking

USB • 6 x USB 2.0 ports
(4 ports at mid-board, 2 ports at back panel@Type A)
• 8 x USB 3.1 Gen1(up to 5Gbps) ports

(4 ports at mid-board, 4 ports at back panel)

ASUS Unique Features • Bespoke Motherboard Design & Business Focused Features:

- ASUS Self-Recovering BIOS: Automatically recover BIOS
update once crash happen

- ASUS Event Log: Record activities of system and provides Mini / Stick PC Mini / Stick PC
information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update

solutionby partial BIOS design.

- Anti-Moisture: Against moisture and corrosion —
prolonging the life of your motherboard.
- 24/7 Reliability: Tested under temperature up to 45°C

and humidity up to 80% to ensure handle diverse
environment

- Overcurrent Protection: Short circuit prevention, protects Peripherals Peripherals
