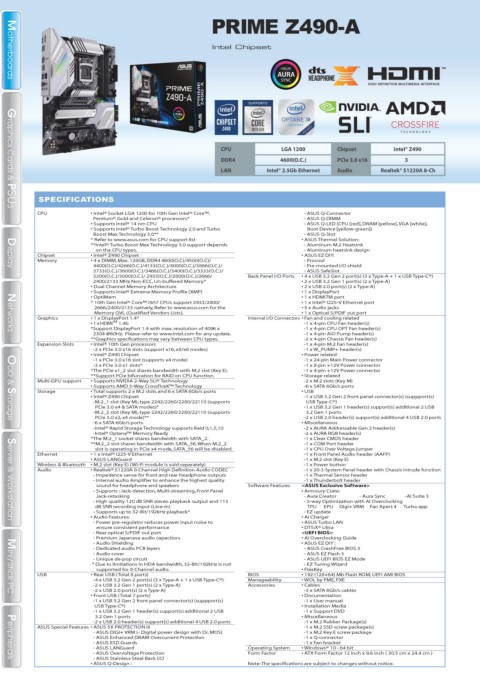

Page 110 - ASUS_WORLD_134_ebook

PRIME Z490-A

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® Z490
DDR4 4600(O.C.) PCIe 3.0 x16 3

LAN Intel® 2.5Gb Ethernet Audio Realtek® S1220A 8-Ch

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA 1200 for 10th Gen Intel® Core™, - ASUS Q-Connector
Pentium® Gold and Celeron® processors* - ASUS Q-DIMM
• Supports Intel® 14 nm CPU - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white],
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boot Device [yellow-green])
Boost Max Technology 3.0** - ASUS Q-Slot
* Refer to www.asus.com for CPU support list • ASUS Thermal Solution:
**Intel® Turbo Boost Max Technology 3.0 support depends - Aluminum M.2 Heatsink
on the CPU types. - Aluminum heatsink design
Chipset • Intel® Z490 Chipset • ASUS EZ DIY:
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/ - Procool
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ - Pre-mounted I/O shield
Display
Display
3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ - ASUS SafeSlot
3200(O.C.)/3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/ Back Panel I/O Ports • 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C®)
2400/2133 MHz Non-ECC, Un-buffered Memory* • 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• Dual Channel Memory Architecture • 2 x USB 2.0 port(s) (2 x Type-A)
• Supports Intel® Extreme Memory Profile (XMP) • 1 x DisplayPort
• OptiMem • 1 x HDMITM port
* 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/ • 1 x Intel® I225-V Ethernet port
2666/2400/2133 natively, Refer to www.asus.com for the • 5 x Audio jacks
Memory QVL (Qualified Vendors Lists). • 1 x Optical S/PDIF out port
Graphics • 1 x DisplayPort 1.4* Internal I/O Connectors • Fan and cooling related
TM
• 1 x HDMI 1.4b -1 x 4-pin CPU Fan header(s)
*Support DisplayPort 1.4 with max. resolution of 4096 x -1 x 4-pin CPU OPT Fan header(s)
Networks
Networks
2304 @60Hz. Please refer to www.intel.com for any update. -1 x 4-pin AIO Pump header(s)
**Graphics specfications may vary between CPU types. -2 x 4-pin Chassis Fan header(s)
Expansion Slots • Intel® 10th Gen processors -1 x 4-pin M.2 Fan header(s)
-2 x PCIe 3.0 x16 slots (support x16, x8/x8 modes) -1 x W_PUMP+ header(s)
• Intel® Z490 Chipset • Power related
-1 x PCIe 3.0 x16 slot (supports x4 mode) -1 x 24-pin Main Power connector
-3 x PCIe 3.0 x1 slots* -1 x 8-pin +12V Power connector
*The PCIe x1_2 slot shares bandwidth with M.2 slot (Key E). -1 x 4-pin +12V Power connector
**Support PCIe bifurcation for RAID on CPU function. • Storage related
Multi-GPU support • Supports NVIDIA 2-Way SLI® Technology -2 x M.2 slots (Key M)
• Supports AMD 3-Way CrossFireX™ Technology -6 x SATA 6Gb/s ports
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports • USB
• Intel® Z490 Chipset -1 x USB 3.2 Gen 2 front panel connector(s) (suppport(s)
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports USB Type-C®)
PCIe 3.0 x4 & SATA modes)* -1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports 3.2 Gen 1 ports
PCIe 3.0 x2, x4 mode)** -2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
ODD & Storage
ODD & Storage
-6 x SATA 6Gb/s ports • Miscellaneous
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 -2 x AURA Addressable Gen 2 header(s)
-Intel® Optane™ Memory Ready -2 x AURA RGB header(s)
*The M.2_1 socket shares bandwidth with SATA_2. -1 x Clear CMOS header
**M.2_2 slot shares bandwidth with SATA_56. When M.2_2 -1 x COM Port header
slot is operating in PCIe x4 mode, SATA_56 will be disabled. -1 x CPU Over Voltage jumper
Ethernet • 1 x Intel® I225-V Ethernet -1 x Front Panel Audio header (AAFP)
• ASUS LANGuard -1 x M.2 slot (Key E)
Wireless & Bluetooth • M.2 slot (Key E) (Wi-Fi module is sold separately) -1 x Power button
Audio • Realtek® S1220A 8-Channel High Definition Audio CODEC -1 x 20-3 System Panel header with Chassis intrude function
- Impedance sense for front and rear headphone outputs -1 x Thermal Sensor header
- Internal audio Amplifier to enhance the highest quality -1 x Thunderbolt header
sound for headphone and speakers Software Features <ASUS Exclusive Software>
- Supports : Jack-detection, Multi-streaming, Front Panel • Armoury Crate:
Jack-retasking - Aura Creator - Aura Sync -AI Suite 3
- High quality 120 dB SNR stereo playback output and 113 - 5-way Optimization with AI Overclocking
dB SNR recording input (Line-in) TPU EPU Digi+ VRM Fan Xpert 4 Turbo app
- Supports up to 32-Bit/192kHz playback* - EZ update
• Audio Features: • AI Charger
Server & Workstation
- Power pre-regulator reduces power input noise to • ASUS Turbo LAN
Server & Workstation
ensure consistent performance • DTS:X® Ultra
- Rear optical S/PDIF out port <UEFI BIOS>
- Premium Japanese audio capacitors • AI Overclocking Guide
- Audio Shielding • ASUS EZ DIY :
- Dedicated audio PCB layers - ASUS CrashFree BIOS 3
- Audio cover - ASUS EZ Flash 3
- Unique de-pop circuit - ASUS UEFI BIOS EZ Mode
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not - EZ Tuning Wizard
supported for 8-Channel audio. • FlexKey
USB • Rear USB (Total 8 ports) BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
-4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C®) Manageability • WOL by PME, PXE
-2 x USB 3.2 Gen 1 port(s) (2 x Type-A) Accessories • Cables
-2 x USB 2.0 port(s) (2 x Type-A) -3 x SATA 6Gb/s cables
Mini / Stick PC
Mini / Stick PC
• Front USB (Total 7 ports) • Documentation
-1 x USB 3.2 Gen 2 front panel connector(s) (suppport(s) -1 x User manual
USB Type-C®) • Installation Media
-1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB -1 x Support DVD
3.2 Gen 1 ports • Miscellaneous
-2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports -1 x M.2 Rubber Package(s)
ASUS Special Features • ASUS 5X PROTECTION III -1 x M.2 SSD screw package(s)
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) -1 x M.2 Key E screw package
- ASUS Enhanced DRAM Overcurrent Protection -1 x Q-connector
- ASUS ESD Guards -1 x Fan bracket
- ASUS LANGuard Operating System • Windows® 10 - 64 bit
- ASUS Overvoltage Protection Form Factor • ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- ASUS Stainless-Steel Back I/O
Peripherals
Peripherals
• ASUS Q-Design : Note: The specifications are subject to changes without notice.
