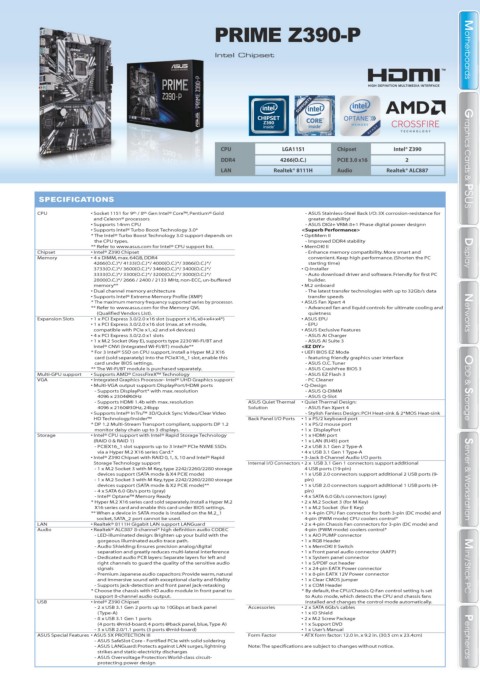

PRIME Z490M-PLUS PRIME Z390-P

Intel Chipset Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® Z390
DDR4 4266(O.C.) PCIE 3.0 x16 2 Graphics Cards & PSUS

LAN Realtek® 8111H Audio Realtek® ALC887

SPECIFICATIONS
Graphics Cards & PSUS
CPU • Socket 1151 for 9 th / 8 th Gen Intel® Core™, Pentium® Gold - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
and Celeron® processors greater durability!
• Supports 14nm CPU - ASUS DIGI+ VRM: 8+1 Phase digital power designn
• Supports Intel® Turbo Boost Technology 3.0* <Superb Performance>
* The Intel® Turbo Boost Technology 3.0 support depends on • OptiMem II
the CPU types. - Improved DDR4 stability
** Refer to www.asus.com for Intel® CPU support list. • MemOK! II
Chipset • Intel® Z390 Chipset - Enhance memory compatibility. More smart and Display
Memory • 4 x DIMM, max. 64GB, DDR4 convenient. Keep high performance. (Shorten the PC
4266(O.C.)*/ 4133(O.C.)*/ 4000(O.C.)*/ 3866(O.C.)*/ starting time)
3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ • Q-Installer
Display
3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ - Auto download driver and software. Friendly for first PC
2800(O.C.)*/ 2666 / 2400 / 2133 MHz, non-ECC, un-buffered builder.
memory** • M.2 onboard
• Dual channel memory architecture - The latest transfer technologies with up to 32Gb/s data
• Supports Intel® Extreme Memory Profile (XMP) transfer speeds
* The maximum memory frequency supported varies by processor. • ASUS Fan Xpert 4
** Refer to www.asus.com for the Memory QVL - Advanced fan and liquid controls for ultimate cooling and
(Qualified Vendors List). quietness Networks Networks
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot (support x16, x8+x4+x4*) • ASUS EPU
• 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, - EPU
compatible with PCIe x1, x2 and x4 devices) • ASUS Exclusive Features
• 4 x PCI Express 3.0/2.0 x1 slots - ASUS Ai Charger
• 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and - ASUS Ai Suite 3
Intel® CNVi (Integrated Wi-Fi/BT) module** <EZ DIY>
* For 3 Intel® SSD on CPU support, install a Hyper M.2 X16 • UEFI BIOS EZ Mode
card (sold separately) into the PCIeX16_1 slot, enable this - featuring friendly graphics user interface
card under BIOS settings. - ASUS O.C. Tuner
** The Wi-Fi/BT module is purchased separately. - ASUS CrashFree BIOS 3
Multi-GPU support • Supports AMD® CrossFireX™ Technology - ASUS EZ Flash 3
VGA • Integrated Graphics Processor- Intel® UHD Graphics support - PC Cleaner
• Multi-VGA output support: DisplayPort/HDMI ports • Q-Design
- Supports DisplayPort* with max. resolution - ASUS Q-DIMM ODD & Storage ODD & Storage
4096 x 2304@60Hz - ASUS Q-Slot
- Supports HDMI 1.4b with max. resolution ASUS Quiet Thermal • Quiet Thermal Design:
4096 x 2160@30Hz, 24bpp Solution - ASUS Fan Xpert 4
• Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video - Stylish Fanless Design: PCH Heat-sink & 2*MOS Heat-sink
HD Technology/Insider™ Back Panel I/O Ports • 1 x PS/2 keyboard port
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 • 1 x PS/2 mouse port
monitor daisy chain up to 3 displays. • 1 x DisplayPort

Storage • Intel® CPU support with Intel® Rapid Storage Technology • 1 x HDMI port
(RAID 0 & RAID 1) • 1 x LAN (RJ45) port
- PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs • 2 x USB 3.1 Gen 2 Type-A
via a Hyper M.2 X16 series Card.* • 4 x USB 3.1 Gen 1 Type-A
• Intel® Z390 Chipset with RAID 0, 1, 5, 10 and Intel® Rapid • 3-Jack 8-Channel Audio I/O ports
Storage Technology support Internal I/O Connectors • 2 x USB 3.1 Gen 1 connectors support additional
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage 4 USB ports (19-pin)
devices support (SATA mode & X4 PCIE mode) • 1 x USB 2.0 connectors support additional 2 USB ports (9-
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage pin) Server & Workstation Server & Workstation
devices support (SATA mode & X2 PCIE mode)** • 1 x USB 2.0 connectors support additional 1 USB ports (4-
- 4 x SATA 6.0 Gb/s ports (gray) pin)
- Intel® Optane™ Memory Ready • 4 x SATA 6.0 Gb/s connectors (gray)
* Hyper M.2 X16 series card sold separately. Install a Hyper M.2 • 2 x M.2 Socket 3 (for M Key)
X16 series card and enable this card under BIOS settings. • 1 x M.2 Socket (for E Key)
** When a device in SATA mode is installed on the M.2_1 • 1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and
socket, SATA_2 port cannot be used. 4-pin (PWM mode) CPU coolers control*
LAN • Realtek® 8111H Gigabit LAN support LANGuard • 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and

Audio • Realtek® ALC887 8-channel* high definition audio CODEC 4-pin (PWM mode) coolers control*
- LED-illuminated design: Brighten up your build with the • 1 x AIO PUMP connector
gorgeous illuminated audio trace path. • 1 x RGB Header
- Audio Shielding: Ensures precision analog/digital • 1 x MemOK! II Switch
separation and greatly reduces multi-lateral interference • 1 x Front panel audio connector (AAFP)
- Dedicated audio PCB layers: Separate layers for left and • 1 x System panel connector
right channels to guard the quality of the sensitive audio • 1 x S/PDIF out header
signals • 1 x 24-pin EATX Power connector Mini / Stick PC
- Premium Japanese audio capacitors: Provide warm, natural • 1 x 8-pin EATX 12V Power connector
and immersive sound with exceptional clarity and fidelity • 1 x Clear CMOS jumper
- Supports jack-detection and front panel jack-retasking • 1 x COM Header
* Choose the chassis with HD audio module in front panel to * By default, the CPU/Chassis Q-Fan control setting is set
Mini / Stick PC
support 8-channel audio output. to Auto mode, which detects the CPU and chassis fans
USB • Intel® Z390 Chipset installed and changes the control mode automatically.
- 2 x USB 3.1 Gen 2 ports up to 10Gbps at back panel Accessories • 2 x SATA 6Gb/s cables
(Type-A) • 1 x IO Shield
- 8 x USB 3.1 Gen 1 ports • 2 x M.2 Screw Package
(4 ports @mid-board; 4 ports @back panel, blue, Type A) • 1 x Support DVD
- 3 x USB 2.0/1.1 ports (3 ports @mid-board) • 1 x User’s Manual
ASUS Special Features • ASUS 5X PROTECTION III Form Factor • ATX form factor: 12.0 in. x 9.2 in. (30.5 cm x 23.4cm) Peripherals
- ASUS SafeSlot Core - Fortified PCIe with solid soldering
- ASUS LANGuard: Protects against LAN surges, lightning Note: The specifications are subject to changes without notice.
