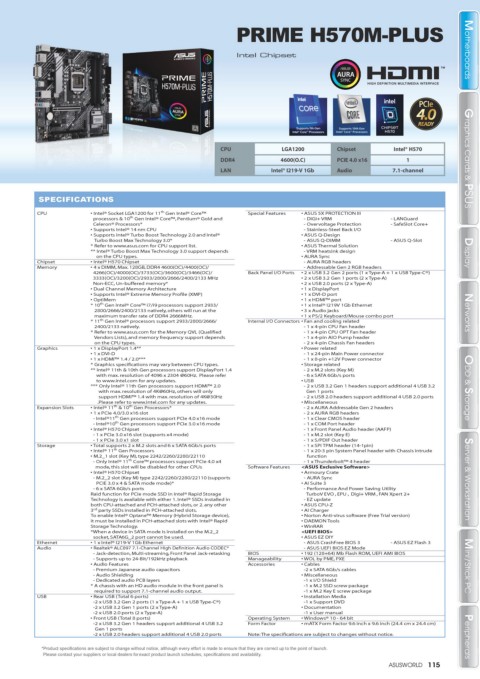

PRIME H570M-PLUS

Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel® H570
DDR4 4600(O.C) PCIE 4.0 x16 Graphics Cards & PSUS 1 Graphics Cards & PSUS

LAN Intel® I219-V 1Gb Audio 7.1-channel

SPECIFICATIONS
th
CPU • Intel® Socket LGA1200 for 11 Gen Intel® Core™ Special Features • ASUS 5X PROTECTION III
th
processors & 10 Gen Intel® Core™, Pentium® Gold and - DIGI+ VRM - LANGuard
Celeron® Processors* - Overvoltage Protection - SafeSlot Core+
• Supports Intel® 14 nm CPU - Stainless-Steel Back I/O
• Supports Intel® Turbo Boost Technology 2.0 and Intel® • ASUS Q-Design
Turbo Boost Max Technology 3.0* - ASUS Q-DIMM - ASUS Q-Slot
* Refer to www.asus.com for CPU support list. • ASUS Thermal Solution
** Intel® Turbo Boost Max Technology 3.0 support depends - VRM heatsink design
on the CPU types. • AURA Sync Display
Chipset • Intel® H570 Chipset - AURA RGB headers
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/ - Addressable Gen 2 RGB headers
Display
4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
Non-ECC, Un-buffered memory* • 2 x USB 2.0 ports (2 x Type-A)
• Dual Channel Memory Architecture • 1 x DisplayPort
• Supports Intel® Extreme Memory Profile (XMP) • 1 x DVI-D port
• OptiMem • 1 x HDMI™ port
th
* 10 Gen Intel® Core™ i7/i9 processors support 2933/ • 1 x Intel® I219V 1Gb Ethernet
2800/2666/2400/2133 natively, others will run at the • 3 x Audio jacks Networks Networks
maximum transfer rate of DDR4 2666MHz. • 1 x PS/2 Keyboard/Mouse combo port
th
* 11 Gen Intel® processors support 2933/2800/2666/ Internal I/O Connectors • Fan and cooling related
2400/2133 natively. - 1 x 4-pin CPU Fan header
* Refer to www.asus.com for the Memory QVL (Qualified - 1 x 4-pin CPU OPT Fan header
Vendors Lists), and memory frequency support depends - 1 x 4-pin AIO Pump header
on the CPU types. - 2 x 4-pin Chassis Fan headers
Graphics • 1 x DisplayPort 1.4** • Power related
• 1 x DVI-D - 1 x 24-pin Main Power connector
• 1 x HDMI™ 1.4 / 2.0*** - 1 x 8-pin +12V Power connector
* Graphics specifications may vary between CPU types. • Storage related
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 - 2 x M.2 slots (Key M)
with max. resolution of 4096 x 2304 @60Hz. Please refer - 6 x SATA 6Gb/s ports
to www.intel.com for any updates. • USB
*** Only Intel® 11th Gen processors support HDMI™ 2.0 - 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 ODD & Storage
with max. resolution of 4K@60Hz, others will only Gen 1 ports
support HDMI™ 1.4 with max. resolution of 4K@30Hz - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
.Please refer to www.intel.com for any updates. • Miscellaneous
th
th
Expansion Slots • Intel® 11 & 10 Gen Processors* - 2 x AURA Addressable Gen 2 headers
• 1 x PCIe 4.0/3.0 x16 slot - 2 x AURA RGB headers
th
- Intel®11 Gen processors support PCIe 4.0 x16 mode - 1 x Clear CMOS header
th
ODD & Storage
- Intel®10 Gen processors support PCIe 3.0 x16 mode - 1 x COM Port header
• Intel® H570 Chipset - 1 x Front Panel Audio header (AAFP)
- 1 x PCIe 3.0 x16 slot (supports x4 mode) - 1 x M.2 slot (Key E)
- 1 x PCIe 3.0 x1 slot - 1 x S/PDIF Out header
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports - 1 x SPI TPM header (14-1pin)
th
• Intel® 11 Gen Processors - 1 x 20-3 pin System Panel header with Chassis intrude
• M.2_1 slot (Key M), type 2242/2260/2280/22110 function
th
- Only Intel® 11 Core™ processors support PCIe 4.0 x4 - 1 x Thunderbolt™ 4 header
mode, this slot will be disabled for other CPUs Software Features <ASUS Exclusive Software>
• Intel® H570 Chipset • Armoury Crate
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports - AURA Sync Server & Workstation Server & Workstation
PCIE 3.0 x 4 & SATA mode mode)* • AI Suite 3
- 6 x SATA 6Gb/s ports - Performance And Power Saving Utility
Raid function for PCIe mode SSD in Intel® Rapid Storage TurboV EVO , EPU , Digi+ VRM , FAN Xpert 2+
Technology is available with either 1. Intel® SSDs installed in - EZ update
both CPU-attached and PCH-attached slots, or 2. any other • ASUS CPU-Z
3 rd party SSDs installed in PCH-attached slots. • AI Charger
To enable Intel® Optane™ Memory (Hybrid Storage device), • Norton Anti-virus software (Free Trial version)
it must be installed in PCH-attached slots with Intel® Rapid • DAEMON Tools
Storage Technology. • WinRAR
*When a device in SATA mode is installed on the M.2_2 <UEFI BIOS>
socket, SATA6G_2 port cannot be used. • ASUS EZ DIY
Ethernet • 1 x Intel® I219-V 1Gb Ethernet - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
Audio • Realtek® ALC897 7.1-Channel High Definition Audio CODEC* - ASUS UEFI BIOS EZ Mode
- Jack-detection, Multi-streaming, Front Panel Jack-retasking BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Supports up to 24-Bit/192kHz playback Manageability • WOL by PME, PXE
• Audio Features Accessories • Cables Mini / Stick PC
- Premium Japanese audio capacitors -2 x SATA 6Gb/s cables
- Audio Shielding • Miscellaneous
- Dedicated audio PCB layers -1 x I/O Shield
* A chassis with an HD audio module in the front panel is -1 x M.2 SSD screw package
required to support 7.1-channel audio output. -1 x M.2 Key E screw package
Mini / Stick PC
USB • Rear USB (Total 6 ports) • Installation Media
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) -1 x Support DVD
-2 x USB 3.2 Gen 1 ports (2 x Type-A) • Documentation
-2 x USB 2.0 ports (2 x Type-A) -1 x User manual
• Front USB (Total 8 ports) Operating System • Windows® 10 - 64 bit
-2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Form Factor • mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Gen 1 ports
-2 x USB 2.0 headers support additional 4 USB 2.0 ports Note: The specifications are subject to changes without notice. Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
