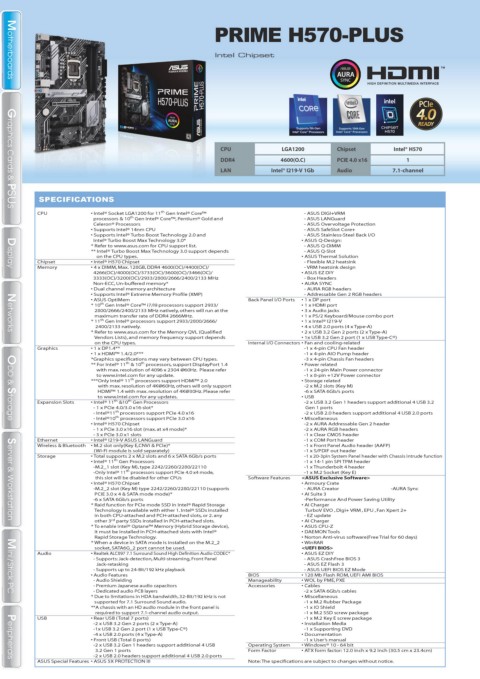

PRIME H570-PLUS

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® H570
DDR4 4600(O.C) PCIE 4.0 x16 1

LAN Intel® I219-V 1Gb Audio 7.1-channel

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
th
CPU • Intel® Socket LGA1200 for 11 Gen Intel® Core™ - ASUS DIGI+VRM
th
processors & 10 Gen Intel® Core™, Pentium® Gold and - ASUS LANGuard
Celeron® Processors - ASUS Overvoltage Protection
• Supports Intel® 14nm CPU - ASUS SafeSlot Core+
• Supports Intel® Turbo Boost Technology 2.0 and - ASUS Stainless-Steel Back I/O
Intel® Turbo Boost Max Technology 3.0* • ASUS Q-Design:
* Refer to www.asus.com for CPU support list. - ASUS Q-DIMM
** Intel® Turbo Boost Max Technology 3.0 support depends - ASUS Q-Slot
on the CPU types. • ASUS Thermal Solution
Chipset • Intel® H570 Chipset - Flexible M.2 heatsink
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/ - VRM heatsink design
Display
Display
4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ • ASUS EZ DIY
3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz - Box Headers
Non-ECC, Un-buffered memory* • AURA SYNC
• Dual channel memory architecture - AURA RGB headers
• Supports Intel® Extreme Memory Profile (XMP) - Addressable Gen 2 RGB headers
• ASUS OptiMem Back Panel I/O Ports • 1 x DP port
th
* 10 Gen Intel® Core™ i7/i9 processors support 2933/ • 1 x HDMI port
2800/2666/2400/2133 MHz natively, others will run at the • 3 x Audio jacks
maximum transfer rate of DDR4 2666MHz. • 1 x PS/2 Keyboard/Mouse combo port
th
* 11 Gen Intel® processors support 2933/2800/2666/ • 1 x Intel® I219-V
2400/2133 natively. • 4 x USB 2.0 ports (4 x Type-A)
* Refer to www.asus.com for the Memory QVL (Qualified • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
Networks
Networks
Vendors Lists), and memory frequency support depends • 1x USB 3.2 Gen 2 port (1 x USB Type-C®)
on the CPU types. Internal I/O Connectors • Fan and cooling-related
Graphics • 1 x DP1.4** -1 x 4-pin CPU Fan header
• 1 x HDMI™ 1.4/2.0*** -1 x 4-pin AIO Pump header
*Graphics specifications may vary between CPU types. -3 x 4-pin Chassis Fan headers
th
th
** For Intel® 11 & 10 processors, support DisplayPort 1.4 • Power related
with max. resolution of 4096 x 2304 @60Hz. Please refer -1 x 24-pin Main Power connector
to www.intel.com for any update. -1 x 8-pin +12V Power connector
th
***Only Intel® 11 processors support HDMI™ 2.0 • Storage related
with max. resolution of 4K@60Hz, others will only support -2 x M.2 slots (Key M)
HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer -6 x SATA 6Gb/s ports
to www.intel.com for any updates. • USB
th
th
Expansion Slots • Intel® 11 &10 Gen Processors -2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2
- 1 x PCIe 4.0/3.0 x16 slot* Gen 1 ports
th
- Intel®11 processors support PCIe 4.0 x16 -2 x USB 2.0 headers support additional 4 USB 2.0 ports
th
- Intel®10 processors support PCIe 3.0 x16 • Miscellaneous
ODD & Storage
ODD & Storage
• Intel® H570 Chipset -2 x AURA Addressable Gen 2 header
- 1 x PCIe 3.0 x16 slot (max. at x4 mode)* -2 x AURA RGB headers
- 3 x PCIe 3.0 x1 slots -1 x Clear CMOS header

Ethernet • Intel® I219-V ASUS LANGuard -1 x COM Port header

Wireless & Bluetooth • M.2 slot only(Key E,CNVi & PCIe)* -1 x Front Panel Audio header (AAFP)

(Wi-Fi module is sold separately) -1 x S/PDIF out header
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports -1 x 20-3pin System Panel header with Chassis intrude function
th
• Intel® 11 Gen Processors -1 x 14-1 pin SPI TPM header
-M.2_1 slot (Key M), type 2242/2260/2280/22110 -1 x Thunderbolt 4 header
th
-Only Intel® 11 processors support PCIe 4.0 x4 mode, -1 x M.2 Socket (Key E)
this slot will be disabled for other CPUs Software Features <ASUS Exclusive Software>
• Intel® H570 Chipset • Armoury Crate
-M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports - AURA Creator -AURA Sync
PCIE 3.0 x 4 & SATA mode mode)* • AI Suite 3
-6 x SATA 6Gb/s ports -Performance And Power Saving Utility
* Raid function for PCIe mode SSD in Intel® Rapid Storage • AI Charger
Technology is available with either 1. Intel® SSDs installed TurboV EVO , Digi+ VRM , EPU , Fan Xpert 2+
in both CPU-attached and PCH-attached slots, or 2. any - EZ update
other 3 rd party SSDs installed in PCH-attached slots. • AI Charger
Server & Workstation
Server & Workstation
* To enable Intel® Optane™ Memory (Hybrid Storage device), • ASUS CPU-Z
it must be installed in PCH-attached slots with Intel® • DAEMON Tools
Rapid Storage Technology. • Norton Anti-virus software(Free Trial for 60 days)
* When a device in SATA mode is installed on the M.2_2 • WinRAR
socket, SATA6G_2 port cannot be used. <UEFI BIOS>
Audio • Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* • ASUS EZ DIY
- Supports: Jack-detection, Multi-streaming, Front Panel - ASUS CrashFree BIOS 3
Jack-retasking - ASUS EZ Flash 3
- Supports up to 24-Bit/192 kHz playback - ASUS UEFI BIOS EZ Mode
• Audio Features BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- Audio Shielding Manageability • WOL by PME, PXE
- Premium Japanese audio capacitors Accessories • Cables
- Dedicated audio PCB layers -2 x SATA 6Gb/s cables
Mini / Stick PC
Mini / Stick PC
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not • Miscellaneous
supported for 7.1 Surround Sound audio. -1 x M.2 Rubber Package
**A chassis with an HD audio module in the front panel is -1 x IO Shield
required to support 7.1-channel audio output. -1 x M.2 SSD screw package
USB • Rear USB (Total 7 ports) -1 x M.2 Key E screw package
-2 x USB 3.2 Gen 2 ports (2 x Type-A) • Installation Media
-1x USB 3.2 Gen 2 port (1 x USB Type-C®) -1 x Supporting DVD
-4 x USB 2.0 ports (4 x Type-A) • Documentation
• Front USB (Total 8 ports) -1 x User’s manual
-2 x USB 3.2 Gen 1 headers support additional 4 USB Operating System • Windows® 10 - 64 bit
3.2 Gen 1 ports Form Factor • ATX form factor: 12.0 inch x 9.2 inch (30.5 cm x 23.4cm)
-2 x USB 2.0 headers support additional 4 USB 2.0 ports
Peripherals
Peripherals
ASUS Special Features • ASUS 5X PROTECTION III Note: The specifications are subject to changes without notice.
