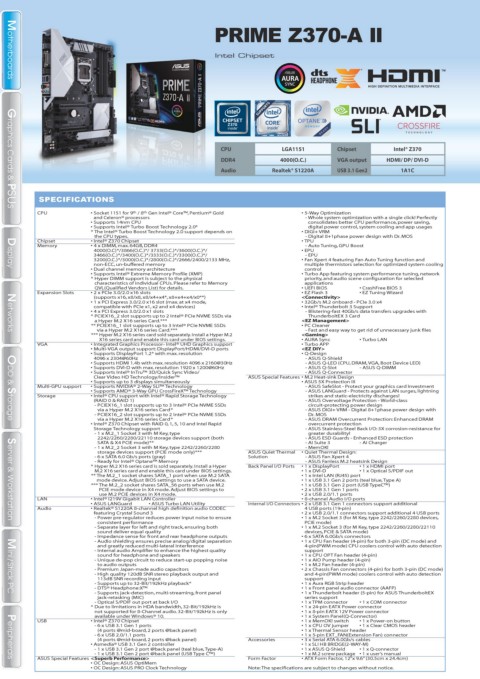

PRIME Z370-A II

Intel Chipset

Motherboards
Motherboards

CPU LGA1151 Chipset Intel® Z370
DDR4 4000(O.C.) VGA output HDMI/ DP/ DVI-D

Audio Realtek® S1220A USB 3.1 Gen2 1A1C

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Socket 1151 for 9 th / 8 th Gen Intel® Core™, Pentium® Gold • 5-Way Optimization
and Celeron® processors - Whole system optimization with a single click! Perfectly
• Supports 14nm CPU consolidates better CPU performance, power saving,
• Supports Intel® Turbo Boost Technology 2.0* digital power control, system cooling and app usages
* The Intel® Turbo Boost Technology 2.0 support depends on • DIGI+ VRM
the CPU types. - Digital 8+1phase power design with Dr. MOS
Chipset • Intel® Z370 Chipset • TPU
Memory • 4 x DIMM, max. 64GB, DDR4 - Auto Tuning, GPU Boost
4000(O.C)*/3866(O.C.)*/ 3733(O.C.)*/3600(O.C.)*/ • EPU
3466(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/ - EPU
3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666/2400/2133 MHz, • Fan Xpert 4 featuring Fan Auto Tuning function and
non-ECC, un-buffered memory multiple thermistors selection for optimized system cooling
• Dual channel memory architecture control
Display
Display
• Supports Intel® Extreme Memory Profile (XMP) • Turbo App featuring system performance tuning, network
* Hyper DIMM support is subject to the physical priority, and audio scene configuration for selected
characteristics of individual CPUs. Please refer to Memory applications
QVL(Qualified Vendors List) for details. • UEFI BIOS • CrashFree BIOS 3
Expansion Slots • 2 x PCIe 3.0/2.0 x16 slots • EZ Flash 3 • EZ Tuning Wizard

(supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) <Connectivity>
• 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, • 32Gb/s M.2 onboard - PCIe 3.0 x4
compatible with PCIe x1, x2 and x4 devices) • Intel® Thunderbolt 3 Support
• 4 x PCI Express 3.0/2.0 x1 slots - Blistering-fast 40Gb/s data transfers upgrades with
* PCIEX16_2 slot supports up to 2 Intel® PCIe NVME SSDs via ThunderboltEX 3 Card
a Hyper M.2 X16 series Card.*** <EZ Management>
** PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs • PC Cleaner
via a Hyper M.2 X16 series Card.*** - Fast and easy way to get rid of unnecessary junk files

Networks
Networks
*** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 <Gaming>
X16 series card and enable this card under BIOS settings. • AURA Sync • Turbo LAN
VGA • Integrated Graphics Processor- Intel® UHD Graphics support • Turbo APP
• Multi-VGA output support: DisplayPort/HDMI/DVI-D ports <EZ DIY>
• Supports DisplayPort 1.2* with max. resolution • Q-Design
4096 x 2304@60Hz - ASUS Q-Shield

• Supports HDMI 1.4b with max. resolution 4096 x 2160@30Hz - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• Supports DVI-D with max. resolution 1920 x 1200@60Hz - ASUS Q-Slot - ASUS Q-DIMM
• Supports Intel® InTru™ 3D/Quick Sync Video/ - ASUS Q-Connector
Clear Video HD Technology/Insider™ ASUS Special Features • M.2 Heat-sink Design
• Supports up to 3 displays simultaneously • ASUS 5X Protection III

Multi-GPU support • Supports NVIDIA® 2-Way SLI™ Technology - ASUS SafeSlot - Protect your graphics card Investment
• Supports AMD® 3-Way GPU CrossFireX™ Technology - ASUS LANGuard - Protects against LAN surges, lightning

Storage • Intel® CPU support with Intel® Rapid Storage Technology strikes and static-electricity discharges!

(RAID 0 & RAID 1) - ASUS Overvoltage Protection - World-class
- PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs circuit-protecting power design
via a Hyper M.2 X16 series Card * - ASUS DIGI+ VRM - Digital 8+1phase power design with
- PCIEX16_2 slot supports up to 2 Intel® PCIe NVME SSDs Dr. MOS
via a Hyper M.2 X16 series Card * - ASUS DRAM Overcurrent Protection: Enhanced DRAM
ODD & Storage
ODD & Storage
• Intel® Z370 Chipset with RAID 0, 1, 5, 10 and Intel Rapid overcurrent protection
Storage Technology support - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
- 1 x M.2_1 Socket 3 with M Key, type greater durability!
2242/2260/2280/22110 storage devices support (both - ASUS ESD Guards - Enhanced ESD protection
SATA & X4 PCIE mode)** - AI Suite 3 - Ai Charger
- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 - MemOK!
storage devices support (PCIE mode only)*** ASUS Quiet Thermal • Quiet Thermal Design:
- 6 x SATA 6.0 Gb/s ports (gray) Solution - ASUS Fan Xpert 4
- Ready for Intel® Optane™ Memory - ASUS Fanless M.2 heatsink Design
* Hyper M.2 X16 series card is sold separately. Install a Hyper Back Panel I/O Ports • 1 x DisplayPort • 1 x HDMI port
M.2 X16 series card and enable this card under BIOS settings. • 1 x DVI-D • 1 x Optical S/PDIF out
** The M.2_1 socket shares SATA_1 port when use M.2 SATA • 1 x Intel LAN (RJ45) port
mode device. Adjust BIOS settings to use a SATA device. • 1 x USB 3.1 Gen 2 ports (teal blue, Type A)
*** The M.2_2 socket shares SATA_56 ports when use M.2 • 1 x USB 3.1 Gen 2 port (USB TypeC™)
PCIE mode device in X4 mode. Adjust BIOS settings to • 2 x USB 3.1 Gen 1 ports
use M.2 PCIE devices in X4 mode. • 2 x USB 2.0/1.1 ports
LAN • Intel® I219V Gigabit LAN Controller • 8-channel Audio I/O ports
• ASUS LANGuard • ASUS Turbo LAN Utility Internal I/O Connectors • 2 x USB 3.1 Gen 1 connectors support additional

Audio • Realtek® S1220A 8-channel high definition audio CODEC 4 USB ports (19-pin)
featuring Crystal Sound 3 • 2 x USB 2.0/1.1 connectors support additional 4 USB ports
- Power pre-regulator reduces power input noise to ensure • 1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices,
Server & Workstation
Server & Workstation
consistent performance PCIE mode)
- Separate layer for left and right track, ensuring both • 1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110
sound deliver equal quality devices, PCIE & SATA mode)
- Impedance sense for front and rear headphone outputs • 6 x SATA 6.0Gb/s connectors
- Audio shielding ensures precise analog/digital separation • 1 x CPU Fan header (4-pin) for both 3-pin (DC mode) and
and greatly reduced multi-lateral interference 4-pin(PWM mode) CPU coolers control with auto detection
- Internal audio Amplifier to enhance the highest quality support
sound for headphone and speakers • 1 x CPU OPT Fan header (4-pin)
- Unique de-pop circuit to reduce start-up popping noise • 1 x AIO Pump header (4-pin)
to audio outputs • 1 x M.2 Fan header (4-pin)
- Premium Japan-made audio capacitors • 2 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode)
- High quality 120dB SNR stereo playback output and and 4-pin(PWM mode) coolers control with auto detection
113dB SNR recording input support
- Supports up to 32-Bit/192kHz playback* • 1 x Aura RGB Strip header
- DTS® Headphone:X™ • 1 x Front panel audio connector (AAFP)
- Supports jack-detection, multi-streaming, front panel • 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX
Mini / Stick PC
Mini / Stick PC
jack-retasking (MIC) series support
- Optical S/PDIF out port at back I/O • 1 x TPM connector • 1 x COM connector
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is • 1 x 24-pin EATX Power connector
not supported for 8-Channel audio. 32-Bit/192kHz is only • 1 x 8-pin EATX 12V Power connector
available under Windows® 10. • 1 x System Panel(Q-Connector)
USB • Intel® Z370 Chipset • 1 x MemOK! switch • 1 x Power-on button
- 6 x USB 3.1 Gen 1 ports • 1 x CPU OV jumper • 1 x Clear CMOS header
(4 ports @mid-board, 2 ports @back panel) • 1 x Thermal Sensor header
- 6 x USB 2.0/1.1 ports • 1 x 5-pin EXT_FAN(Extension Fan) connector
(4 ports @mid-board, 2 ports @back panel) Accessories • 3 x Serial ATA 6.0Gb/s cables
• Asmedia® USB 3.1 Gen 2 controller • 1 x SLI HB BRIDGE(2-WAY-M)
- 1 x USB 3.1 Gen 2 port @back panel (teal blue, Type-A) • 1 x ASUS Q-Shield • 1 x Q-connector
- 1 x USB 3.1 Gen 2 port @back panel (USB Type C™) • 1 x M.2 screw package • 1 x user’s manual
ASUS Special Features <Superb Performance> Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
Peripherals
Peripherals
• OC Design: ASUS OptiMem
• OC Design: ASUS PRO Clock Technology Note: The specifications are subject to changes without notice.
