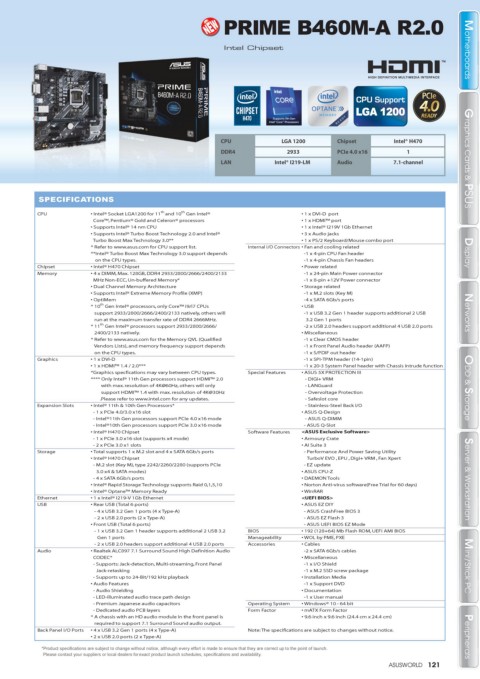

Page 123 - ASUS_WORLD_134_ebook

PRIME B460M-A R2.0

Intel Chipset Motherboards Motherboards

CPU LGA 1200 Chipset Intel® H470
DDR4 2933 PCIe 4.0 x16 1
LAN Intel® I219-LM Audio 7.1-channel Graphics Cards & PSUS

SPECIFICATIONS
Graphics Cards & PSUS
th
th
CPU • Intel® Socket LGA1200 for 11 and 10 Gen Intel® • 1 x DVI-D port
Core™, Pentium® Gold and Celeron® processors • 1 x HDMI™ port
• Supports Intel® 14 nm CPU • 1 x Intel® I219V 1Gb Ethernet
• Supports Intel® Turbo Boost Technology 2.0 and Intel® • 3 x Audio jacks
Turbo Boost Max Technology 3.0** • 1 x PS/2 Keyboard/Mouse combo port
* Refer to www.asus.com for CPU support list. Internal I/O Connectors • Fan and cooling related
**Intel® Turbo Boost Max Technology 3.0 support depends -1 x 4-pin CPU Fan header Display Display
on the CPU types. -1 x 4-pin Chassis Fan headers
Chipset • Intel® H470 Chipset • Power related
Memory • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 -1 x 24-pin Main Power connector
MHz Non-ECC, Un-buffered Memory* -1 x 8-pin +12V Power connector
• Dual Channel Memory Architecture • Storage related
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem -4 x SATA 6Gb/s ports
th
* 10 Gen Intel® processors, only Core™ i9/i7 CPUs • USB
support 2933/2800/2666/2400/2133 natively, others will -1 x USB 3.2 Gen 1 header supports additional 2 USB Networks
run at the maximum transfer rate of DDR4 2666MHz. 3.2 Gen 1 ports
th
* 11 Gen Intel® processors support 2933/2800/2666/ -2 x USB 2.0 headers support additional 4 USB 2.0 ports
2400/2133 natively. • Miscellaneous
-1 x M.2 slots (Key M) Networks
* Refer to www.asus.com for the Memory QVL (Qualified -1 x Clear CMOS header
Vendors Lists), and memory frequency support depends -1 x Front Panel Audio header (AAFP)
on the CPU types.
Graphics • 1 x DVI-D -1 x SPI-TPM header (14-1pin)
• 1 x HDMI™ 1.4 / 2.0*** -1 x 20-3 System Panel header with Chassis intrude function
*Graphics specfications may vary between CPU types. Special Features • ASUS 5X PROTECTION III
**** Only Intel® 11th Gen processors support HDMI™ 2.0 - DIGI+ VRM
with max. resolution of 4K@60Hz, others will only - LANGuard ODD & Storage
support HDMI™ 1.4 with max. resolution of 4K@30Hz - Overvoltage Protection
.Please refer to www.intel.com for any updates. - Safeslot core
Expansion Slots • Intel® 11th & 10th Gen Processors* - Stainless-Steel Back I/O
- 1 x PCIe 4.0/3.0 x16 slot • ASUS Q-Design
- Intel®11th Gen processors support PCIe 4.0 x16 mode - ASUS Q-DIMM
-1 x S/PDIF out header ODD & Storage
- Intel®10th Gen processors support PCIe 3.0 x16 mode - ASUS Q-Slot
• Intel® H470 Chipset Software Features <ASUS Exclusive Software>
- 1 x PCIe 3.0 x16 slot (supports x4 mode) • Armoury Crate
- 2 x PCIe 3.0 x1 slots • AI Suite 3
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports - Performance And Power Saving Utility
• Intel® H470 Chipset TurboV EVO , EPU , Digi+ VRM , Fan Xpert
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe - EZ update
3.0 x4 & SATA modes) • ASUS CPU-Z
- 4 x SATA 6Gb/s ports • DAEMON Tools Server & Workstation Server & Workstation
• Intel® Rapid Storage Technology supports Raid 0,1,5,10 • Norton Anti-virus software(Free Trial for 60 days)
• Intel® Optane™ Memory Ready • WinRAR

Ethernet • 1 x Intel® I219-V 1Gb Ethernet <UEFI BIOS>
USB • Rear USB (Total 6 ports) • ASUS EZ DIY
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) - ASUS CrashFree BIOS 3
- 2 x USB 2.0 ports (2 x Type-A) - ASUS EZ Flash 3
• Front USB (Total 6 ports) - ASUS UEFI BIOS EZ Mode
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Gen 1 ports Manageability • WOL by PME, PXE

- 2 x USB 2.0 headers support additional 4 USB 2.0 ports Accessories • Cables

Audio • Realtek ALC897 7.1 Surround Sound High Definition Audio -2 x SATA 6Gb/s cables
CODEC* • Miscellaneous
- Supports: Jack-detection, Multi-streaming, Front Panel -1 x I/O Shield Mini / Stick PC Mini / Stick PC
Jack-retasking -1 x M.2 SSD screw package
- Supports up to 24-Bit/192 kHz playback • Installation Media
• Audio Features -1 x Support DVD
- Audio Shielding • Documentation
- LED-illuminated audio trace path design -1 x User manual
- Premium Japanese audio capacitors Operating System • Windows® 10 - 64 bit
- Dedicated audio PCB layers Form Factor • mATX Form Factor
* A chassis with an HD audio module in the front panel is • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports • 4 x USB 3.2 Gen 1 ports (4 x Type-A) Note: The specifications are subject to changes without notice.
• 2 x USB 2.0 ports (2 x Type-A) Peripherals Peripherals
