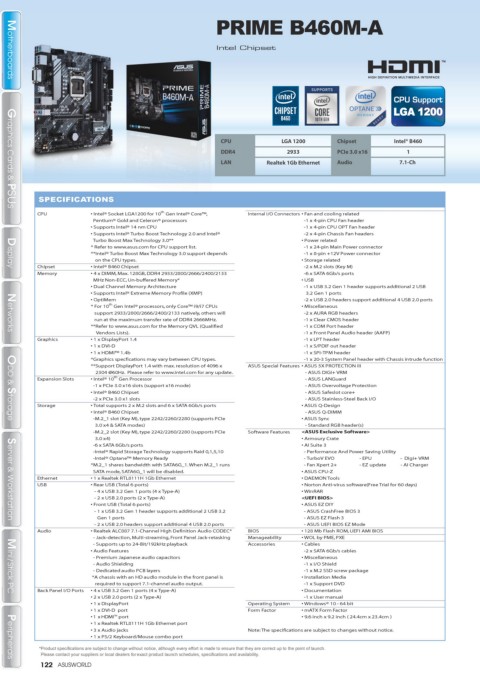

PRIME B460M-A

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® B460
DDR4 2933 PCIe 3.0 x16 1
LAN Realtek 1Gb Ethernet Audio 7.1-Ch

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
th
CPU • Intel® Socket LGA1200 for 10 Gen Intel® Core™, Internal I/O Connectors • Fan and cooling related
Pentium® Gold and Celeron® processors -1 x 4-pin CPU Fan header
• Supports Intel® 14 nm CPU -1 x 4-pin CPU OPT Fan header
• Supports Intel® Turbo Boost Technology 2.0 and Intel® -2 x 4-pin Chassis Fan headers
Turbo Boost Max Technology 3.0** • Power related
* Refer to www.asus.com for CPU support list. -1 x 24-pin Main Power connector
**Intel® Turbo Boost Max Technology 3.0 support depends -1 x 8-pin +12V Power connector
on the CPU types. • Storage related
Chipset • Intel® B460 Chipset -2 x M.2 slots (Key M)
Display
Display
Memory • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 -6 x SATA 6Gb/s ports
MHz Non-ECC, Un-buffered Memory* • USB
• Dual Channel Memory Architecture -1 x USB 3.2 Gen 1 header supports additional 2 USB
• Supports Intel® Extreme Memory Profile (XMP) 3.2 Gen 1 ports
• OptiMem -2 x USB 2.0 headers support additional 4 USB 2.0 ports
th
* For 10 Gen Intel® processors, only Core™ i9/i7 CPUs • Miscellaneous
support 2933/2800/2666/2400/2133 natively, others will -2 x AURA RGB headers
run at the maximum transfer rate of DDR4 2666MHz. -1 x Clear CMOS header
**Refer to www.asus.com for the Memory QVL (Qualified -1 x COM Port header
Vendors Lists). -1 x Front Panel Audio header (AAFP)
Networks
Networks
Graphics • 1 x DisplayPort 1.4 -1 x LPT header
• 1 x DVI-D -1 x S/PDIF out header
• 1 x HDMI™ 1.4b -1 x SPI-TPM header
*Graphics specfications may vary between CPU types. -1 x 20-3 System Panel header with Chassis intrude function
**Support DisplayPort 1.4 with max. resolution of 4096 x ASUS Special Features • ASUS 5X PROTECTION III
2304 @60Hz. Please refer to www.intel.com for any update. - ASUS DIGI+ VRM
th
Expansion Slots • Intel® 10 Gen Processor - ASUS LANGuard
-1 x PCIe 3.0 x16 slots (support x16 mode) - ASUS Overvoltage Protection
• Intel® B460 Chipset - ASUS Safeslot core+
-2 x PCIe 3.0 x1 slots - ASUS Stainless-Steel Back I/O
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports • ASUS Q-Design
• Intel® B460 Chipset - ASUS Q-DIMM
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe • ASUS Sync
ODD & Storage
ODD & Storage
3.0 x4 & SATA modes) - Standard RGB header(s)
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe Software Features <ASUS Exclusive Software>
3.0 x4) • Armoury Crate
-6 x SATA 6Gb/s ports • AI Suite 3
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 - Performance And Power Saving Utility
-Intel® Optane™ Memory Ready - TurboV EVO - EPU - Digi+ VRM
*M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs - Fan Xpert 2+ - EZ update - AI Charger
SATA mode, SATA6G_1 will be disabled. • ASUS CPU-Z
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • DAEMON Tools

USB • Rear USB (Total 6 ports) • Norton Anti-virus software(Free Trial for 60 days)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) • WinRAR
- 2 x USB 2.0 ports (2 x Type-A) <UEFI BIOS>
• Front USB (Total 6 ports) • ASUS EZ DIY
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 - ASUS CrashFree BIOS 3
Gen 1 ports - ASUS EZ Flash 3
Server & Workstation
Server & Workstation

- 2 x USB 2.0 headers support additional 4 USB 2.0 ports - ASUS UEFI BIOS EZ Mode

Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC* BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- Jack-detection, Multi-streaming, Front Panel Jack-retasking Manageability • WOL by PME, PXE
- Supports up to 24-Bit/192kHz playback Accessories • Cables
• Audio Features -2 x SATA 6Gb/s cables
- Premium Japanese audio capacitors • Miscellaneous
- Audio Shielding -1 x I/O Shield
- Dedicated audio PCB layers -1 x M.2 SSD screw package
*A chassis with an HD audio module in the front panel is • Installation Media
required to support 7.1-channel audio output. -1 x Support DVD
Back Panel I/O Ports • 4 x USB 3.2 Gen 1 ports (4 x Type-A) • Documentation
Mini / Stick PC
Mini / Stick PC
• 2 x USB 2.0 ports (2 x Type-A) -1 x User manual
• 1 x DisplayPort Operating System • Windows® 10 - 64 bit
• 1 x DVI-D port Form Factor • mATX Form Factor
TM
• 1 x HDMI port • 9.6 inch x 9.2 inch ( 24.4cm x 23.4cm )
• 1 x Realtek RTL8111H 1Gb Ethernet port
• 3 x Audio jacks Note: The specifications are subject to changes without notice.
• 1 x PS/2 Keyboard/Mouse combo port
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
