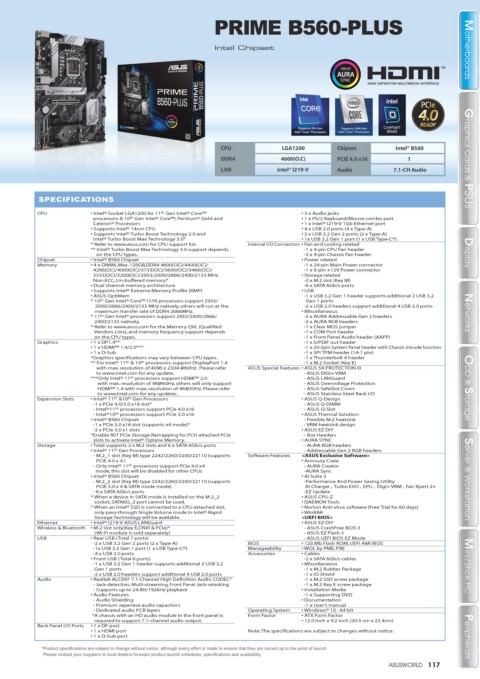

PRIME Z370-A II PRIME B560-PLUS

Intel Chipset Motherboards Motherboards
Intel Chipset

CPU LGA1200 Chipset Intel® B560
DDR4 4600(O.C) PCIE 4.0 x16 1 Graphics Cards & PSUS

LAN Intel® I219-V Audio 7.1-CH Audio
SPECIFICATIONS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 11 th Gen Intel® Core™ • 3 x Audio jacks
processors & 10 th Gen Intel® Core™, Pentium® Gold and • 1 x PS/2 Keyboard/Mouse combo port
Celeron® Processors • 1 x Intel® I219-V 1Gb Ethernet port
• Supports Intel® 14nm CPU • 4 x USB 2.0 ports (4 x Type-A)
• Supports Intel® Turbo Boost Technology 2.0 and • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
Intel® Turbo Boost Max Technology 3.0* • 1x USB 3.2 Gen 1 port (1 x USB Type-C®)
* Refer to www.asus.com for CPU support list. D
** Intel® Turbo Boost Max Technology 3.0 support depends -1 x 4-pin CPU Fan header
on the CPU types. -3 x 4-pin Chassis Fan header Display
Chipset • Intel® B560 Chipset • Power related
Memory • 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/ -1 x 24-pin Main Power connector
4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ -1 x 8-pin +12V Power connector
Internal I/O Connectors • Fan and cooling related isplay
3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz • Storage related
Non-ECC, Un-buffered memory* -2 x M.2 slot (Key M)
• Dual channel memory architecture -6 x SATA 6Gb/s ports
• Supports Intel® Extreme Memory Profile (XMP) • USB
• ASUS OptiMem -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
* 10 th Gen Intel® Core™ i7/i9 processors support 2933/ Gen 1 ports
2800/2666/2400/2133 MHz natively, others will run at the -2 x USB 2.0 headers support additional 4 USB 2.0 ports
maximum transfer rate of DDR4 2666MHz. • Miscellaneous Networks
* 11 th Gen Intel® processors support 2933/2800/2666/ -2 x AURA Addressable Gen 2 headers
2400/2133 natively. -2 x AURA RGB headers
* Refer to www.asus.com for the Memory QVL (Qualified -1 x Clear MOS jumper
Vendors Lists), and memory frequency support depends -1 x COM Port header
Networks
on the CPU types. -1 x Front Panel Audio header (AAFP)
Graphics • 1 x DP1.4** -1 x S/PDIF out header
• 1 x HDMI™ 1.4/2.0*** -1 x 20-3pin System Panel header with Chassis intrude function
• 1 x D-Sub
*Graphics specifications may vary between CPU types. -1 x Thunderbolt 4 header
** For Intel® 11 th & 10 th processors, support DisplayPort 1.4 -1 x M.2 Socket (Key E)
with max. resolution of 4096 x 2304 @60Hz. Please refer ASUS Special Features • ASUS 5X PROTECTION III
to www.intel.com for any update. - ASUS DIGI+ VRM
***Only Intel® 11 th processors support HDMI™ 2.0 - ASUS LANGuard
with max. resolution of 4K@60Hz, others will only support - ASUS Overvoltage Protection
HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer - ASUS SafeSlot Core+ ODD & Storage
to www.intel.com for any updates. - ASUS Stainless-Steel Back I/O
Expansion Slots • Intel® 11 th &10 th Gen Processors • ASUS Q-Design
-1 x PCIe 4.0/3.0 x16 slot* - ASUS Q-DIMM
- Intel®11 th processors support PCIe 4.0 x16 - ASUS Q-Slot
- Intel®10 th processors support PCIe 3.0 x16 • ASUS Thermal Solution:
• Intel® B560 Chipset - Flexible M.2 heatsink
-1 x SPI TPM header (14-1 pin) ODD & Storage
-1 x PCIe 3.0 x16 slot (supports x4 mode)* - VRM heatsink design
-2 x PCIe 3.0 x1 slots • ASUS EZ DIY
*Enable RST PCIe Storage Remapping for PCH attached PCIe - Box Headers
slots to activate Intel® Optane Memory. • AURA SYNC
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports - AURA RGB headers
• Intel® 11 th Gen Processors - Addressable Gen 2 RGB headers
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports Software Features <ASUS Exclusive Software>
PCIE 4.0 x 4 ) • Armoury Crate
- Only Intel® 11 th processors support PCIe 4.0 x4 - AURA Creator
mode, this slot will be disabled for other CPUs -AURA Sync
• Intel® B560 Chipset • AI Suite 3
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports -Performance And Power Saving Utility Server & Workstation
PCIE 3.0 x 4 & SATA mode mode) AI Charger , Turbo EVO , EPU , Digi+ VRM , Fan Xpert 2+
- 6 x SATA 6Gb/s ports -EZ Update
* When a device in SATA mode is installed on the M.2_2 • ASUS CPU-Z
socket, SATA6G_2 port cannot be used. • DAEMON Tools
* When an Intel® SSD is connected to a CPU-attached slot, • Norton Anti-virus software (Free Trial for 60 days)
only pass-through Single Volume mode in Intel® Rapid • WinRAR
Storage Technology will be available. <UEFI BIOS>
Server & Workstation

Ethernet • Intel® I219-V ASUS LANGuard • ASUS EZ DIY

Wireless & Bluetooth • M.2 slot only(Key E,CNVi & PCIe)* - ASUS CrashFree BIOS 3
(Wi-Fi module is sold separately) - ASUS EZ Flash 3
USB • Rear USB (Total 7 ports)
-2 x USB 3.2 Gen 2 ports (2 x Type-A) BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
-1x USB 3.2 Gen 1 port (1 x USB Type-C®) Manageability • WOL by PME, PXE
-4 x USB 2.0 ports Accessories • Cables
• Front USB (Total 6 ports) -2 x SATA 6Gb/s cables
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • Miscellaneous Mini / Stick PC
Gen 1 ports -1 x M.2 Rubber Package
-2 x USB 2.0 headers support additional 4 USB 2.0 ports -1 x IO Shield
Audio • Realtek ALC897 7.1-Channel High Definition Audio CODEC* -1 x M.2 SSD screw package
- Jack-detection, Multi-streaming, Front Panel Jack-retasking -1 x M.2 Key E screw package
- Supports up to 24-Bit/192kHz playback • Installation Media
• Audio Features -1 x Supporting DVD
- ASUS UEFI BIOS EZ ModeMini / Stick PC
- Audio Shielding • Documentation
- Premium Japanese audio capacitors -1 x User’s manual
- Dedicated audio PCB layers Operating System • Windows® 10 - 64 bit
*A chassis with an HD audio module in the front panel is Form Factor • ATX Form Factor
required to support 7.1-channel audio output. • 12.0 inch x 9.2 inch (30.5 cm x 23.4cm)
Back Panel I/O Ports • 1 x DP port
• 1 x HDMI port Note: The specifications are subject to changes without notice.
• 1 x D-Sub port Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
