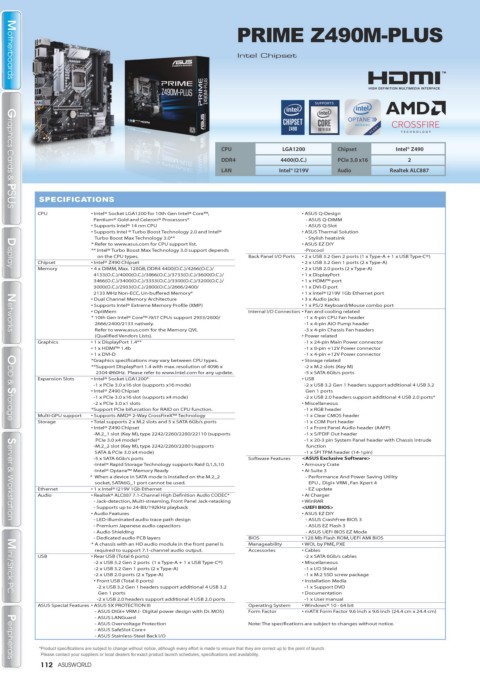

Page 114 - ASUS_WORLD_134_ebook

PRIME Z490M-PLUS

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® Z490
DDR4 4400(O.C.) PCIe 3.0 x16 2

LAN Intel® I219V Audio Realtek ALC887

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10th Gen Intel® Core™, • ASUS Q-Design
Pentium® Gold and Celeron® Processors* - ASUS Q-DIMM
• Supports Intel® 14 nm CPU - ASUS Q-Slot
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® • ASUS Thermal Solution
Turbo Boost Max Technology 3.0** - Stylish heatsink
* Refer to www.asus.com for CPU support list. • ASUS EZ DIY
** Intel® Turbo Boost Max Technology 3.0 support depends -Procool
on the CPU types. Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
Chipset • Intel® Z490 Chipset • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
Memory • 4 x DIMM, Max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/ • 2 x USB 2.0 ports (2 x Type-A)
Display
Display
4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ • 1 x DisplayPort
3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/ • 1 x HDMI™ port
3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/ • 1 x DVI-D port
2133 MHz Non-ECC, Un-buffered Memory* • 1 x Intel® I219V 1Gb Ethernet port
• Dual Channel Memory Architecture • 3 x Audio jacks
• Supports Intel® Extreme Memory Profile (XMP) • 1 x PS/2 Keyboard/Mouse combo port
• OptiMem Internal I/O Connectors • Fan and cooling related
* 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/ -1 x 4-pin CPU Fan header
2666/2400/2133 natively. -1 x 4-pin AIO Pump header
Refer to www.asus.com for the Memory QVL -3 x 4-pin Chassis Fan headers
Networks
Networks
(Qualified Vendors Lists). • Power related
Graphics • 1 x DisplayPort 1.4** -1 x 24-pin Main Power connector
• 1 x HDMI™ 1.4b -1 x 8-pin +12V Power connector
-1 x 4-pin +12V Power connector
*Graphics specifications may vary between CPU types. • Storage related
**Support DisplayPort 1.4 with max. resolution of 4096 x -2 x M.2 slots (Key M)
2304 @60Hz. Please refer to www.intel.com for any update. -5 x SATA 6Gb/s ports
Expansion Slots • Intel® Socket LGA1200* • USB
-1 x PCIe 3.0 x16 slot (supports x16 mode) -2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2
• Intel® Z490 Chipset Gen 1 ports
-1 x PCIe 3.0 x16 slot (supports x4 mode) -2 x USB 2.0 headers support additional 4 USB 2.0 ports*
-2 x PCIe 3.0 x1 slots • Miscellaneous
*Support PCIe bifurcation for RAID on CPU function. -1 x RGB header
Multi-GPU support • Supports AMD® 2-Way CrossFireX™ Technology -1 x Clear CMOS header

Storage • Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports -1 x COM Port header
ODD & Storage
• 1 x DVI-D ODD & Storage
• Intel® Z490 Chipset -1 x Front Panel Audio header (AAFP)
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -1 x S/PDIF Out header
PCIe 3.0 x4 mode)* -1 x 20-3 pin System Panel header with Chassis intrude
-M.2_2 slot (Key M), type 2242/2260/2280 (supports function
SATA & PCIe 3.0 x4 mode) -1 x SPI TPM header (14-1pin)
-5 x SATA 6Gb/s ports Software Features <ASUS Exclusive Software>
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 • Armoury Crate
-Intel® Optane™ Memory Ready • AI Suite 3
* When a device in SATA mode is installed on the M.2_2 - Performance And Power Saving Utility
socket, SATA6G_1 port cannot be used. EPU , Digi+ VRM , Fan Xpert 4
Ethernet • 1 x Intel® I219V 1Gb Ethernet - EZ update
Audio • Realtek® ALC887 7.1-Channel High Definition Audio CODEC* • AI Charger
- Jack-detection, Multi-streaming, Front Panel Jack-retasking • WinRAR
- Supports up to 24-Bit/192kHz playback <UEFI BIOS>
• Audio Features • ASUS EZ DIY
- LED-illuminated audio trace path design - ASUS CrashFree BIOS 3
Server & Workstation
Server & Workstation
- Premium Japanese audio capacitors - ASUS EZ Flash 3
- Audio Shielding - ASUS UEFI BIOS EZ Mode
- Dedicated audio PCB layers BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
* A chassis with an HD audio module in the front panel is Manageability • WOL by PME, PXE
required to support 7.1-channel audio output. Accessories • Cables
USB • Rear USB (Total 6 ports) -2 x SATA 6Gb/s cables
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) • Miscellaneous
-2 x USB 3.2 Gen 1 ports (2 x Type-A) -1 x I/O Shield
-2 x USB 2.0 ports (2 x Type-A) -1 x M.2 SSD screw package
• Front USB (Total 8 ports) • Installation Media
-2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 -1 x Support DVD
Gen 1 ports • Documentation
Mini / Stick PC
Mini / Stick PC
-2 x USB 2.0 headers support additional 4 USB 2.0 ports -1 x User manual
ASUS Special Features • ASUS 5X PROTECTION III Operating System • Windows® 10 - 64 bit
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) Form Factor • mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- ASUS LANGuard
- ASUS Overvoltage Protection Note: The specifications are subject to changes without notice.
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
