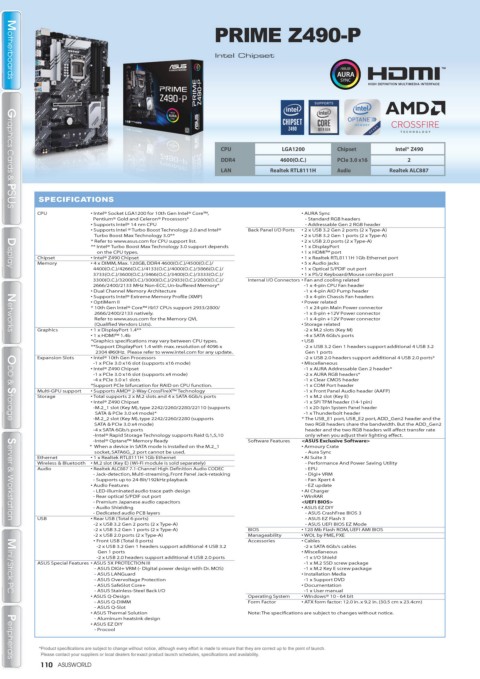

Page 112 - ASUS_WORLD_134_ebook

PRIME Z490-P

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® Z490
DDR4 4600(O.C.) PCIe 3.0 x16 2

LAN Realtek RTL8111H Audio Realtek ALC887

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10th Gen Intel® Core™, • AURA Sync
Pentium® Gold and Celeron® Processors* - Standard RGB headers
• Supports Intel® 14 nm CPU - Addressable Gen 2 RGB header
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
Turbo Boost Max Technology 3.0** • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
* Refer to www.asus.com for CPU support list. • 2 x USB 2.0 ports (2 x Type-A)
** Intel® Turbo Boost Max Technology 3.0 support depends • 1 x DisplayPort
on the CPU types. • 1 x HDMI™ port
Chipset • Intel® Z490 Chipset • 1 x Realtek RTL8111H 1Gb Ethernet port
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4500(O.C.)/ • 5 x Audio jacks
4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ • 1 x Optical S/PDIF out port
Display
Display
3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ • 1 x PS/2 Keyboard/Mouse combo port
3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ Internal I/O Connectors • Fan and cooling related
2666/2400/2133 MHz Non-ECC, Un-buffered Memory* -1 x 4-pin CPU Fan header
• Dual Channel Memory Architecture -1 x 4-pin AIO Pump header
• Supports Intel® Extreme Memory Profile (XMP) -3 x 4-pin Chassis Fan headers
• OptiMem II • Power related
* 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/ -1 x 24-pin Main Power connector
2666/2400/2133 natively. -1 x 8-pin +12V Power connector
Refer to www.asus.com for the Memory QVL -1 x 4-pin +12V Power connector
(Qualified Vendors Lists). • Storage related
Graphics • 1 x DisplayPort 1.4** -2 x M.2 slots (Key M)
Networks
Networks
• 1 x HDMI™ 1.4b -4 x SATA 6Gb/s ports
*Graphics specifications may vary between CPU types. • USB
**Support DisplayPort 1.4 with max. resolution of 4096 x -2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2
2304 @60Hz. Please refer to www.intel.com for any update. Gen 1 ports
Expansion Slots • Intel® 10th Gen Processors -2 x USB 2.0 headers support additional 4 USB 2.0 ports*
-1 x PCIe 3.0 x16 slot (supports x16 mode) • Miscellaneous
• Intel® Z490 Chipset -1 x AURA Addressable Gen 2 header*
-1 x PCIe 3.0 x16 slot (supports x4 mode) -2 x AURA RGB headers*
-4 x PCIe 3.0 x1 slots -1 x Clear CMOS header
*Support PCIe bifurcation for RAID on CPU function. -1 x COM Port header
Multi-GPU support • Supports AMD® 2-Way CrossFireX™ Technology -1 x Front Panel Audio header (AAFP)

Storage • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports -1 x M.2 slot (Key E)
• Intel® Z490 Chipset -1 x SPI TPM header (14-1pin)
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -1 x 20-3pin System Panel header
SATA & PCIe 3.0 x4 mode)* -1 x Thunderbolt header
-M.2_2 slot (Key M), type 2242/2260/2280 (supports * The USB_E1 port, USB_E2 port, ADD_Gen2 header and the
ODD & Storage
ODD & Storage
SATA & PCIe 3.0 x4 mode) two RGB headers share the bandwidth. But the ADD_Gen2
-4 x SATA 6Gb/s ports header and the two RGB headers will affect transfer rate
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 only when you adjust their lighting effect.
-Intel® Optane™ Memory Ready Software Features <ASUS Exclusive Software>
* When a device in SATA mode is installed on the M.2_1 • Armoury Crate
socket, SATA6G_2 port cannot be used. - Aura Sync
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • AI Suite 3
Wireless & Bluetooth • M.2 slot (Key E) (Wi-Fi module is sold separately) - Performance And Power Saving Utility
Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC - EPU
- Jack-detection, Multi-streaming, Front Panel Jack-retasking - Digi+ VRM
- Supports up to 24-Bit/192kHz playback - Fan Xpert 4
• Audio Features - EZ update
- LED-illuminated audio trace path design • AI Charger
- Rear optical S/PDIF out port • WinRAR
- Premium Japanese audio capacitors <UEFI BIOS>
- Audio Shielding • ASUS EZ DIY
- Dedicated audio PCB layers - ASUS CrashFree BIOS 3
USB • Rear USB (Total 6 ports) - ASUS EZ Flash 3
Server & Workstation
Server & Workstation
-2 x USB 3.2 Gen 2 ports (2 x Type-A) - ASUS UEFI BIOS EZ Mode
-2 x USB 3.2 Gen 1 ports (2 x Type-A) BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
-2 x USB 2.0 ports (2 x Type-A) Manageability • WOL by PME, PXE
• Front USB (Total 8 ports) Accessories • Cables
-2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 -2 x SATA 6Gb/s cables
Gen 1 ports • Miscellaneous
-2 x USB 2.0 headers support additional 4 USB 2.0 ports -1 x I/O Shield
ASUS Special Features • ASUS 5X PROTECTION III -1 x M.2 SSD screw package
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) -1 x M.2 Key E screw package
- ASUS LANGuard • Installation Media
- ASUS Overvoltage Protection -1 x Support DVD
- ASUS SafeSlot Core+ • Documentation
- ASUS Stainless-Steel Back I/O -1 x User manual
Mini / Stick PC
Mini / Stick PC
• ASUS Q-Design Operating System • Windows® 10 - 64 bit
- ASUS Q-DIMM Form Factor • ATX form factor: 12.0 in. x 9.2 in. (30.5 cm x 23.4cm)
- ASUS Q-Slot
• ASUS Thermal Solution Note: The specifications are subject to changes without notice.
- Aluminum heatsink design
• ASUS EZ DIY
- Procool
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
