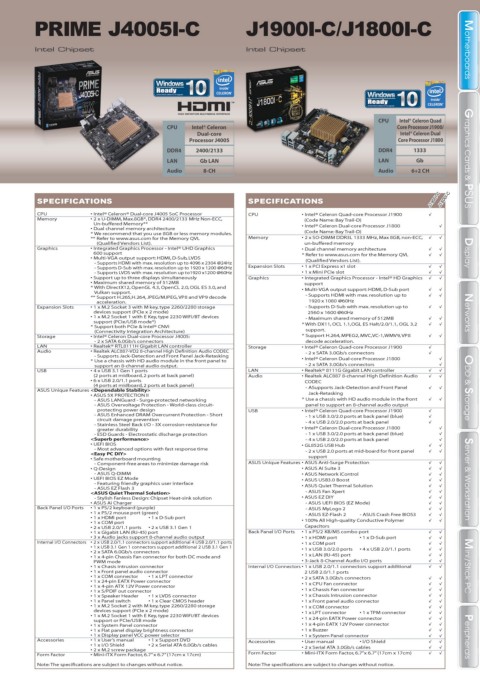

Page 107 - ASUS_WORLD_134_ebook

PRIME J4005I-C J1900I-C/J1800I-C

Intel Chipset Intel Chipset Motherboards Motherboards

CPU Intel® Celeron Quad
CPU Intel® Celeron Core Processor J1900/
Dual-core Intel® Celeron Dual
Processor J4005 Core Processor J1800
DDR4 2400/2133 DDR4 1333
LAN Gb LAN Graphics Cards & PSUS LAN Gb Graphics Cards & PSUS
Audio 8-CH Audio 6+2 CH

J1900I-C
SPECIFICATIONS SPECIFICATIONS J1800I-C

CPU • Intel® Celeron® Dual-core J4005 SoC Processor CPU • Intel® Celeron Quad-core Processor J1900

Memory • 2 x U-DIMM, Max.8GB*, DDR4 2400/2133 MHz Non-ECC, (Code Name: Bay Trail-D)
Un-buffered Memory** • Intel® Celeron Dual-core Processor J1800
• Dual channel memory architecture (Code Name: Bay Trail-D)
* We recommend that you use 8GB or less memory modules.

** Refer to www.asus.com for the Memory QVL Memory • 2 x SO-DIMM DDR3L 1333 MHz, Max 8GB, non-ECC,

(Qualified Vendors List). un-buffered memory
Graphics • Integrated Graphics Processor - Intel® UHD Graphics • Dual channel memory architecture

600 support * Refer to www.asus.com for the Memory QVL Display
• Multi-VGA output support: HDMI, D-Sub, LVDS (Qualified Vendors List).

- Supports HDMI with max. resolution up to 4096 x 2304 @24Hz

- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz Expansion Slots • 1 x PCI Express x1 slot

Display

- Supports LVDS with max. resolution up to1920 x1200 @60Hz • 1 x Mini PCIe slot

• Support up to three displays simultaneously Graphics • Integrated Graphics Processor - Intel® HD Graphics
• Maximum shared memory of 512MB support
* With DirectX12, OpenGL 4.3, OpenCL 2.0, OGL ES 3.0, and • Multi-VGA output support: HDMI, D-Sub port

Vulkan support.
** Support H.265,H.264, JPEG/MJPEG, VP8 and VP9 decode - Supports HDMI with max. resolution up to

acceleration. 1920 x 1080 @60Hz
Expansion Slots • 1 x M.2 Socket 3 with M key, type 2260/2280 storage - Supports D-Sub with max. resolution up to

devices support (PCIe x 2 mode) 2560 x 1600 @60Hz Networks Networks

• 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices - Maximum shared memory of 512MB
support (PCIe/USB mode*)

* Support both PCIe & Intel® CNVi * With DX11, OCL 1.1,OGL ES Halt/2.0/1.1, OGL 3.2
(Connectivity Integration Architecture) support.
Storage • Intel® Celeron Dual-core Processor J4005: * Support H.264, MPEG2, MVC,VC-1,WMV9, VP8

- 2 x SATA 6.0Gb/s connectors decode acceleration.
LAN • Realtek® RTL8111H Gigabit LAN controller Storage • Intel® Celeron Quad-core Processor J1900
Audio • Realtek ALC887-VD2 8-channel High Definition Audio CODEC
- Supports Jack-Detection and Front Panel Jack-Retasking • Intel® Celeron Dual-core Processor J1800

* Use a chassis with HD audio module in the front panel to

support an 8-channel audio output. - 2 x SATA 3.0Gb/s connectors
USB • 4 x USB 3.1 Gen 1 ports LAN • Realtek® 8111G Gigabit LAN controller
(2 ports at midboard, 2 ports at back panel) Audio • Realtek ALC887 8-channel High Definition Audio
• 6 x USB 2.0/1.1 ports CODEC
(4 ports at midboard, 2 ports at back panel)

ASUS Unique Features <Dependable Stability> - ASupports Jack-Detection and Front Panel ODD & Storage
• ASUS 5X PROTECTION II Jack-Retasking

- ASUS LANGuard - Surge-protected networking * Use a chassis with HD audio module in the front

- ASUS Overvoltage Protection - World-class circuit- panel to support an 8-channel audio output
protecting power design USB • Intel® Celeron Quad-core Processor J1900
- ASUS Enhanced DRAM Overcurrent Protection - Short - 1 x USB 3.0/2.0 ports at back panel (blue)

circuit damage prevention
- 2 x SATA 3.0Gb/s connectors ODD & Storage

- Stainless Steel Back I/O - 3X corrosion-resistance for - 4 x USB 2.0/2.0 ports at back panel
greater durability • Intel® Celeron Dual-core Processor J1800
- ESD Guards - Electrostatic discharge protection - 1 x USB 3.0/2.0 ports at back panel (blue)

<Superb performance> - 4 x USB 2.0/2.0 ports at back panel
• UEFI BIOS • GL852G USB Hub

- Most advanced options with fast response time - 2 x USB 2.0 ports at mid-board for front panel

<Easy PC DIY>
• Safe motherboard mounting support

- Component-free areas to minimize damage risk ASUS Unique Features • ASUS Anti-Surge Protection

• Q-Design • ASUS AI Suite 3

- ASUS Q-DIMM • ASUS Network iControl
• UEFI BIOS EZ Mode • ASUS USB3.0 Boost Server & Workstation Server & Workstation

- Featuring friendly graphics user interface • ASUS Quiet Thermal Solution

- ASUS EZ Flash 3
<ASUS Quiet Thermal Solution> - ASUS Fan Xpert

- Stylish Fanless Design: Chipset Heat-sink solution • ASUS EZ DIY
• ASUS Ai Charger - ASUS UEFI BIOS (EZ Mode)
Back Panel I/O Ports • 1 x PS/2 keyboard (purple) - ASUS MyLogo 2
• 1 x PS/2 mouse port (green) - ASUS EZ-Flash 2 - ASUS Crash Free BIOS3
• 1 x HDMI port • 1 x D-Sub port
• 1 x COM port • 100% All High-quality Conductive Polymer
• 2 x USB 2.0/1.1 ports • 2 x USB 3.1 Gen 1 Capacitors
• 1 x Gigabit LAN (RJ-45) port Back Panel I/O Ports • 1 x PS/2 KB/MS combo port
• 3 x Audio jacks support 8-channel audio output • 1 x HDMI port • 1 x D-Sub port
Internal I/O Connectors • 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports • 1 x COM port
• 1 x USB 3.1 Gen 1 connectors support additional 2 USB 3.1 Gen 1 • 1 x USB 3.0/2.0 ports • 4 x USB 2.0/1.1 ports

• 2 x SATA 6.0Gb/s connectors

• 1 x 4-pin Chassis Fan connector for both DC mode and • 1 x LAN (RJ-45) port
PWM mode • 3-Jack 8-Channel Audio I/O ports

• 1 x Chasis intrusion connector Internal I/O Connectors • 1 x USB 2.0/1.1 connectors support additional Mini / Stick PC

• 1 x Front panel audio connector 2 USB 2.0/1.1 ports

• 1 x COM connector • 1 x LPT connector • 2 x SATA 3.0Gb/s connectors

• 1 x 24-pin EATX Power connector • 1 x CPU Fan connector
• 1 x 4-pin ATX 12V Power connector

• 1 x S/PDIF out connector • 1 x Chassis Fan connector

Mini / Stick PC
• 1 x Speaker Header • 1 x LVDS connector • 1 x Chassis Intrusion connector

• 1 x Panel switch • 1 x Clear CMOS header • 1 x Front panel audio connector

• 1 x M.2 Socket 2 with M key, type 2260/2280 storage • 1 x COM connector

devices support (PCIe x 2 mode) • 1 x LPT connector • 1 x TPM connector

• 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices • 1 x 24-pin EATX Power connector

support or PCIe/USB mode
• 1 x System Panel connector • 1 x 4-pin EATX 12V Power connector

• 1 x Flat panel display brightness connector • 1 x Buzzer

• 1 x Display panel VCC power selector • 1 x System Panel connector Peripherals
Accessories • 1 x User’s manual • 1 x Support DVD Accessories • User manual • I/O Shield
• 1 x I/O Shield • 2 x Serial ATA 6.0Gb/s cables • 2 x Serial ATA 3.0Gb/s cables
• 2 x M.2 screw package
Form Factor • Mini-ITX Form Factor, 6.7” x 6.7” (17cm x 17cm) Form Factor • Mini-ITX Form Factor, 6.7”x 6.7” (17cm x 17cm)
Peripherals
Note: The specifications are subject to changes without notice. Note: The specifications are subject to changes without notice.
