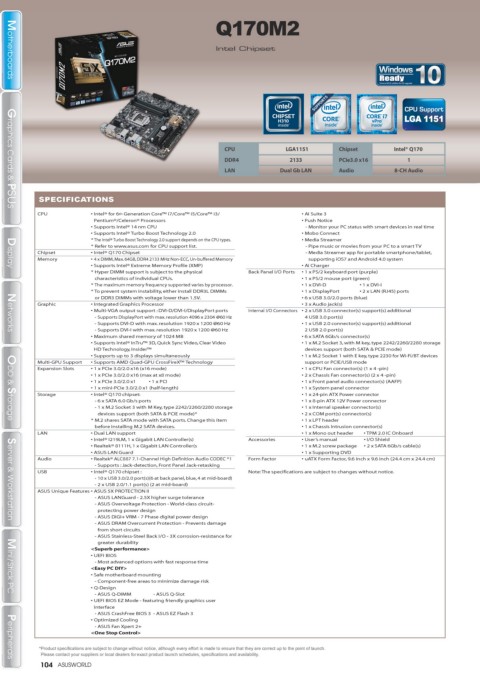

Q170M2

Intel Chipset

Motherboards
Motherboards

CPU LGA1151 Chipset Intel® Q170
DDR4 2133 PCIe3.0 x16 1
LAN Dual Gb LAN Audio 8-CH Audio

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® for 6th Generation Core™ i7/Core™ i5/Core™ i3/ • AI Suite 3
Pentium®/Celeron® Processors • Push Notice

• Supports Intel® 14 nm CPU - Monitor your PC status with smart devices in real time
• Supports Intel® Turbo Boost Technology 2.0 • Mobo Connect
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. • Media Streamer

* Refer to www.asus.com for CPU support list. - Pipe music or movies from your PC to a smart TV

Chipset • Intel® Q170 Chipset - Media Streamer app for portable smartphone/tablet,

Memory • 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory supporting iOS7 and Android 4.0 system
• Supports Intel® Extreme Memory Profile (XMP) • Ai Charger
Display
Display
* Hyper DIMM support is subject to the physical Back Panel I/O Ports • 1 x PS/2 keyboard port (purple)
characteristics of individual CPUs. • 1 x PS/2 mouse port (green)
* The maximum memory frequency supported varies by processor. • 1 x DVI-D • 1 x DVI-I
* To prevent system instability, either install DDR3L DIMMs • 1 x DisplayPort • 2 x LAN (RJ45) ports
or DDR3 DIMMs with voltage lower than 1.5V. • 6 x USB 3.0/2.0 ports (blue)
Graphic • Integrated Graphics Processor • 3 x Audio jack(s)
• Multi-VGA output support : DVI-D/DVI-I/DisplayPort ports Internal I/O Connectors • 2 x USB 3.0 connector(s) support(s) additional
- Supports DisplayPort with max. resolution 4096 x 2304 @60 Hz 4 USB 3.0 port(s)
- Supports DVI-D with max. resolution 1920 x 1200 @60 Hz • 1 x USB 2.0 connector(s) support(s) additional
- Supports DVI-I with max. resolution 1920 x 1200 @60 Hz 2 USB 2.0 port(s)
Networks
Networks
• Maximum shared memory of 1024 MB • 6 x SATA 6Gb/s connector(s)

• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage
HD Technology, Insider™ devices support (both SATA & PCIE mode)
• Supports up to 3 displays simultaneously • 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices
Multi-GPU Support • Supports AMD Quad-GPU CrossFireX™ Technology support or PCIE/USB mode
Expansion Slots • 1 x PCIe 3.0/2.0 x16 (x16 mode) • 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x PCIe 3.0/2.0 x16 (max at x8 mode) • 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x PCIe 3.0/2.0 x1 • 1 x PCI • 1 x Front panel audio connector(s) (AAFP)
• 1 x mini-PCIe 3.0/2.0 x1 (half-length) • 1 x System panel connector
Storage • Intel® Q170 chipset: • 1 x 24-pin ATX Power connector
- 6 x SATA 6.0 Gb/s ports • 1 x 8-pin ATX 12V Power connector
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage • 1 x Internal speaker connector(s)

devices support (both SATA & PCIE mode)* • 2 x COM port(s) connector(s)
* M.2 shares SATA mode with SATA ports. Change this item • 1 x LPT header
ODD & Storage
ODD & Storage
before installing M.2 SATA devices. • 1 x Chassis Intrusion connector(s)
LAN • Dual LAN support • 1 x Mono out header • TPM 2.0 IC Onboard
• Intel® I219LM, 1 x Gigabit LAN Controller(s) Accessories • User’s manual • I/O Shield
• Realtek® 8111H, 1 x Gigabit LAN Controller(s • 1 x M.2 screw package • 2 x SATA 6Gb/s cable(s)
• ASUS LAN Guard • 1 x Supporting DVD
Audio • Realtek® ALC887 7.1-Channel High Definition Audio CODEC *1 Form Factor • uATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Supports : Jack-detection, Front Panel Jack-retasking
USB • Intel® Q170 chipset : Note: The specifications are subject to changes without notice.
- 10 x USB 3.0/2.0 port(s)(6 at back panel, blue, 4 at mid-board)

- 2 x USB 2.0/1.1 port(s) (2 at mid-board)
ASUS Unique Features • ASUS 5X PROTECTION II

- ASUS LANGuard - 2.5X higher surge tolerance

- ASUS Overvoltage Protection - World-class circuit-
protecting power design

- ASUS DIGI+ VRM - 7 Phase digital power design
Server & Workstation
Server & Workstation

- ASUS DRAM Overcurrent Protection - Prevents damage
from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for

greater durability
<Superb performance>
• UEFI BIOS

- Most advanced options with fast response time

<Easy PC DIY>
• Safe motherboard mounting
- Component-free areas to minimize damage risk

• Q-Design

- ASUS Q-DIMM - ASUS Q-Slot
Mini / Stick PC
Mini / Stick PC
• UEFI BIOS EZ Mode - featuring friendly graphics user
interface
- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3

• Optimized Cooling
- ASUS Fan Xpert 2+

<One Stop Control>
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
