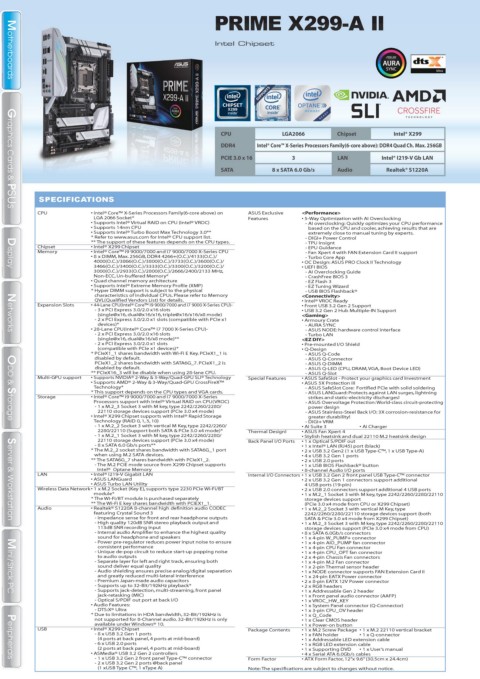

PRIME X299-A II

Intel Chipset

Motherboards
Motherboards

CPU LGA2066 Chipset Intel® X299
DDR4 Intel® Core™ X-Series Processors Family(6-core above): DDR4 Quad Ch. Max. 256GB
PCIE 3.0 x 16 3 LAN Intel® I219-V Gb LAN
SATA 8 x SATA 6.0 Gb/s Audio Realtek® S1220A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Core™ X-Series Processors Family(6-core above) on ASUS Exclusive <Performance>
LGA 2066 Socket* Features • 5-Way Optimization with AI Overclocking
• Supports Intel® Virtual RAID on CPU (Intel® VROC) - AI overclocking: Quickly optimizes your CPU performance
• Supports 14nm CPU based on the CPU and cooler, achieving results that are
• Supports Intel® Turbo Boost Max Technology 3.0** extremely close to manual tuning by experts.
* Refer to www.asus.com for Intel® CPU support list. - DIGI+ Power Control
** The support of these features depends on the CPU types. - TPU Insignt
Chipset • Intel® X299 Chipset - EPU Guidance

Memory • Intel® Core™ i9 9000/7000 and i7 9000/7000 X-Series CPU - Fan Xpert 4 with FAN Extension Card II support

• 8 x DIMM, Max. 256GB, DDR4 4266+(O.C.)/4133(O.C.)/ - Turbo Core App
4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/ • OC Design: ASUS PRO Clock II Technology
3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/ • UEFI BIOS
Display
Display
3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, - AI Overclocking Guide
Non-ECC, Un-buffered Memory* - CrashFree BIOS 3
• Quad channel memory architecture - EZ Flash 3
• Supports Intel® Extreme Memory Profile (XMP) - EZ Tuning Wizard
* Hyper DIMM support is subject to the physical - USB BIOS Flashback®
characteristics of individual CPUs. Please refer to Memory <Connectivity>
QVL(Qualified Vendors List) for details. • Intel® VROC Ready
Expansion Slots • 44-Lane CPU(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)- • Front USB 3.2 Gen 2 Support
- 3 x PCI Express 3.0/2.0 x16 slots • USB 3.2 Gen 2 Hub Multiple-IN Support
(single@x16, dual@x16/x16, triple@x16/x16/x8 mode) <Gaming>
- 2 x PCI Express 3.0/2.0 x1 slots (compatible with PCIe x1 • Armoury Crate
devices)* - AURA SYNC
• 28-Lane CPU(Intel® Core™ i7 7000 X-Series CPU)- - ASUS NODE: hardware control interface
- 2 x PCI Express 3.0/2.0 x16 slots - Turbo LAN
Networks
Networks
(single@x16, dual@x16/x8 mode)** <EZ DIY>
- 2 x PCI Express 3.0/2.0 x1 slots • Pre-mounted I/O Shield
(compatible with PCIe x1 devices)* • Q-Design
* PCIeX1_1 shares bandwidth with Wi-Fi E Key. PCIeX1_1 is - ASUS Q-Code
disabled by default. - ASUS Q-Connector
PCIeX1_2 shares bandwidth with SATA6G_7. PCIeX1_2 is - ASUS Q-DIMM
disabled by default. - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
** PCIeX16_3 will be disable when using 28-lane CPU. - ASUS Q-Slot
Multi-GPU support • Supports NVIDIA® 2-Way & 3-Way/Quad-GPU SLI® Technology Special Features • ASUS SafeSlot - Protect your graphics card Investment
• Supports AMD® 2-Way & 3-Way/Quad-GPU CrossFireX™ • ASUS 5X Protection III

Technology* - ASUS SafeSlot Core: Fortified PCIe with solid soldering
* This support depends on the CPU types and VGA cards. - ASUS LANGuard: Protects against LAN surges, lightning
Storage • Intel® Core™ i9 9000/7000 and i7 9000/7000 X-Series strikes and static-electricity discharges!

Processors support with Intel® Virtual RAID on CPU(VROC) - ASUS Overvoltage Protection: World-class circuit-protecting
- 1 x M.2_3 Socket 3 with M key, type 2242/2260/2280/ power design
22110 storage devices support (PCIe 3.0 x4 mode) - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
• Intel® X299 Chipset supports with Intel® Rapid Storage greater durability!
Technology (RAID 0, 1, 5, 10) - DIGI+ VRM
ODD & Storage
ODD & Storage
- 1 x M.2_2 Socket 3 with vertical M Key, type 2242/2260/ • AI Suite 3 • Ai Charger
2280/22110 (Support both SATA & PCIe 3.0 x4 mode)* Thermal Designl • ASUS Fan Xpert 4
- 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/ • Stylish heatsink and dual 22110 M.2 heatsink design
22110 storage devices support (PCIe 3.0 x4 mode) Back Panel I/O Ports • 1 x Optical S/PDIF out
- 8 x SATA 6.0 Gb/s ports** • 1 x Intel® LAN (RJ45) port (black)
* The M.2_2 socket shares bandwidth with SATA6G_1 port • 2 x USB 3.2 Gen2 (1 x USB Type-C™, 1 x USB Type-A)
when using M.2 SATA devices. • 4 x USB 3.2 Gen 1 ports
** The SATA6G_7 shares bandwidth with PCIeX1_2. • 2 x USB 2.0 ports
- The M.2 PCIE mode source from X299 Chipset supports • 1 x USB BIOS Flashback® button
Intel® Optane Memory • 8-channel Audio I/O ports
LAN • Intel® I219-V Gigabit LAN Internal I/O Connectors • 1 x USB 3.2 Gen 2 front panel USB Type-C™ connector
• ASUS LANGuard • 2 x USB 3.2 Gen 1 connectors support additional
• ASUS Turbo LAN Utility 4 USB ports (19-pin)

Wireless Data Network • 1 x M.2 Socket (Key E), supports type 2230 PCIe Wi-Fi/BT • 2 x USB 2.0 connectors support additional 4 USB ports
module* • 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/22110
* The Wi-Fi/BT module is purchased separately storage devices support
** The Wi-Fi E key shares bandwidth with PCIEX1_1. (PCIe 3.0 x4 mode from CPU or X299 Chipset)
Audio • Realtek® S1220A 8-channel high definition audio CODEC • 1 x M.2_2 Socket 3 with vertical M Key, type

featuring Crystal Sound 3 2242/2260/2280/22110 storage devices support (both
- Impedance sense for front and rear headphone outputs SATA & PCIe 3.0 x4 mode from X299 Chipset)
Server & Workstation
Server & Workstation
- High quality 120dB SNR stereo playback output and • 1 x M.2_3 Socket 3 with M key, type 2242/2260/2280/22110
113dB SNR recording input storage devices support (PCIe 3.0 x4 mode from CPU)
- Internal audio Amplifier to enhance the highest quality • 8 x SATA 6.0Gb/s connectors
sound for headphone and speakers • 1 x 4-pin W_PUMP+ connector
- Power pre-regulator reduces power input noise to ensure • 1 x 4-pin AIO_PUMP fan connector
consistent performance • 1 x 4-pin CPU Fan connector
- Unique de-pop circuit to reduce start-up popping noise • 1 x 4-pin CPU_OPT fan connector
to audio outputs • 2 x 4-pin Chassis Fan connectors
- Separate layer for left and right track, ensuring both • 1 x 4-pin M.2 Fan connector
sound deliver equal quality • 1 x 2-pin Thermal sensor header
- Audio shielding ensures precise analog/digital separation • 1 x NODE connector supports FAN Extension Card II
and greatly reduced multi-lateral interference • 1 x 24-pin EATX Power connector
- Premium Japan-made audio capacitors • 2 x 8-pin EATX 12V Power connector
- Supports up to 32-Bit/192kHz playback* • 2 x RGB headers
- Supports jack-detection, multi-streaming, front panel • 1 x Addressable Gen 2 header
Mini / Stick PC
jack-retasking (MIC) • 1 x Front panel audio connector (AAFP)
Mini / Stick PC
- Optical S/PDIF out port at back I/O • 1 x VROC_HW_KEY
• Audio Features: • 1 x System Panel connector (Q-Connector)
- DTS:X® Ultra • 1 x 3-pin CPU_OV header
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is • 1 x Q_Code
not supported for 8-Channel audio. 32-Bit/192kHz is only • 1 x Clear CMOS header
available under Windows® 10. • 1 x Power-on button
USB • Intel® X299 Chipset Package Contents • 1 x M.2 Screw Package • 1 x M.2 22110 vertical bracket
- 8 x USB 3.2 Gen 1 ports • 1 x FAN holder • 1 x Q-connector
(4 ports at back panel, 4 ports at mid-board) • 1 x Addressable LED extension cable
- 6 x USB 2.0 ports • 1 x RGB LED extension cable
(2 ports at back panel, 4 ports at mid-board) • 1 x Supporting DVD • 1 x User’s manual
• ASMedia® USB 3.2 Gen 2 controllers • 4 x Serial ATA 6.0Gb/s cables
- 1 x USB 3.2 Gen 2 front panel Type-C™ connector Form Factor • ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
Peripherals
Peripherals
- 2 x USB 3.2 Gen 2 ports @back panel
(1 xUSB Type C™, 1 xType A) Note: The specifications are subject to changes without notice.
