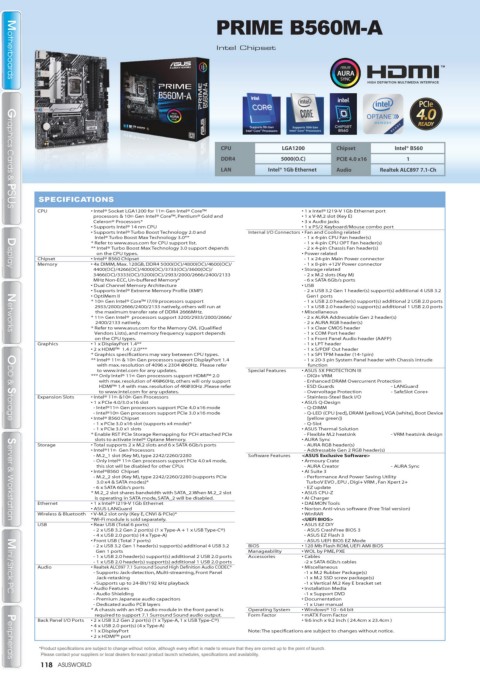

Page 120 - ASUS_WORLD_134_ebook

PRIME B560M-A

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel® B560
DDR4 5000(O.C) PCIE 4.0 x16 1

LAN Intel® 1Gb Ethernet Audio Realtek ALC897 7.1-Ch
SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 11th Gen Intel® Core™ • 1 x Intel® I219-V 1Gb Ethernet port
processors & 10th Gen Intel® Core™, Pentium® Gold and • 1 x V-M.2 slot (Key E)
Celeron® Processors* • 3 x Audio jacks
• Supports Intel® 14 nm CPU • 1 x PS/2 Keyboard/Mouse combo port
• Supports Intel® Turbo Boost Technology 2.0 and Internal I/O Connectors • Fan and Cooling related
Intel® Turbo Boost Max Technology 3.0** - 1 x 4-pin CPU Fan header(s)
* Refer to www.asus.com for CPU support list. - 1 x 4-pin CPU OPT Fan header(s)
** Intel® Turbo Boost Max Technology 3.0 support depends - 2 x 4-pin Chassis Fan header(s)
on the CPU types. • Power related
Chipset • Intel® B560 Chipset - 1 x 24-pin Main Power connector
Memory • 4x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/ - 1 x 8-pin +12V Power connector
4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ • Storage related
Display
Display
3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 - 2 x M.2 slots (Key M)
MHz Non-ECC, Un-buffered Memory* - 6 x SATA 6Gb/s ports
• Dual Channel Memory Architecture • USB
• Supports Intel® Extreme Memory Profile (XMP) - 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2
• OptiMem II Gen1 ports
* 10th Gen Intel® Core™ i7/i9 processors support - 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
2933/2800/2666/2400/2133 natively, others will run at - 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
the maximum transfer rate of DDR4 2666MHz. • Miscellaneous
* 11th Gen Intel® processors support 3200/2933/2800/2666/ - 2 x AURA Addressable Gen 2 header(s)
2400/2133 natively. - 2 x AURA RGB header(s)
* Refer to www.asus.com for the Memory QVL (Qualified - 1 x Clear CMOS header
Vendors Lists), and memory frequency support depends - 1 x COM Port header
Networks
Networks
on the CPU types. - 1 x Front Panel Audio header (AAFP)
Graphics • 1 x DisplayPort 1.4** - 1 x LPT header
• 2 x HDMI™ 1.4 / 2.0*** - 1 x S/PDIF Out header
* Graphics specifications may vary between CPU types. - 1 x SPI TPM header (14-1pin)
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 - 1 x 20-3 pin System Panel header with Chassis intrude
with max. resolution of 4096 x 2304 @60Hz. Please refer function
to www.intel.com for any updates. Special Features • ASUS 5X PROTECTION III
*** Only Intel® 11th Gen processors support HDMI™ 2.0 - DIGI+ VRM
with max. resolution of 4K@60Hz, others will only support - Enhanced DRAM Overcurrent Protection
HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer - ESD Guards - LANGuard
to www.intel.com for any updates. - Overvoltage Protection - SafeSlot Core+
Expansion Slots • Intel® 11th &10th Gen Processors - Stainless-Steel Back I/O
• 1 x PCIe 4.0/3.0 x16 slot • ASUS Q-Design
- Intel®11th Gen processors support PCIe 4.0 x16 mode - Q-DIMM
- Intel®10th Gen processors support PCIe 3.0 x16 mode - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device
• Intel® B560 Chipset [yellow green])
ODD & Storage
ODD & Storage
- 1 x PCIe 3.0 x16 slot (supports x4 mode)* - Q-Slot
- 1 x PCIe 3.0 x1 slots • ASUS Thermal Solution
* Enable RST PCIe Storage Remapping for PCH attached PCIe - Flexible M.2 heatsink - VRM heatsink design
slots to activate Intel® Optane Memory. • AURA Sync
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports - AURA RGB header(s)
• Intel®11th Gen Processors - Addressable Gen 2 RGB header(s)
- M.2_1 slot (Key M), type 2242/2260/2280 Software Features <ASUS Exclusive Software>
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, • Armoury Crate
this slot will be disabled for other CPUs - AURA Creator - AURA Sync
• Intel®B560 Chipset • AI Suite 3
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe - Performance And Power Saving Utility
3.0 x4 & SATA modes)* TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
- 6 x SATA 6Gb/s ports - EZ update
* M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot • ASUS CPU-Z
is operating in SATA mode, SATA_2 will be disabled. • AI Charger
Ethernet • 1 x Intel® I219-V 1Gb Ethernet • DAEMON Tools
• ASUS LANGuard • Norton Anti-virus software (Free Trial version)
Wireless & Bluetooth • V-M.2 slot only (Key E, CNVi & PCIe)* • WinRAR
*Wi-Fi module is sold separately. <UEFI BIOS>
Server & Workstation
Server & Workstation
USB • Rear USB (Total 6 ports) • ASUS EZ DIY
- 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) - ASUS CrashFree BIOS 3
- 4 x USB 2.0 port(s) (4 x Type-A) - ASUS EZ Flash 3
• Front USB (Total 7 ports) - ASUS UEFI BIOS EZ Mode
- 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
Gen 1 ports Manageability • WOL by PME, PXE
- 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Accessories • Cables
- 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports -2 x SATA 6Gb/s cables
Audio • Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* • Miscellaneous
- Supports: Jack-detection, Multi-streaming, Front Panel -1 x M.2 Rubber Package(s)
Jack-retasking -1 x M.2 SSD screw package(s)
- Supports up to 24-Bit/192 kHz playback -1 x Vertical M.2 Key E bracket set
• Audio Features • Installation Media
- Audio Shielding -1 x Support DVD
Mini / Stick PC
Mini / Stick PC
- Premium Japanese audio capacitors • Documentation
- Dedicated audio PCB layers -1 x User manual
* A chassis with an HD audio module in the front panel is Operating System • Windows® 10 - 64 bit
required to support 7.1 Surround Sound audio output. Form Factor • mATX Form Factor
Back Panel I/O Ports • 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) • 9.6 inch x 9.2 inch ( 24.4cm x 23.4cm )
• 4 x USB 2.0 port(s) (4 x Type-A)
• 1 x DisplayPort Note: The specifications are subject to changes without notice.
• 2 x HDMI™ port
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
