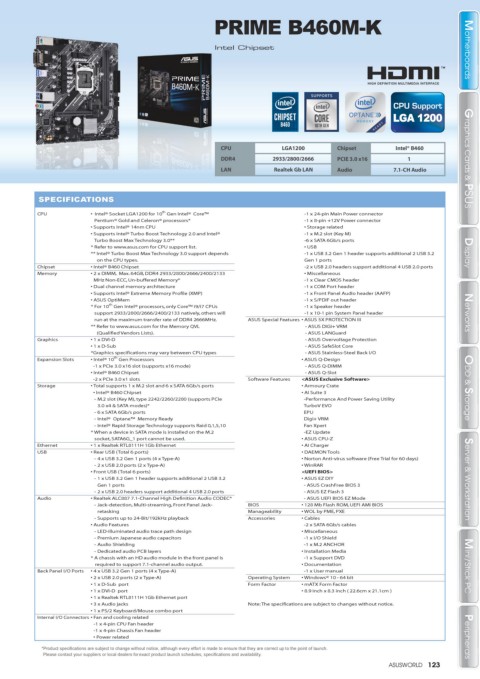

Page 125 - ASUS_WORLD_134_ebook

PRIME B460M-K

Intel Chipset Motherboards Motherboards

CPU LGA1200 Chipset Intel® B460
DDR4 2933/2800/2666 PCIE 3.0 x16 1 Graphics Cards & PSUS

LAN Realtek Gb LAN Audio 7.1-CH Audio
SPECIFICATIONS
Graphics Cards & PSUS
th
CPU • Intel® Socket LGA1200 for 10 Gen Intel® Core™ -1 x 24-pin Main Power connector
Pentium® Gold and Celeron® processors* -1 x 8-pin +12V Power connector
• Supports Intel® 14nm CPU • Storage related
• Supports Intel® Turbo Boost Technology 2.0 and Intel® -1 x M.2 slot (Key M)
Turbo Boost Max Technology 3.0** -6 x SATA 6Gb/s ports
* Refer to www.asus.com for CPU support list. • USB
** Intel® Turbo Boost Max Technology 3.0 support depends -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Display
on the CPU types. Gen 1 ports
Chipset • Intel® B460 Chipset -2 x USB 2.0 headers support additional 4 USB 2.0 ports
Display
Memory • 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 • Miscellaneous
MHz Non-ECC, Un-buffered Memory* -1 x Clear CMOS header
• Dual channel memory architecture -1 x COM Port header
• Supports Intel® Extreme Memory Profile (XMP) -1 x Front Panel Audio header (AAFP)
• ASUS OptiMem -1 x S/PDIF out header
th
* For 10 Gen Intel® processors, only Core™ i9/i7 CPUs -1 x Speaker header
support 2933/2800/2666/2400/2133 natively, others will -1 x 10-1 pin System Panel header Networks
run at the maximum transfer rate of DDR4 2666MHz. ASUS Special Features • ASUS 5X PROTECTION III
** Refer to www.asus.com for the Memory QVL - ASUS DIGI+ VRM
(Qualified Vendors Lists). - ASUS LANGuard
Networks
Graphics • 1 x DVI-D - ASUS Overvoltage Protection
• 1 x D-Sub - ASUS SafeSlot Core
*Graphics specifications may vary between CPU types - ASUS Stainless-Steel Back I/O
th
Expansion Slots • Intel® 10 Gen Processors • ASUS Q-Design
-1 x PCIe 3.0 x16 slot (supports x16 mode) - ASUS Q-DIMM
• Intel® B460 Chipset - ASUS Q-Slot ODD &
-2 x PCIe 3.0 x1 slots Software Features <ASUS Exclusive Software>
Storage • Total supports 1 x M.2 slot and 6 x SATA 6Gb/s ports • Armoury Crate ODD & Storage

• Intel® B460 Chipset • AI Suite 3

- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe -Performance And Power Saving Utility
3.0 x4 & SATA modes)* TurboV EVO
- 6 x SATA 6Gb/s ports EPU
- Intel® Optane™ Memory Ready Digi+ VRM
Storage
- Intel® Rapid Storage Technology supports Raid 0,1,5,10 Fan Xpert
* When a device in SATA mode is installed on the M.2 -EZ Update
socket, SATA6G_1 port cannot be used. • ASUS CPU-Z

Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • AI Charger
USB • Rear USB (Total 6 ports) • DAEMON Tools
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) • Norton Anti-virus software (Free Trial for 60 days)
- 2 x USB 2.0 ports (2 x Type-A) • WinRAR
• Front USB (Total 6 ports) <UEFI BIOS>
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • ASUS EZ DIY Server & Workstation Server & Workstation
Gen 1 ports - ASUS CrashFree BIOS 3

- 2 x USB 2.0 headers support additional 4 USB 2.0 ports - ASUS EZ Flash 3
Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC* - ASUS UEFI BIOS EZ Mode
- Jack-detection, Multi-streaming, Front Panel Jack- BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
retasking Manageability • WOL by PME, PXE
- Supports up to 24-Bit/192kHz playback Accessories • Cables
• Audio Features -2 x SATA 6Gb/s cables
- LED-illuminated audio trace path design • Miscellaneous
- Premium Japanese audio capacitors -1 x I/O Shield
- Audio Shielding -1 x M.2 ANCHOR
- Dedicated audio PCB layers • Installation Media
* A chassis with an HD audio module in the front panel is -1 x Support DVD
required to support 7.1-channel audio output. • Documentation Mini / Stick PC
Back Panel I/O Ports • 4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x User manual
• 2 x USB 2.0 ports (2 x Type-A) Operating System • Windows® 10 - 64 bit
• 1 x D-Sub port Form Factor • mATX Form Factor
• 1 x DVI-D port • 8.9 inch x 8.3 inch ( 22.6cm x 21.1cm )
Mini / Stick PC
• 1 x Realtek RTL8111H 1Gb Ethernet port
• 3 x Audio jacks Note: The specifications are subject to changes without notice.
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors • Fan and cooling related
-1 x 4-pin CPU Fan header
-1 x 4-pin Chassis Fan header
• Power related Peripherals Peripherals
