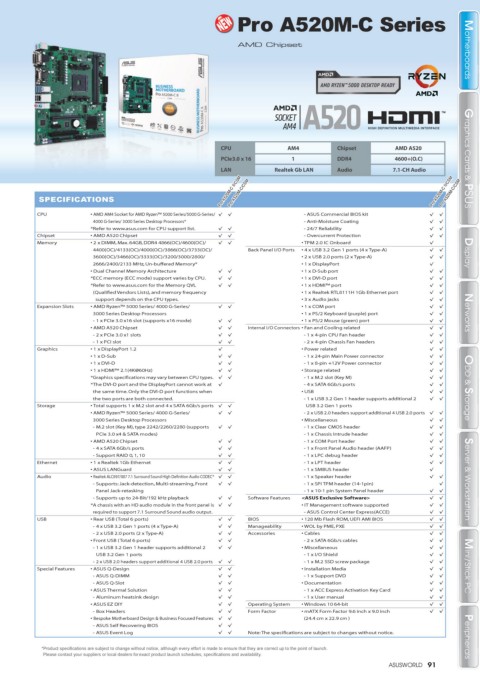

Pro A520M-C Series

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD A520
PCIe3.0 x 16 1 DDR4 4600+(O.C) Graphics Cards & PSUS
LAN Realtek Gb LAN Audio 7.1-CH Audio
Pro A520M-C II/CSM Pro A520M-C II/CSM

SPECIFICATIONS Pro A520M-C/CSM Pro A520M-C/CSM

Graphics Cards & PSUS
CPU • AMD AM4 Socket for AMD Ryzen™ 5000 Series/5000 G-Series/ - ASUS Commercial BIOS kit
4000 G-Series/ 3000 Series Desktop Processors* - Anti-Moisture Coating
*Refer to www.asus.com for CPU support list. - 24/7 Reliability
Chipset • AMD A520 Chipset
Memory • 2 x DIMM, Max. 64GB, DDR4 4866(OC)/4600(OC)/ • TPM 2.0 IC Onboard
4400(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ Back Panel I/O Ports • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/ • 2 x USB 2.0 ports (2 x Type-A) Display
2666/2400/2133 MHz, Un-buffered Memory* • 1 x DisplayPort
- Overcurrent Protection Display
• Dual Channel Memory Architecture • 1 x D-Sub port
*ECC memory (ECC mode) support varies by CPU. • 1 x DVI-D port
*Refer to www.asus.com for the Memory QVL • 1 x HDMI™ port
(Qualified Vendors Lists), and memory frequency • 1 x Realtek RTL8111H 1Gb Ethernet port
support depends on the CPU types. • 3 x Audio jacks
Expansion Slots • AMD Ryzen™ 5000 Series/ 4000 G-Series/ • 1 x COM port
3000 Series Desktop Processors • 1 x PS/2 Keyboard (purple) port Networks
- 1 x PCIe 3.0 x16 slot (supports x16 mode) • 1 x PS/2 Mouse (green) port
• AMD A520 Chipset Internal I/O Connectors • Fan and Cooling related
Networks
- 2 x PCIe 3.0 x1 slots - 1 x 4-pin CPU Fan header
- 1 x PCI slot - 2 x 4-pin Chassis Fan headers
Graphics • 1 x DisplayPort 1.2 • Power related
• 1 x D-Sub - 1 x 24-pin Main Power connector
• 1 x DVI-D - 1 x 8-pin +12V Power connector
• 1 x HDMI™ 2.1(4K@60Hz) • Storage related
*Graphics specifications may vary between CPU types. - 1 x M.2 slot (Key M)
*The DVI-D port and the DisplayPort cannot work at - 4 x SATA 6Gb/s ports
the same time. Only the DVI-D port functions when • USB ODD & Storage ODD & Storage
the two ports are both connected. - 1 x USB 3.2 Gen 1 header supports additional 2
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports USB 3.2 Gen 1 ports
• AMD Ryzen™ 5000 Series/ 4000 G-Series/ - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
3000 Series Desktop Processors • Miscellaneous
- M.2 slot (Key M), type 2242/2260/2280 (supports - 1 x Clear CMOS header
PCIe 3.0 x4 & SATA modes) - 1 x Chassis Intrude header
• AMD A520 Chipset - 1 x COM Port header
- 4 x SATA 6Gb/s ports - 1 x Front Panel Audio header (AAFP)
- Support RAID 0, 1, 10 - 1 x LPC debug header
Ethernet • 1 x Realtek 1Gb Ethernet - 1 x LPT header
• ASUS LANGuard - 1 x SMBUS header
Audio • Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - 1 x Speaker header Server & Workstation Server & Workstation
- Supports: Jack-detection, Multi-streaming, Front - 1 x SPI TPM header (14-1pin)
Panel Jack-retasking - 1 x 10-1 pin System Panel header
- Supports up to 24-Bit/192 kHz playback Software Features <ASUS Exclusive Software>
*A chassis with an HD audio module in the front panel is • IT Management software supported
required to support 7.1 Surround Sound audio output. - ASUS Control Center Express(ACCE)
USB • Rear USB (Total 6 ports) BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) Manageability • WOL by PME, PXE
- 2 x USB 2.0 ports (2 x Type-A) Accessories • Cables
• Front USB (Total 6 ports) - 2 x SATA 6Gb/s cables
- 1 x USB 3.2 Gen 1 header supports additional 2 • Miscellaneous M
USB 3.2 Gen 1 ports - 1 x I/O Shield
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports - 1 x M.2 SSD screw package
Special Features • ASUS Q-Design • Installation Media Mini / Stick PC
- ASUS Q-DIMM - 1 x Support DVD
- ASUS Q-Slot • Documentation
• ASUS Thermal Solution - 1 x ACC Express Activation Key Card
ini / Stick PC
- Aluminum heatsink design - 1 x User manual
• ASUS EZ DIY Operating System • Windows 10 64-bit
- Box Headers Form Factor • mATX Form Factor 9.6 inch x 9.0 inch
• Bespoke Motherboard Design & Business Focused Features (24.4 cm x 22.9 cm )
- ASUS Self Recovering BIOS
- ASUS Event Log Note: The specifications are subject to changes without notice. Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
