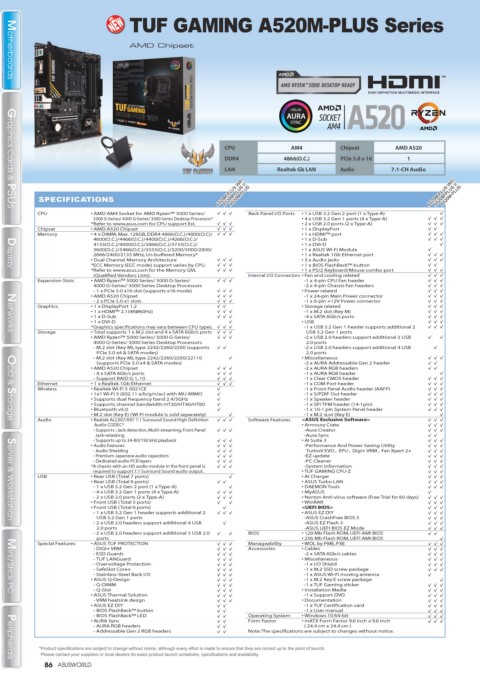

Page 88 - ASUS_WORLD_134_ebook

TUF GAMING A520M-PLUS Series

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD A520
DDR4 4866(O.C.) PCIe 3.0 x 16 1
LAN Realtek Gb LAN Audio 7.1-CH Audio
• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ A520M-PLUS WIFI A520M-PLUS WIFI

A520M-PLUS
5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors* A520M-PLUS
SPECIFICATIONS A520M-PLUS II A520M-PLUS II
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU Back Panel I/O Ports • 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
*Refer to www.asus.com for CPU support list. • 2 x USB 2.0 ports (2 x Type-A)
Chipset • AMD A520 Chipset • 1 x DisplayPort
Memory • 4 x DIMM, Max. 128GB, DDR4 4866(O.C.)/4800(O.C)/ • 1 x HDMI™ port
4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/ • 1 x D-Sub
4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ • 1 x DVI-D
3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/ • 1 x ASUS Wi-Fi Module
2666/2400/2133 MHz, Un-buffered Memory* • 1 x Realtek 1Gb Ethernet port
• Dual Channel Memory Architecture • 3 x Audio jacks
*ECC Memory (ECC mode) support varies by CPU. • 1 x BIOS FlashBack™ button
Display
*Refer to www.asus.com for the Memory QVL • 1 x PS/2 Keyboard/Mouse combo port
Display
(Qualified Vendors Lists). Internal I/O Connectors • Fan and cooling related
Expansion Slots • AMD Ryzen™ 5000 Series/ 5000 G-Series/ -1 x 4-pin CPU Fan header
4000 G-Series/ 3000 Series Desktop Processors -2 x 4-pin Chassis Fan headers
- 1 x PCIe 3.0 x16 slot (supports x16 mode) • Power related
• AMD A520 Chipset -1 x 24-pin Main Power connector
- 2 x PCIe 3.0 x1 slots -1 x 8-pin +12V Power connector
Graphics • 1 x DisplayPort 1.2 • Storage related
• 1 x HDMI™ 2.1(4K@60Hz) -1 x M.2 slot (Key M)
• 1 x D-Sub -4 x SATA 6Gb/s ports
• 1 x DVI-D • USB
*Graphics specifications may vary between CPU types. -1 x USB 3.2 Gen 1 header supports additional 2
Storage • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports USB 3.2 Gen 1 ports
Networks
Networks
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ -2 x USB 2.0 headers support additional 3 USB
4000 G-Series/ 3000 Series Desktop Processors 2.0 ports
- M.2 slot (Key M), type 2242/2260/2280 (supports -2 x USB 2.0 headers support additional 4 USB
PCIe 3.0 x4 & SATA modes) 2.0 ports
- M.2 slot (Key M), type 2242/2260/2280/22110 • Miscellaneous
(supports PCIe 3.0 x4 & SATA modes) -2 x AURA Addressable Gen 2 header
• AMD A520 Chipset -2 x AURA RGB headers
- 4 x SATA 6Gb/s ports -1 x AURA RGB header
- Support RAID 0, 1, 10 -1 x Clear CMOS header
Ethernet • 1 x Realtek 1Gb Ethernet -1 x COM Port header
Wireless • Realtek Wi-Fi 5 8821CE -1 x Front Panel Audio header (AAFP)
• 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO -1 x S/PDIF Out header
• Supports dual frequency band 2.4/5GHz -1 x Speaker header
• Supports channel bandwidth: HT20/HT40/HT80 -1 x SPI TPM header (14-1pin)
• Bluetooth v5.0 -1 x 10-1 pin System Panel header
• M.2 slot (Key E) (Wi-Fi module is sold separately) -1 x M.2 sLot (Key E)
Audio • Realtek ALC887/897 7.1 Surround Sound High Definition Software Features <ASUS Exclusive Software>
ODD & Storage
ODD & Storage
Audio CODEC* • Armoury Crate
- Supports : Jack detection, Multi-streaming, Front Panel -Aura Creator
Jack-retasking -Aura Sync
- Supports up to 24-Bit/192 kHz playback • AI Suite 3
• Audio Features -Performance And Power Saving Utility
- Audio Shielding TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
- Premium Japanese audio capacitors -EZ update
- Dedicated audio PCB layers -PC Cleaner
*A chassis with an HD audio module in the front panel is -System Information
required to support 7.1 Surround Sound audio output. • TUF GAMING CPU-Z
USB • Rear USB (Total 7 ports) • AI Charger
• Rear USB (Total 6 ports) • ASUS Turbo LAN
- 1 x USB 3.2 Gen 2 port (1 x Type-A) • DAEMON Tools
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) • MyASUS
- 2 x USB 2.0 ports (2 x Type-A) • Norton Anti-virus software (Free Trial for 60 days)
• Front USB (Total 5 ports) • WinRAR
• Front USB (Total 6 ports) <UEFI BIOS>
- 1 x USB 3.2 Gen 1 header supports additional 2 • ASUS EZ DIY
USB 3.2 Gen 1 ports -ASUS CrashFree BIOS 3
Server & Workstation
Server & Workstation
- 2 x USB 2.0 headers support additional 4 USB -ASUS EZ Flash 3
2.0 ports -ASUS UEFI BIOS EZ Mode
- 2 x USB 2.0 headers support additional 3 USB 2.0 BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
ports • 256 Mb Flash ROM, UEFI AMI BIOS
Special Features • ASUS TUF PROTECTION Manageability • WOL by PME, PXE
- DIGI+ VRM Accessories • Cables
- ESD Guards -2 x SATA 6Gb/s cables
- TUF LANGuard • Miscellaneous
- Overvoltage Protection -1 x I/O Shield
- SafeSlot Core+ -1 x M.2 SSD screw package
- Stainless-Steel Back I/O -1 x ASUS Wi-Fi moving antenna
• ASUS Q-Design -1 x M.2 Key E screw package
- Q-DIMM -1 x TUF Gaming sticker
- Q-Slot • Installation Media
• ASUS Thermal Solution -1 x Support DVD
Mini / Stick PC
Mini / Stick PC
- VRM heatsink design • Documentation
• ASUS EZ DIY -1 x TUF Certification card
- BIOS FlashBack™ button -1 x User manual
- BIOS FlashBack™ LED Operating System • Windows 10 64-bit
• AURA Sync Form Factor • mATX Form Factor 9.6 inch x 9.6 inch
- AURA RGB headers ( 24.4 cm x 24.4 cm )
- Addressable Gen 2 RGB headers Note: The specifications are subject to changes without notice.
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
